Configure
- Hand force FH(N)
- 50
- 150
- Retaining force F1(N)
- 700
- 1400
- Clamping force F3(N)
- 300
- 600
- Hole arrangement
- 1
- 5
- A(mm)
- 13.5
- 26
- A1(mm)
- 25
- 38
- A2(mm)
- 5.7
- 6
- B(mm)
- 16.8
- 28
- B1(mm)
- 27
- 40
- B4(mm)
- 22
- B5(mm)
- 2
- 2.5
- C(mm)
- 19
- 25
- C1(mm)
- 9.5
- 14
- D(mm)
- 5.2
- 5.5
- H(mm)
- 38.8
- 53
- L=Length(mm)
- 101
- 156
- L1(mm)
- 23
- 38
- Type
- CAD
- 2D
- 3D
- Est. shipping days
- All
- Within 4 working days

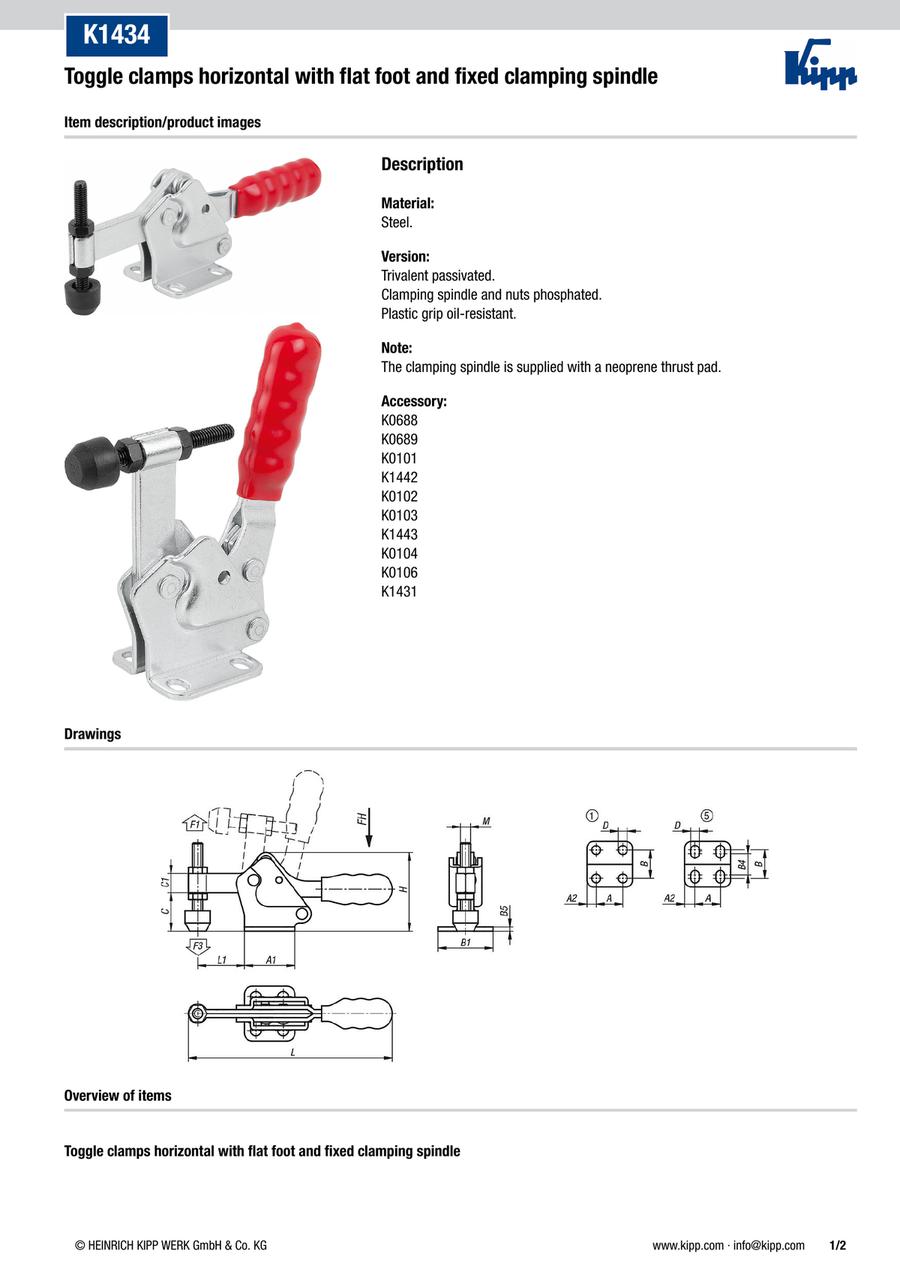

Toggle clamps horizontal with flat foot and fixed clamping spindle (K1434)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
14.13 € ( 16.81 € ) | 4 working days |
17.42 € ( 20.73 € ) | 4 working days |
More Information
Basic information
[Specifications]
・Body Material: Steel
・Surface finish body: galvanised and passivated
・Component material: Plastic
・Component colour: red
