    KIPP

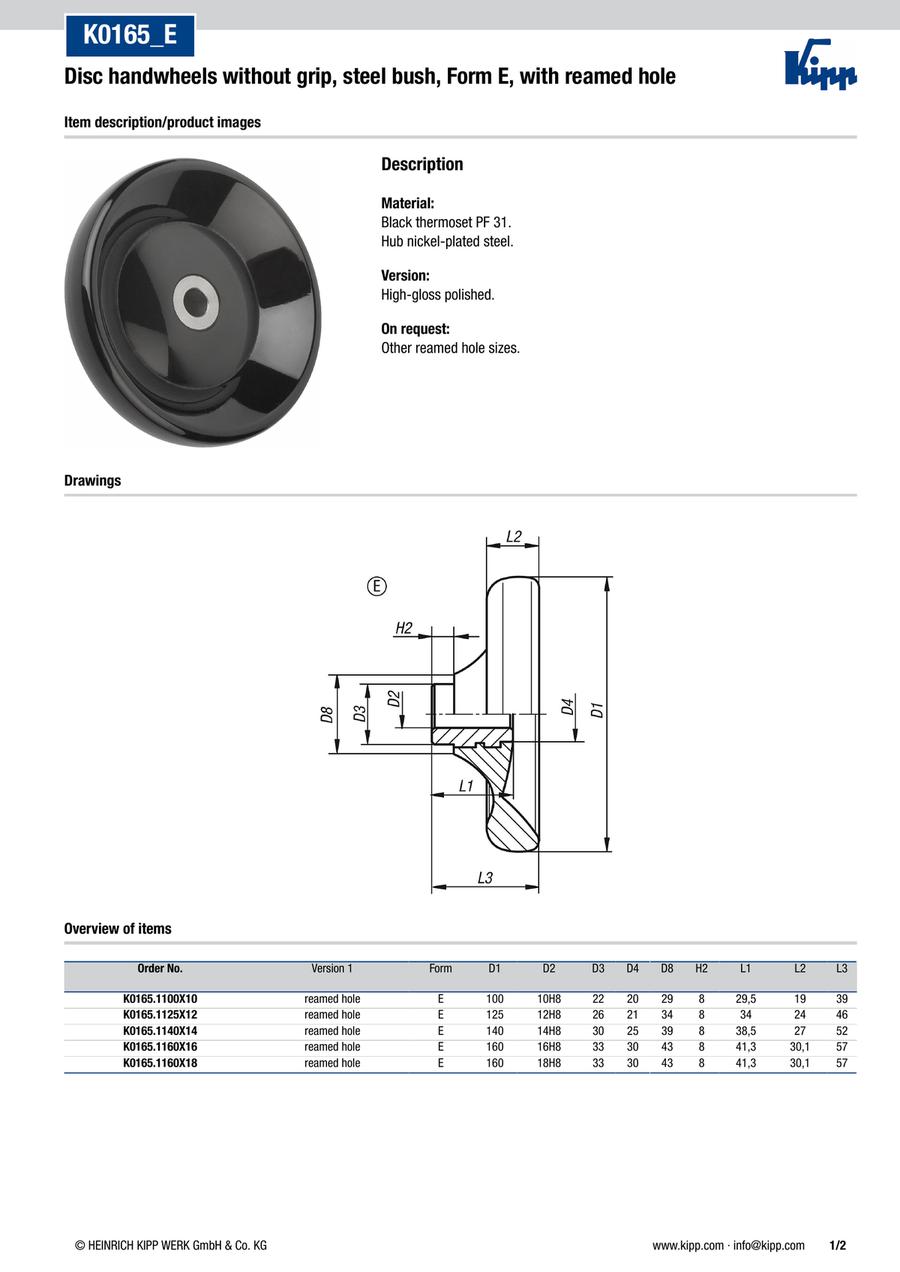

    Disc handwheels without grip, steel bush, Form E, with reamed hole (K0165)

    Disc handwheels without grip, steel bush, Form E, with reamed hole (K0165)

    Part number:

    Still undefined. 5 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K0165.1100X10
    K0165.1125X12
    K0165.1140X14
    K0165.1160X16
    K0165.1160X18

    Outside diameter

    (Ø)

    Height

    (mm)

    Size

    D2=Fastening hole

    (mm)

    D3

    (mm)

    D4

    (mm)

    D8

    (mm)

    L1

    (mm)

    L2

    (mm)

    		Minimum order quantity
    100
    39
    1
    10H8
    22
    20
    29
    29.5
    19
    1 pieces
    125
    46
    2
    12H8
    26
    21
    34
    34
    24
    1 pieces
    140
    52
    3
    14H8
    30
    25
    39
    38.5
    27
    1 pieces
    160
    57
    4
    16H8
    33
    30
    43
    41.3
    30.1
    1 pieces
    160
    57
    4
    18H8
    33
    30
    43
    41.3
    30.1
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    18.95 €
    ( 22.55 € )
    4 working days
    23.74 €
    ( 28.25 € )
    4 working days
    27.34 €
    ( 32.53 € )
    4 working days
    36.75 €
    ( 43.73 € )
    4 working days
    36.75 €
    ( 43.73 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Control element for positioning and adjusting shafts and spindles

    · Application sectors: machine, plant, armament and instrument construction, measuring equipment

    · For opening, closing and operating valves in fittings, machine tools

    · Form E: with reamed hole

    · Hub, steel or stainless steel
