    KIPP

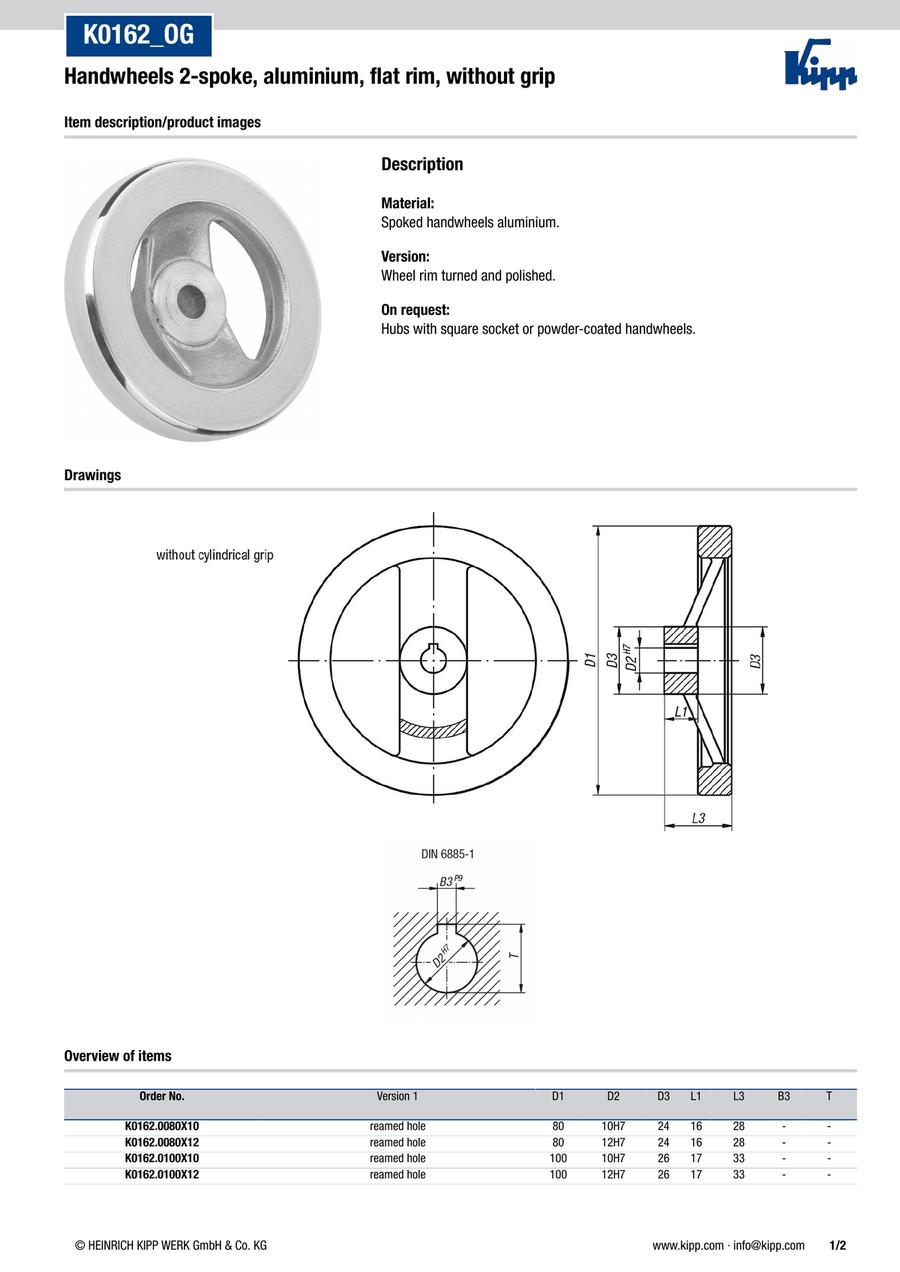

    Handwheels 2-spoke aluminium, flat rim without grip, polished (K0162)

    Handwheels 2-spoke aluminium, flat rim without grip, polished (K0162)

    Part number:

    Still undefined. 24 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K0162.0080X10
    K0162.0080X12
    K0162.0100X10
    K0162.0100X12
    K0162.0125X12
    K0162.0125X14
    K0162.0160X14
    K0162.0160X16
    K0162.0200X18
    K0162.0200X20
    K0162.0250X22
    K0162.0250X26
    K0162.1080X10
    K0162.1080X12
    K0162.1100X10
    K0162.1100X12
    K0162.1125X12
    K0162.1125X14
    K0162.1160X14
    K0162.1160X16
    K0162.1200X18
    K0162.1200X20
    K0162.1250X22
    K0162.1250X26

    Outside diameter

    (Ø)

    Height

    (mm)

    B3

    (mm)

    D2=Fastening hole

    (mm)

    D3

    (mm)

    L1

    (mm)

    T

    (mm)

    		Minimum order quantity
    80
    28
    -
    10H7
    24
    16
    -
    1 pieces
    80
    28
    -
    12H7
    24
    16
    -
    1 pieces
    100
    33
    -
    10H7
    26
    17
    -
    1 pieces
    100
    33
    -
    12H7
    26
    17
    -
    1 pieces
    125
    33.5
    -
    12H7
    31
    18
    -
    1 pieces
    125
    33.5
    -
    14H7
    31
    18
    -
    1 pieces
    160
    39
    -
    14H7
    40
    20
    -
    1 pieces
    160
    39
    -
    16H7
    40
    20
    -
    1 pieces
    200
    45
    -
    18H7
    42
    24
    -
    1 pieces
    200
    45
    -
    20H7
    42
    24
    -
    1 pieces
    250
    51
    -
    22H7
    48
    28
    -
    1 pieces
    250
    51
    -
    26H7
    48
    28
    -
    1 pieces
    80
    28
    3
    10H7
    24
    16
    11.4
    1 pieces
    80
    28
    4
    12H7
    24
    16
    13.8
    1 pieces
    100
    33
    3
    10H7
    26
    17
    11.4
    1 pieces
    100
    33
    4
    12H7
    26
    17
    13.8
    1 pieces
    125
    33.5
    4
    12H7
    31
    18
    13.8
    1 pieces
    125
    33.5
    5
    14H7
    31
    18
    16.3
    1 pieces
    160
    39
    5
    14H7
    40
    20
    16.3
    1 pieces
    160
    39
    5
    16H7
    40
    20
    18.3
    1 pieces
    200
    45
    6
    18H7
    42
    24
    20.8
    1 pieces
    200
    45
    6
    20H7
    42
    24
    22.8
    1 pieces
    250
    51
    6
    22H7
    48
    28
    24.8
    1 pieces
    250
    51
    8
    26H7
    48
    28
    29.3
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    10.42 €
    ( 12.40 € )
    4 working days
    10.42 €
    ( 12.40 € )
    4 working days
    12.60 €
    ( 14.99 € )
    4 working days
    12.60 €
    ( 14.99 € )
    4 working days
    14.61 €
    ( 17.39 € )
    4 working days
    14.61 €
    ( 17.39 € )
    4 working days
    18.77 €
    ( 22.34 € )
    4 working days
    18.77 €
    ( 22.34 € )
    4 working days
    31.08 €
    ( 36.99 € )
    4 working days
    31.08 €
    ( 36.99 € )
    4 working days
    49.16 €
    ( 58.50 € )
    4 working days
    49.16 €
    ( 58.50 € )
    4 working days
    12.19 €
    ( 14.51 € )
    4 working days
    12.19 €
    ( 14.51 € )
    4 working days
    14.35 €
    ( 17.08 € )
    4 working days
    14.35 €
    ( 17.08 € )
    4 working days
    16.48 €
    ( 19.61 € )
    4 working days
    16.48 €
    ( 19.61 € )
    4 working days
    20.71 €
    ( 24.64 € )
    4 working days
    20.71 €
    ( 24.64 € )
    4 working days
    33.27 €
    ( 39.59 € )
    4 working days
    33.27 €
    ( 39.59 € )
    4 working days
    51.97 €
    ( 61.84 € )
    4 working days
    51.97 €
    ( 61.84 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Control element for positioning and adjusting shafts and spindles

    · Application sectors: machine, plant, armament and instrument construction, measuring equipment

    · For opening, closing and operating valves in fittings, machine tools

    · Wheel rim concentricity and axial run-out less than ISO tolerance (IT) 12
