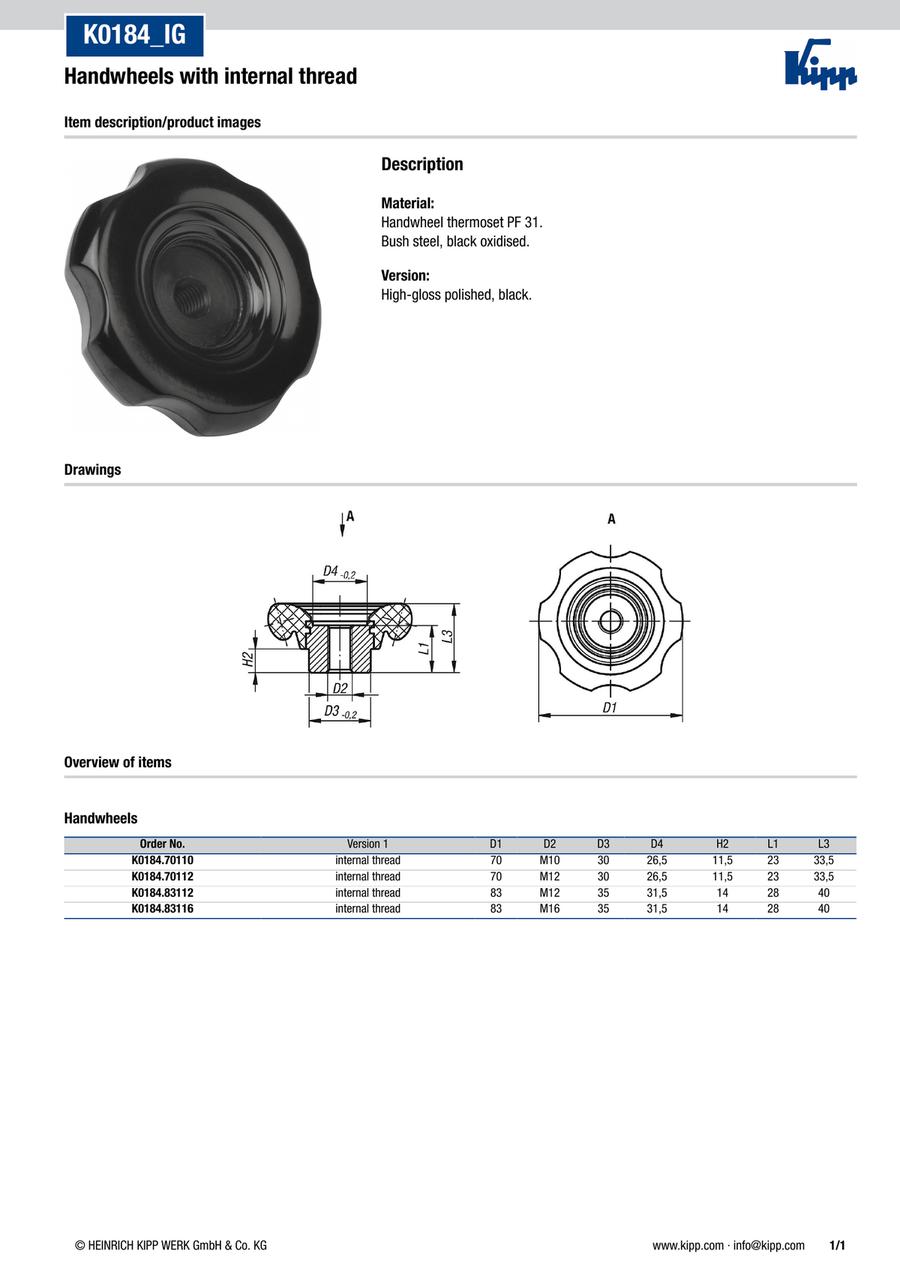

Handwheels with internal thread (K0184)
· Application sectors: machine, plant, armament and instrument construction, measuring equipment
· For opening, closing and operating valves in fittings, machine tools
· Version: internal thread
· high-gloss polished
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0184.70110 |
| K0184.70112 |
| K0184.83112 |
| K0184.83116 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outside diameter (Ø) | Height (mm) | D2=Fastening hole | D3 (mm) | D4 (mm) | H2 (mm) | L1 (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
9.83 € | 1 | 4 Days | 70 | 33.5 | M10 | 30 | 26.5 | 11.5 | 23 | ||
9.83 € | 1 | 4 Days | 70 | 33.5 | M12 | 30 | 26.5 | 11.5 | 23 | ||
12.89 € | 1 | 4 Days | 83 | 40 | M12 | 35 | 31.5 | 14 | 28 | ||
12.89 € | 1 | 4 Days | 83 | 40 | M16 | 35 | 31.5 | 14 | 28 |
Loading...
Basic information
| Main material | Duroplast | Version 1 | internal thread |
|---|
Configure
Basic Attributes
-
Outside diameter(Ø)
-
Height(mm)
-
D2=Fastening hole
- M10
- M12
- M16
-
D3(mm)
-
D4(mm)
-
H2(mm)
-
L1(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
