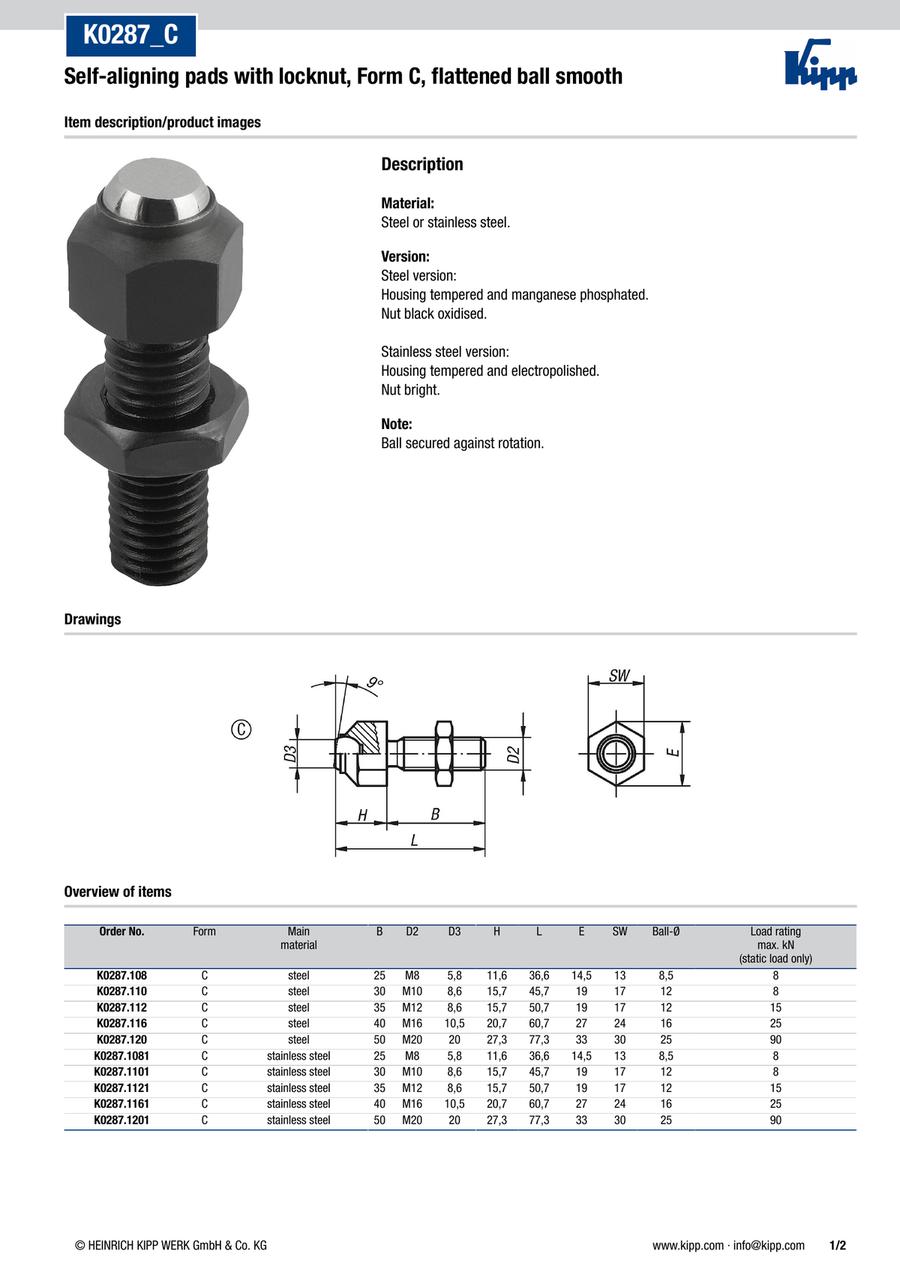

Self-aligning pads with locknut, Form C, flattened ball, smooth (K0287)

Basic Attributes

• Main material

  • Stainless steel
  • Steel

  Clear

• Surface finish body

  • tempered and electropolished
  • tempered and manganese phosphate treated

  Clear

• Main colour

  • electropolished
  • manganese-phosphated

  Clear

• Component material

  • Stainless steel
  • Steel

  Clear

• Material (mount surface / support surface)

  • Stainless steel
  • Steel

  Clear

• B=Thread length(mm)

  • 25
  • 30
  • 35
  • 40
  • 50

  Clear

• D1=Outside diameter(mm)

  • 14.5
  • 19
  • 27
  • 33

  Clear

• D2=Thread

  • M8
  • M10
  • M12
  • M16
  • M20

  Clear

• D3(mm)

  • 5.8
  • 8.6
  • 10.5
  • 20

  Clear

• E(mm)

  • 14.5
  • 19
  • 27
  • 33

  Clear

• H=Height(mm)

  • 11.6
  • 15.7
  • 20.7
  • 27.3

  Clear

• L(mm)

  • 36.6
  • 45.7
  • 50.7
  • 60.7
  • 77.3

  Clear

• Ball Ø(mm)

  • 8.5
  • 12
  • 16
  • 25

  Clear

• SW(mm)

  • 13
  • 17
  • 24
  • 30

  Clear

• Load rating max. (static load only)(kN)

  • 8
  • 15
  • 25
  • 90

  Clear

• Type

  Clear

• Filter by CAD data type

  • 2D
  • 3D

  Clear
