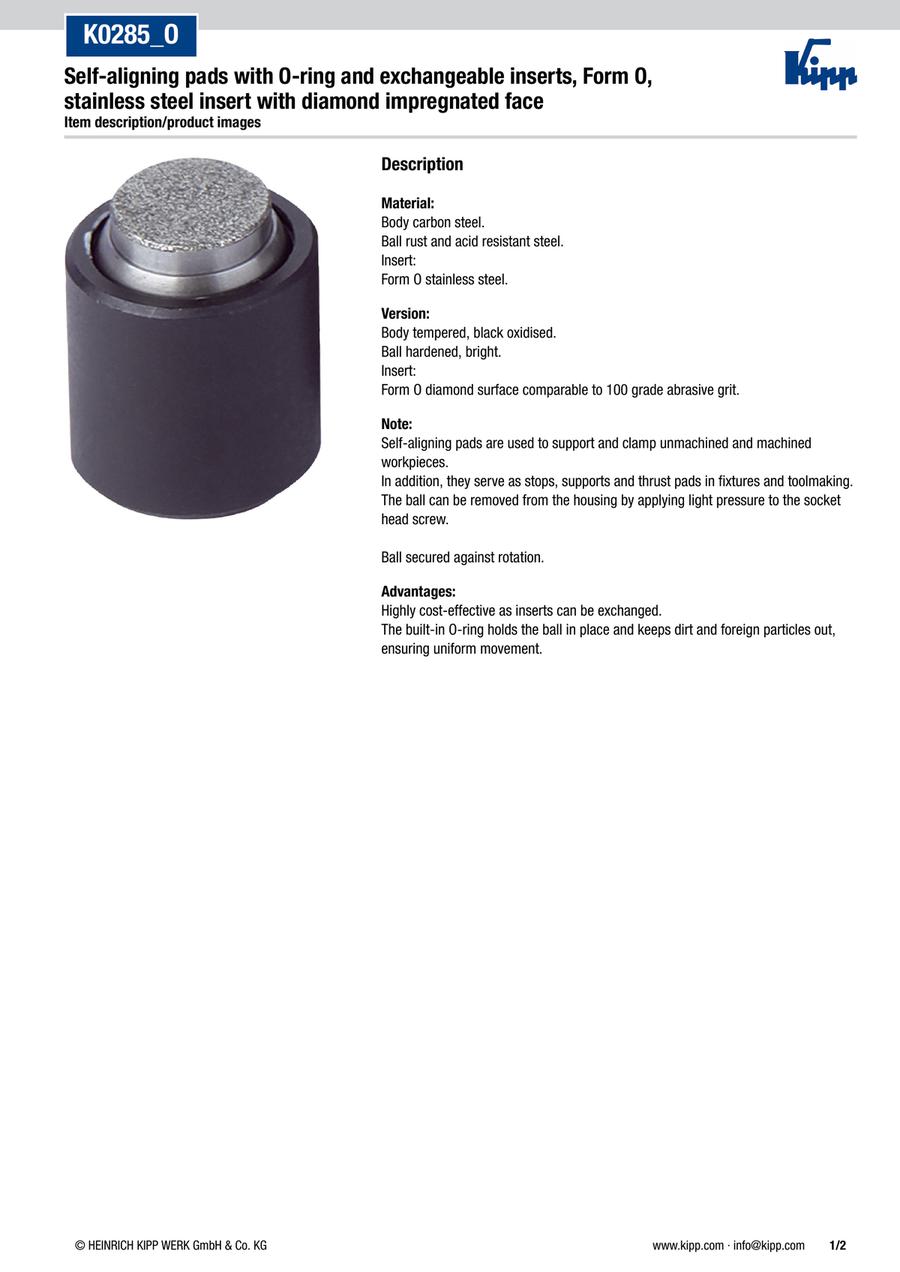

Self-aligning pads with O-ring and exchangeable inserts, Form O, stainless steel insert with diamond impregnated face (K0285)
· Application sectors: machine and fixture construction, assembly
· Ball secured against rotation
· ball point hardened
· O-ring for protection against dirt and foreign particles
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0285.517X022 |
| K0285.519X024 |
| K0285.524X028 |
| K0285.530X030 |
| K0285.536X036 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D1=Outside diameter (mm) | D2=Thread | D3 (mm) | H=Height (mm) | T=thread depth (mm) | Ball Ø (mm) | Load rating max. (static load only) (kN) | Order No. for stainless steel insert | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
72.61 € | 1 | 4 Days | 17 | M6 | 10 | 22 | 7 | 13 | 28 | K0385.10105 | ||
80.40 € | 1 | 4 Days | 19 | M8 | 12 | 24 | 8 | 15 | 39 | K0385.12105 | ||
88.11 € | 1 | 4 Days | 24 | M10 | 16 | 28 | 8 | 20 | 58 | K0385.16105 | ||
100.07 € | 1 | 4 Days | 30 | M12 | 20 | 30 | 9 | 23 | 95 | K0385.20105 | ||
119.95 € | 1 | 4 Days | 36 | M12 | 25 | 36 | 11 | 28 | 136 | K0385.25105 |
Loading...
Basic information
| Main material | High carbon steel | Surface finish body | tempered, black oxidised | Component material | Diamond |
|---|---|---|---|---|---|
| Surface finish component | hardened and bright | Material (mount surface / support surface) | Diamond | Form | O |
| H1(mm) | 4 | H2(mm) | 10 |
Configure
Basic Attributes
-
D1=Outside diameter(mm)
-
D2=Thread
-
D3(mm)
-
H=Height(mm)
-
T=thread depth(mm)
-
Ball Ø(mm)
-
Load rating max. (static load only)(kN)
-
Order No. for stainless steel insert
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
