    KIPP

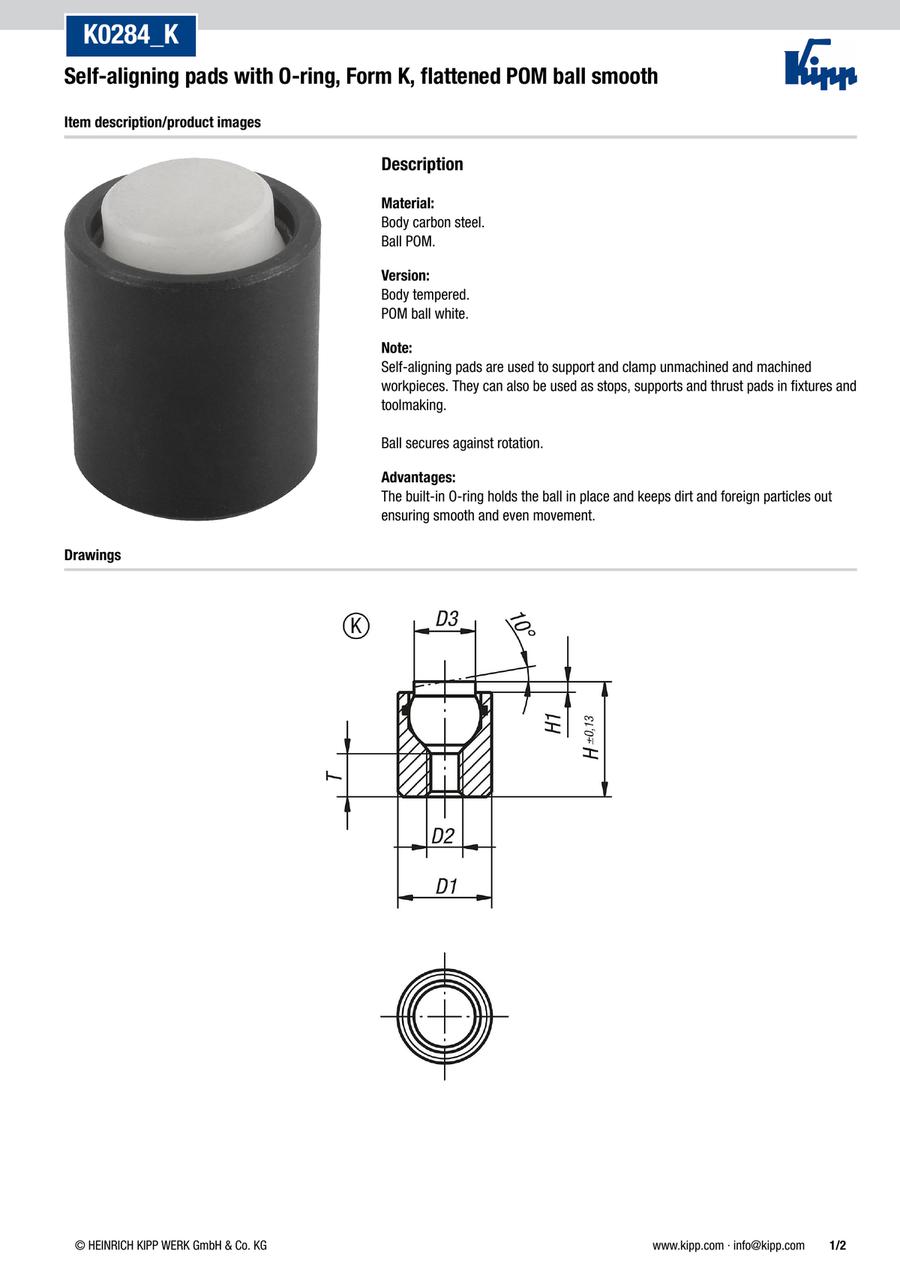

    Self-aligning pads with O-ring, Form K, flattened POM ball, smooth (K0284)

    Self-aligning pads with O-ring, Form K, flattened POM ball, smooth (K0284)

    Part number:

    Still undefined. 4 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K0284.704X012
    K0284.704X025
    K0284.705X016
    K0284.705X025

    D1=Outside diameter

    (mm)

    D2=Thread

    D3

    (mm)

    H=Height

    (mm)

    T=thread depth

    (mm)

    Ball Ø

    (mm)

    Load rating max. (static load only)

    (kN)

    		Minimum order quantity
    10
    M4
    6
    12
    4.5
    7
    2
    1 pieces
    10
    M4
    6
    25
    12
    7
    2
    1 pieces
    13
    M5
    8.5
    16
    5
    10
    4
    1 pieces
    13
    M5
    8.5
    25
    12
    10
    4
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    36.98 €
    ( 44.01 € )
    4 working days
    38.05 €
    ( 45.28 € )
    4 working days
    41.22 €
    ( 49.05 € )
    4 working days
    42.41 €
    ( 50.47 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Serve as supports, stops and thrust pads

    · Application sectors: machine and fixture construction, assembly

    · O-ring for protection against dirt and foreign particles
