    KIPP

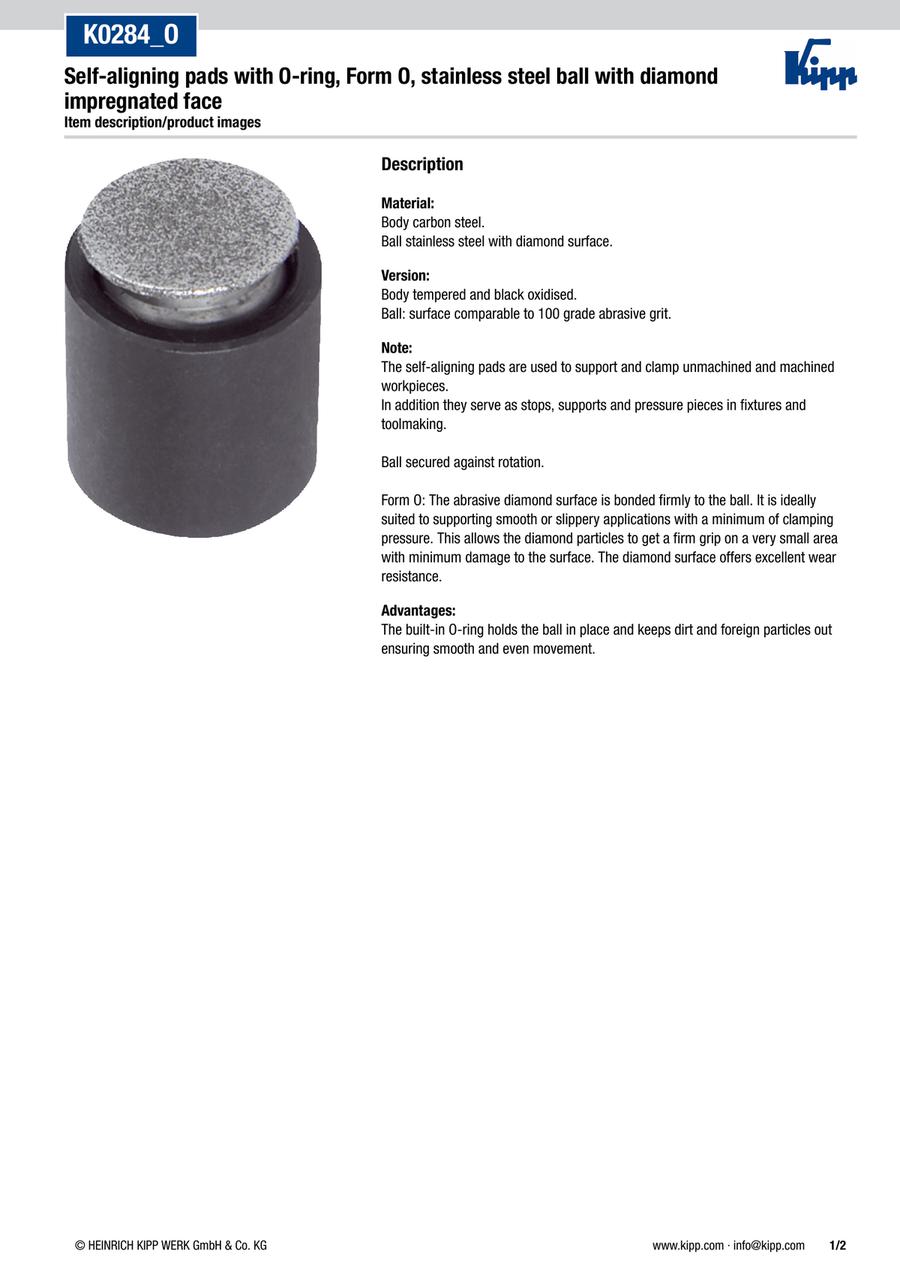

    Self-aligning pads with O-ring, Form O, stainless steel ball with diamond impregnated face (K0284)

    Self-aligning pads with O-ring, Form O, stainless steel ball with diamond impregnated face (K0284)

    Part number:

    Still undefined. 7 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K0284.504X012
    K0284.504X025
    K0284.505X017
    K0284.505X026
    K0284.506X021
    K0284.508X024
    K0284.510X028

    D1=Outside diameter

    (mm)

    D2=Thread

    D3

    (mm)

    H=Height

    (mm)

    H1

    (mm)

    T=thread depth

    (mm)

    W

    (mm)

    Ball Ø

    (mm)

    Load rating max. (static load only)

    (kN)

    		Minimum order quantity
    10
    M4
    8
    12.5
    2
    3.5
    28
    7
    11.5
    1 pieces
    10
    M4
    8
    25.5
    2
    9
    28
    7
    11.5
    1 pieces
    13
    M5
    11
    17.5
    3
    6.5
    28
    10
    19.8
    1 pieces
    13
    M5
    11
    26.5
    3
    9
    28
    10
    19.8
    1 pieces
    17
    M6
    14
    21
    3
    7.5
    28
    13
    27.4
    1 pieces
    19
    M8
    19
    24
    4
    8.5
    24
    15
    38.6
    1 pieces
    24
    M10
    21
    28
    4
    9
    24
    20
    58.3
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    42.88 €
    ( 51.03 € )
    4 working days
    45.20 €
    ( 53.79 € )
    4 working days
    46.06 €
    ( 54.81 € )
    4 working days
    47.22 €
    ( 56.19 € )
    4 working days
    49.78 €
    ( 59.24 € )
    4 working days
    57.39 €
    ( 68.29 € )
    4 working days
    63.08 €
    ( 75.07 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Serve as supports, stops and thrust pads

    · Application sectors: machine and fixture construction, assembly

    · Form O: diamond surfaces offer excellent wear resistance

    · O-ring for protection against dirt and foreign particles
