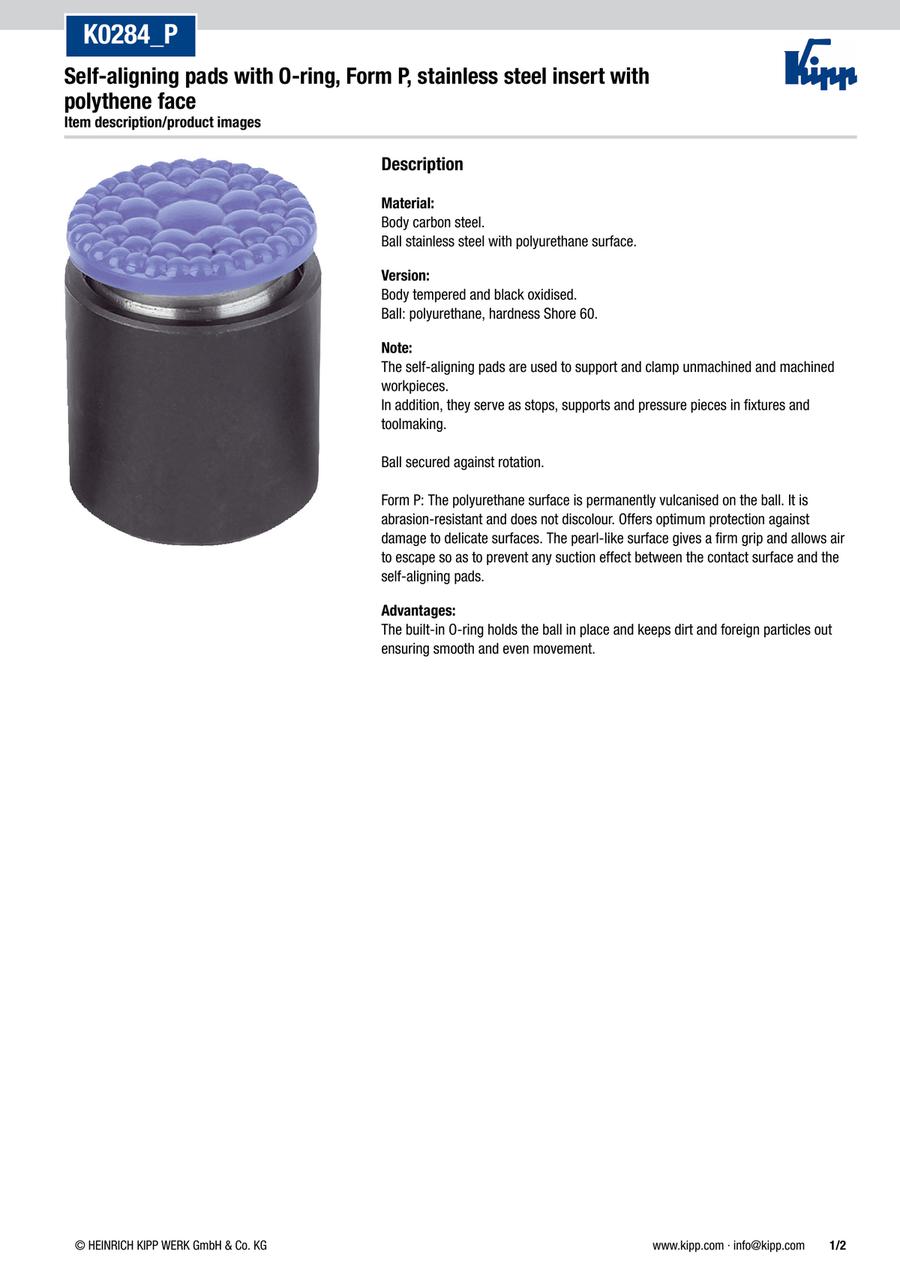

    Self-aligning pads with O-ring, Form P, stainless steel insert with polythene face (K0284)

    Part number:

    Still undefined. 7 possible part numbers found.
    Quantity:

    Part number list

    Number of items

    D1=Outside diameter

    (mm)

    D2=Thread

    D3

    (mm)

    H=Height

    (mm)

    H1

    (mm)

    T=thread depth

    (mm)

    W

    (mm)

    Ball Ø

    (mm)

    Minimum order quantity
    10
    M4
    10
    14.5
    4
    3.5
    28
    7
    1 pieces
    10
    M4
    10
    27.5
    4
    9
    28
    7
    1 pieces
    13
    M5
    13
    19.5
    5
    6.5
    28
    10
    1 pieces
    13
    M5
    13
    28.5
    5
    9
    28
    10
    1 pieces
    17
    M6
    16
    23
    5
    7.5
    28
    13
    1 pieces
    19
    M8
    21
    26
    6
    8.5
    24
    15
    1 pieces
    24
    M10
    23
    30
    6
    9
    24
    20
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    41.69 €
    ( 49.61 € )
    4 working days
    44.02 €
    ( 52.38 € )
    4 working days
    43.91 €
    ( 52.25 € )
    4 working days
    45.13 €
    ( 53.70 € )
    4 working days
    47.50 €
    ( 56.52 € )
    4 working days
    54.19 €
    ( 64.49 € )
    4 working days
    62.96 €
    ( 74.92 € )
    4 working days

    More Information

    Basic information

    · Serve as supports, stops and thrust pads

    · Application sectors: machine and fixture construction, assembly

    · Form P: optimum protection against damage to sensitive surfaces

    · O-ring for protection against dirt and foreign particles
