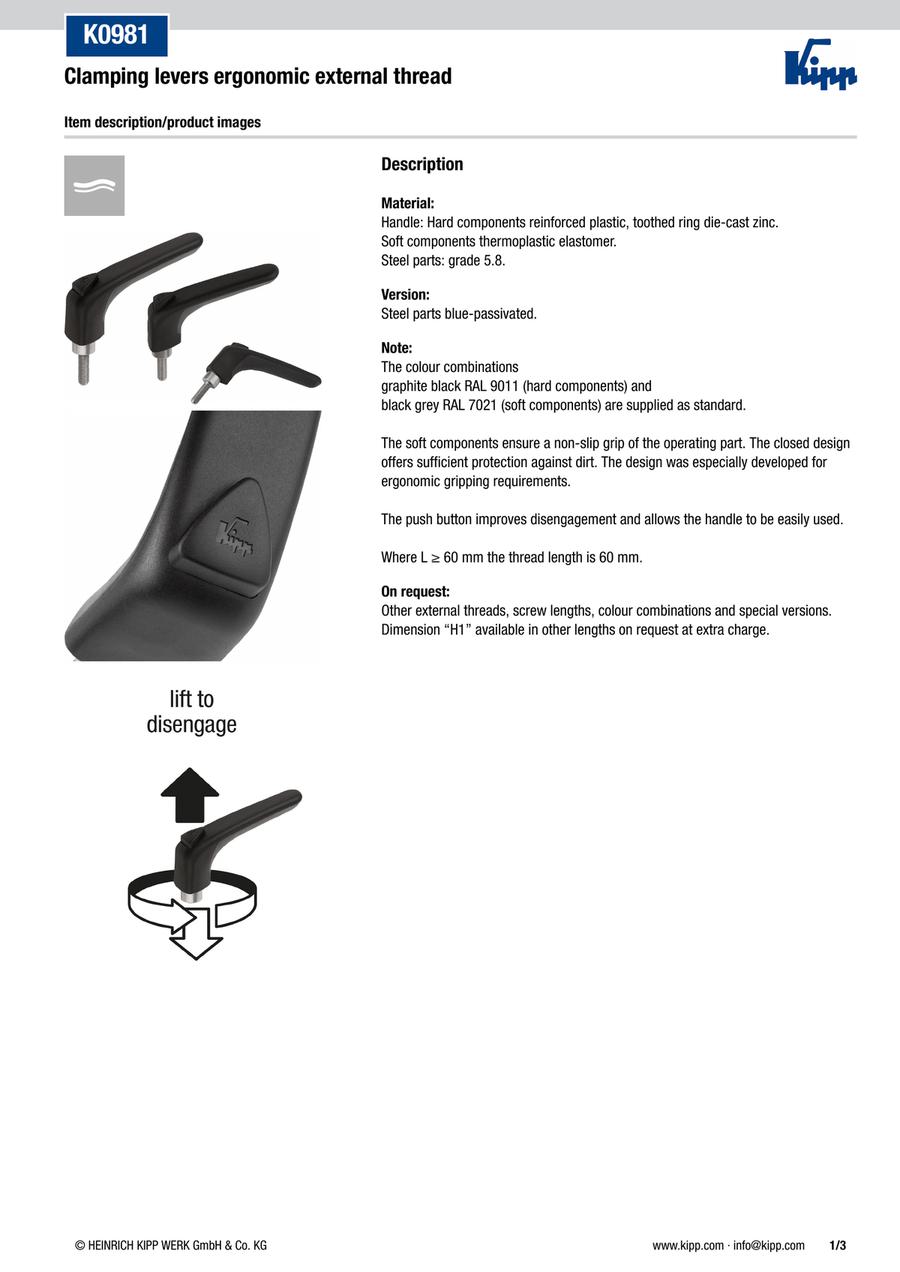

Clamping levers ergonomic external thread (K0981)
· Handle consists of soft and hard components
· Application fields: plant and equipment construction, interior design, sport and rehabilitation sectors
· Push button makes disengaging and handling easier
· SYMPA touch: optimum grip and hold
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | X=thread | L=thread length (mm) | |
|---|---|---|---|---|---|---|
8.65 € | 1 | 4 Days | M8 | 15 | ||
8.65 € | 1 | 4 Days | M8 | 20 | ||
8.65 € | 1 | 4 Days | M8 | 25 | ||
8.65 € | 1 | 4 Days | M8 | 30 | ||
9.26 € | 1 | 4 Days | M8 | 35 | ||
9.26 € | 1 | 4 Days | M8 | 40 | ||
9.26 € | 1 | 4 Days | M8 | 45 | ||
9.26 € | 1 | 4 Days | M8 | 50 | ||
9.26 € | 1 | 4 Days | M8 | 55 | ||
9.26 € | 1 | 4 Days | M8 | 60 | ||
8.65 € | 1 | 4 Days | M10 | 15 | ||
8.65 € | 1 | 4 Days | M10 | 20 | ||
8.65 € | 1 | 4 Days | M10 | 25 | ||
8.65 € | 1 | 4 Days | M10 | 30 | ||
9.26 € | 1 | 4 Days | M10 | 35 | ||
9.26 € | 1 | 4 Days | M10 | 40 | ||
9.26 € | 1 | 4 Days | M10 | 45 | ||
9.26 € | 1 | 4 Days | M10 | 50 | ||
9.26 € | 1 | 4 Days | M10 | 55 | ||
9.26 € | 1 | 4 Days | M10 | 60 |
Loading...
Basic information
| Rotating Radius R(mm) | 88.5 | Main Body Material | Other | Main material | Plastic |
|---|---|---|---|---|---|
| Main colour | graphite black RAL 9011 | Component material | Steel | Component colour | black grey RAL 7021 |
| Size | 3 | A(mm) | 88.5 | A1=Handle length(mm) | 99.5 |
| B(mm) | 20 | D(mm) | 16 | D1(mm) | 30.5 |
| H(mm) | 55.6 | H1(mm) | 10 | H2(mm) | 37.3 |
| H3=handle height(mm) | 76.5 | H4(mm) | 81 | No. of teeth | 22 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
