Spring plungers with head (K0336)

Spring plungers with head (K0336)

KIPP

KIPP

· Quick indexing, positioning and fixating of components

· Application sectors: machine and plant construction, trade, domestic

· Universally applicable and easy to mount

· ball point hardened

· Steel or stainless steel ball.

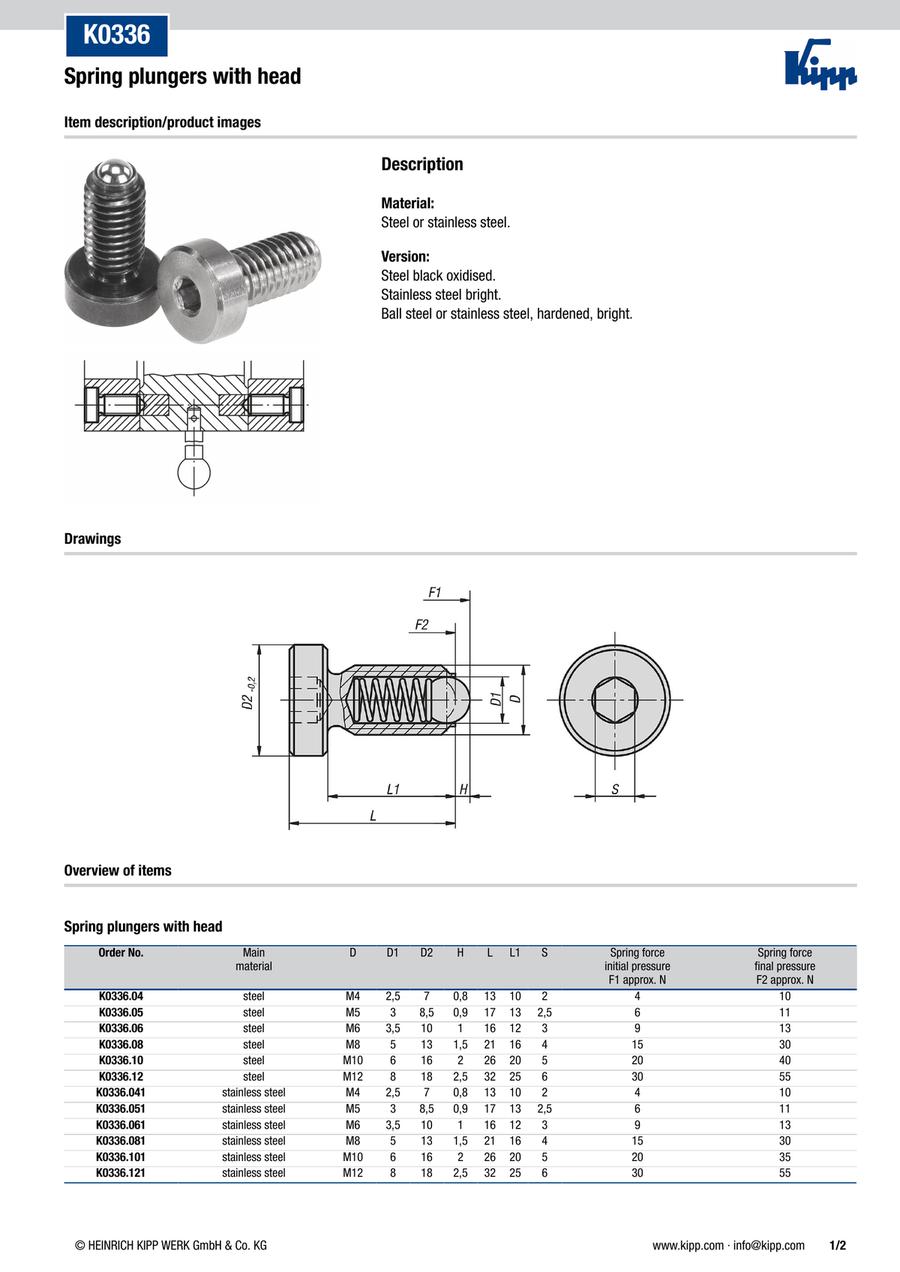

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
K0336.04
K0336.05
K0336.06
K0336.08
K0336.041
K0336.051
K0336.061
K0336.081
K0336.10
K0336.12
K0336.101
K0336.121
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Initial Load
(N) 		Max. Load
(N) 		Main material Component material D=Outside diameter
(mm) 		D1
(mm) 		D2
(mm) 		H
(mm) 		L=Length
(mm) 		L1
(mm) 		S
(mm)

2.86 €

10 4 Days 410steelball steelM42.570.813102

2.93 €

10 4 Days 611steelball steelM538.50.917132.5

2.99 €

10 4 Days 913steelball steelM63.510116123

3.43 €

10 4 Days 1530steelball steelM85131.521164

4.72 €

5 4 Days 410stainless steelball stainless steelM42.570.813102

4.93 €

5 4 Days 611stainless steelball stainless steelM538.50.917132.5

5.03 €

5 4 Days 913stainless steelball stainless steelM63.510116123

6.56 €

5 4 Days 1530stainless steelball stainless steelM85131.521164

3.97 €

10 4 Days 2040steelball steelM10616226205

4.20 €

10 4 Days 3055steelball steelM128182.532256

7.56 €

5 4 Days 2035stainless steelball stainless steelM10616226205

8.82 €

5 4 Days 3055stainless steelball stainless steelM128182.532256

Loading...

  1. 1

Basic information

Version 1 with head

Configure

Clear all

12Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Initial Load(N)

    • 4
    • 6
    • 9
    • 15
    • 20
    • 30

    Clear

  • Main material

    • stainless steel
    • steel

    Clear

  • Component material

    • ball stainless steel
    • ball steel

    Clear

  • D=Outside diameter(mm)

    • M4
    • M5
    • M6
    • M8
    • M10
    • M12

    Clear

  • D1(mm)

    • 2.5
    • 3
    • 3.5
    • 5
    • 6
    • 8

    Clear

  • D2(mm)

    • 7
    • 8.5
    • 10
    • 13
    • 16
    • 18

    Clear

  • H(mm)

    • 0.8
    • 0.9
    • 1
    • 1.5
    • 2
    • 2.5

    Clear

  • L=Length(mm)

    • 13
    • 16
    • 17
    • 21
    • 26
    • 32

    Clear

  • L1(mm)

    • 10
    • 12
    • 13
    • 16
    • 20
    • 25

    Clear

  • S(mm)

    • 2
    • 2.5
    • 3
    • 4
    • 5
    • 6

    Clear

  • Filter by CAD data type

    • 2D
    • 3D

    Clear

Filter by standard shipping days

    • All
    • 4 Days or Less

    Reset
