    KIPP

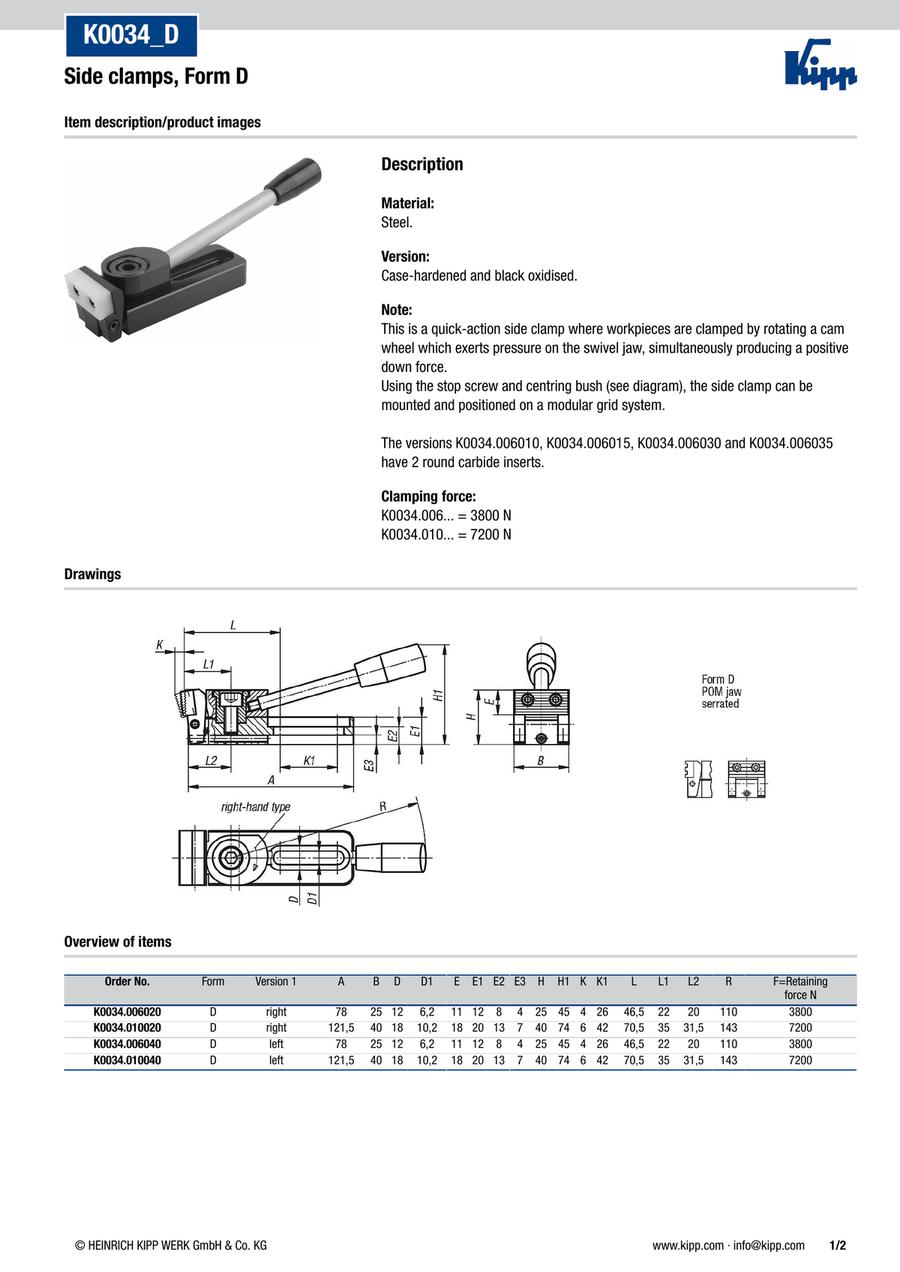

    Side clamps, Form D (K0034)

    Side clamps, Form D (K0034)

    Part number:

    Still undefined. 4 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    K0034.006020
    K0034.006040
    K0034.010020
    K0034.010040

    Version 1

    B=Width

    (mm)

    D1

    (mm)

    H=Height

    (mm)

    H1

    (mm)

    L1

    (mm)

    L2

    (mm)

    A=Length

    (mm)

    D

    (mm)

    E

    (mm)

    E1

    (mm)

    E2

    (mm)

    E3

    (mm)

    K

    (mm)

    K1

    (mm)

    L

    (mm)

    R

    (mm)

    F=Retaining force

    (N)

    		Minimum order quantity
    right
    25
    6.2
    25
    45
    22
    20
    78
    12
    11
    12
    8
    4
    4
    26
    46.5
    110
    3800
    1 pieces
    left
    25
    6.2
    25
    45
    22
    20
    78
    12
    11
    12
    8
    4
    4
    26
    46.5
    110
    3800
    1 pieces
    right
    40
    10.2
    40
    74
    35
    31.5
    121.5
    18
    18
    20
    13
    7
    6
    42
    70.5
    143
    7200
    1 pieces
    left
    40
    10.2
    40
    74
    35
    31.5
    121.5
    18
    18
    20
    13
    7
    6
    42
    70.5
    143
    7200
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    150.17 €
    ( 178.70 € )
    4 working days
    152.95 €
    ( 182.01 € )
    4 working days
    216.28 €
    ( 257.37 € )
    4 working days
    216.28 €
    ( 257.37 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Mountable directly on machine tables

    · With positive down force

    · Flexible application

    · Clamping jaw case-hardened

    · Manual actuation
