KIPP

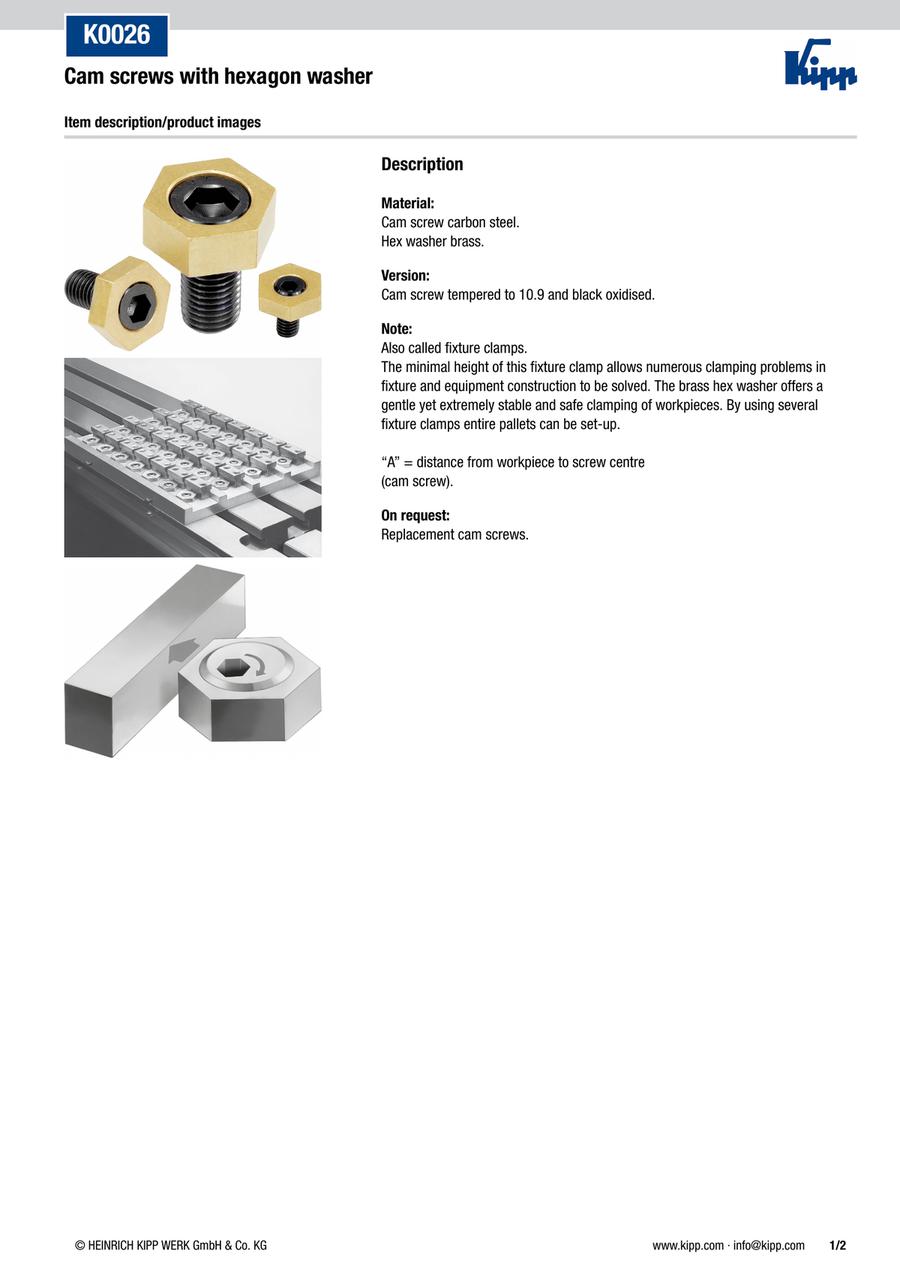

Cam screws with hexagon washer (K0026)

Cam screws with hexagon washer (K0026)

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    K0026.04
    K0026.06
    K0026.08
    K0026.10
    K0026.12
    K0026.16

    A

    (mm)

    D=Thread

    H

    (mm)

    L=Thread length

    (mm)

    S1 (travel)

    (mm)

    SW

    (mm)

    SW1

    (mm)

    Tightening torque max.

    (Nm)

    Clamping force

    (kN)

    		Minimum order quantity
    3.8
    M4
    2.8
    10
    0.8
    8
    3
    2.2
    0.9
    1 pieces
    7.8
    M6
    4.8
    12
    1
    16
    4
    8.5
    3.4
    1 pieces
    10.2
    M8
    4.8
    15
    1
    20.6
    5
    11.3
    3.6
    1 pieces
    10.2
    M10
    6.4
    20
    1.6
    20.6
    7
    28.06
    9
    1 pieces
    12.7
    M12
    9.5
    25
    2
    25.4
    8
    88
    18
    1 pieces
    15
    M16
    12.7
    30
    2.5
    30.2
    12
    135
    27
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    7.08 €
    ( 8.43 € )
    4 working days
    7.57 €
    ( 9.01 € )
    4 working days
    9.48 €
    ( 11.28 € )
    4 working days
    8.52 €
    ( 10.14 € )
    4 working days
    11.83 €
    ( 14.08 € )
    4 working days
    17.62 €
    ( 20.97 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Very low design

    · Ideal for a range of clamping tasks

    · Gentle material clamping

    · Compact

    · Robust
