KIPP

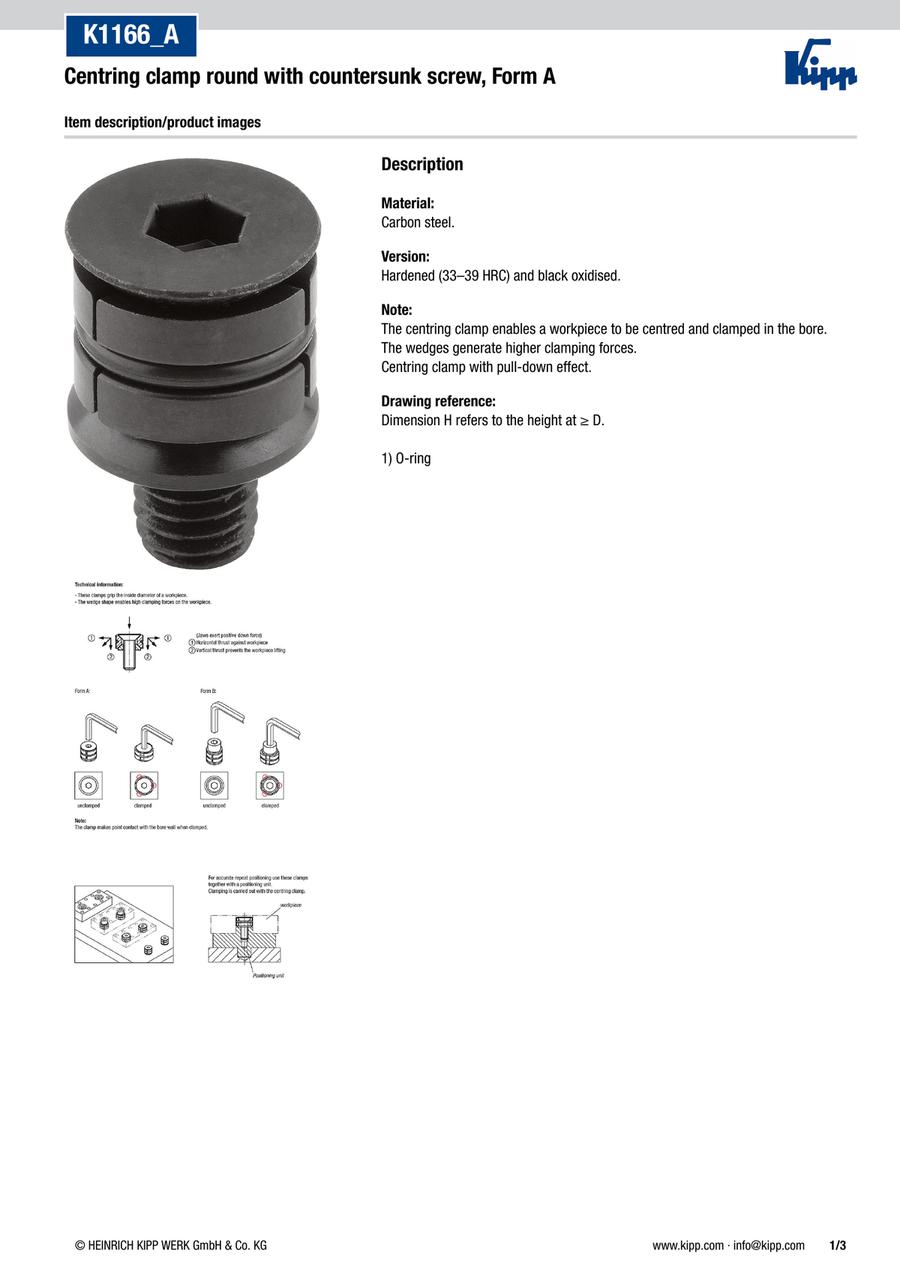

Centring clamp round with countersunk screw, Form A (K1166)

Centring clamp round with countersunk screw, Form A (K1166)

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    K1166.10804
    K1166.11005
    K1166.11206
    K1166.11608

    D=Diameter min.

    (mm)

    D=Diameter max.

    (mm)

    D=Thread

    H=Height

    (mm)

    H1

    (mm)

    L

    (mm)

    SW

    (mm)

    Tightening torque

    (Nm)

    Clamping force max.

    (kN)

    		Minimum order quantity
    8
    10.3
    M4x12
    5.5
    0.9
    7.3
    2.5
    2.1
    0.9
    1 pieces
    10
    12.3
    M5X15
    6.4
    1.1
    9.1
    3
    4.3
    1.5
    1 pieces
    12
    16.3
    M6X18
    8.6
    1.3
    11.2
    4
    7.3
    2.1
    1 pieces
    16
    22
    M8X25
    11.5
    1.6
    16.2
    5
    18
    4
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    23.86 €
    ( 28.39 € )
    4 working days
    23.86 €
    ( 28.39 € )
    4 working days
    27.88 €
    ( 33.18 € )
    4 working days
    30.51 €
    ( 36.31 € )
    4 working days
  • 1

    • More Information

    Basic information

    · For centring and clamping

    · With positive down force

    · For clamping low-profile workpieces

    · Specifically for small components
