KIPP

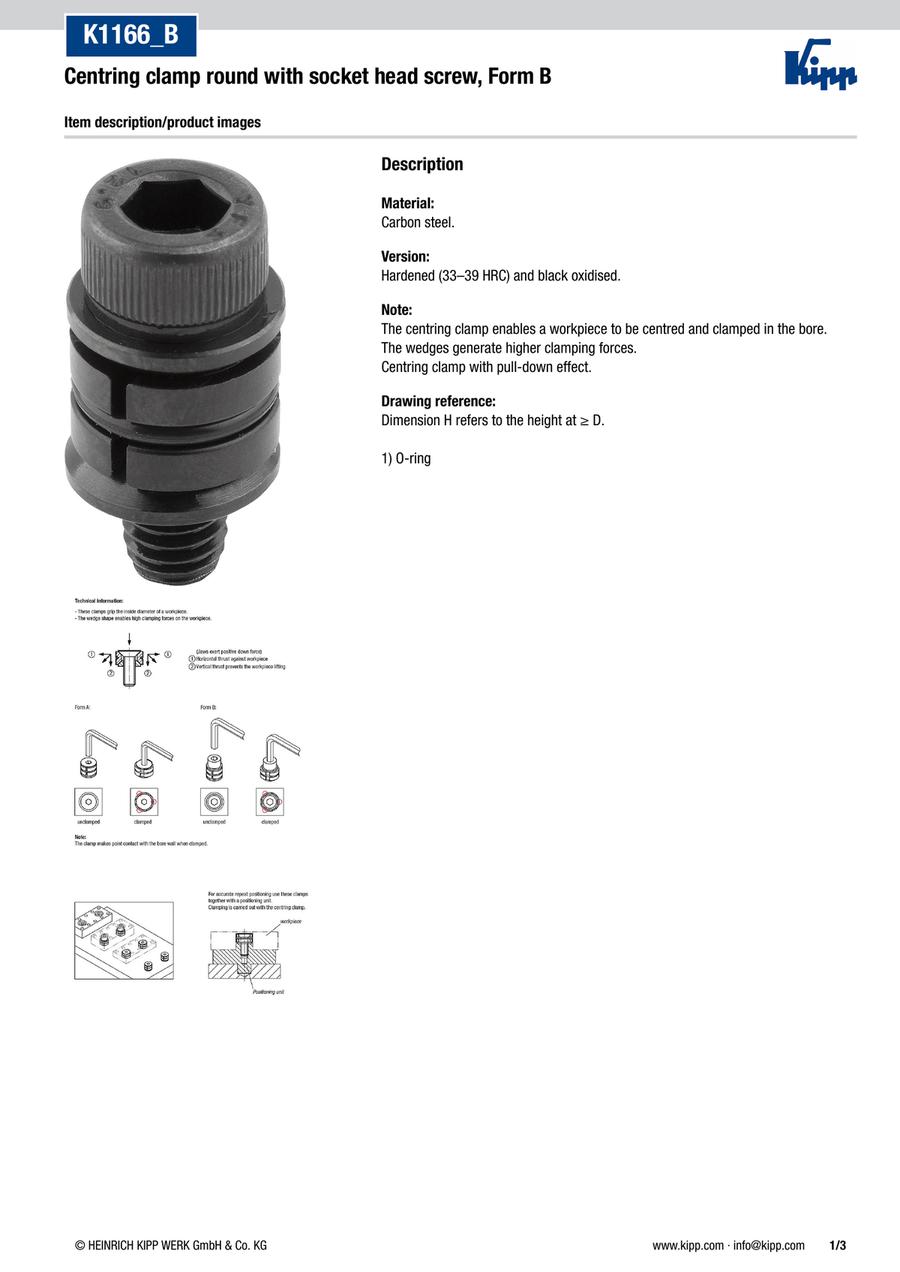

Centring clamp round with socket head screw, Form B (K1166)

Centring clamp round with socket head screw, Form B (K1166)

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    K1166.20804
    K1166.21005
    K1166.21206
    K1166.21608

    D=Diameter min.

    (mm)

    D=Diameter max.

    (mm)

    D=Thread

    H=Height

    (mm)

    H1

    (mm)

    L

    (mm)

    SW

    (mm)

    Tightening torque

    (Nm)

    Clamping force max.

    (kN)

    		Minimum order quantity
    8
    10.3
    M4x12
    5.5
    5.1
    7.1
    3
    2.7
    1.5
    1 pieces
    10
    12.3
    M5X15
    6.4
    6.2
    9
    4
    5.4
    2.5
    1 pieces
    12
    16.3
    M6X18
    8.6
    7.9
    10.6
    5
    9.1
    5
    1 pieces
    16
    22
    M8X25
    11.5
    10.4
    15.4
    6
    25
    9
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    27.88 €
    ( 33.18 € )
    4 working days
    27.88 €
    ( 33.18 € )
    4 working days
    33.17 €
    ( 39.47 € )
    4 working days
    37.16 €
    ( 44.22 € )
    4 working days
  • 1

    • More Information

    Basic information

    · For centring and clamping

    · With positive down force

    · For clamping low-profile workpieces

    · Specifically for small components
