KIPP

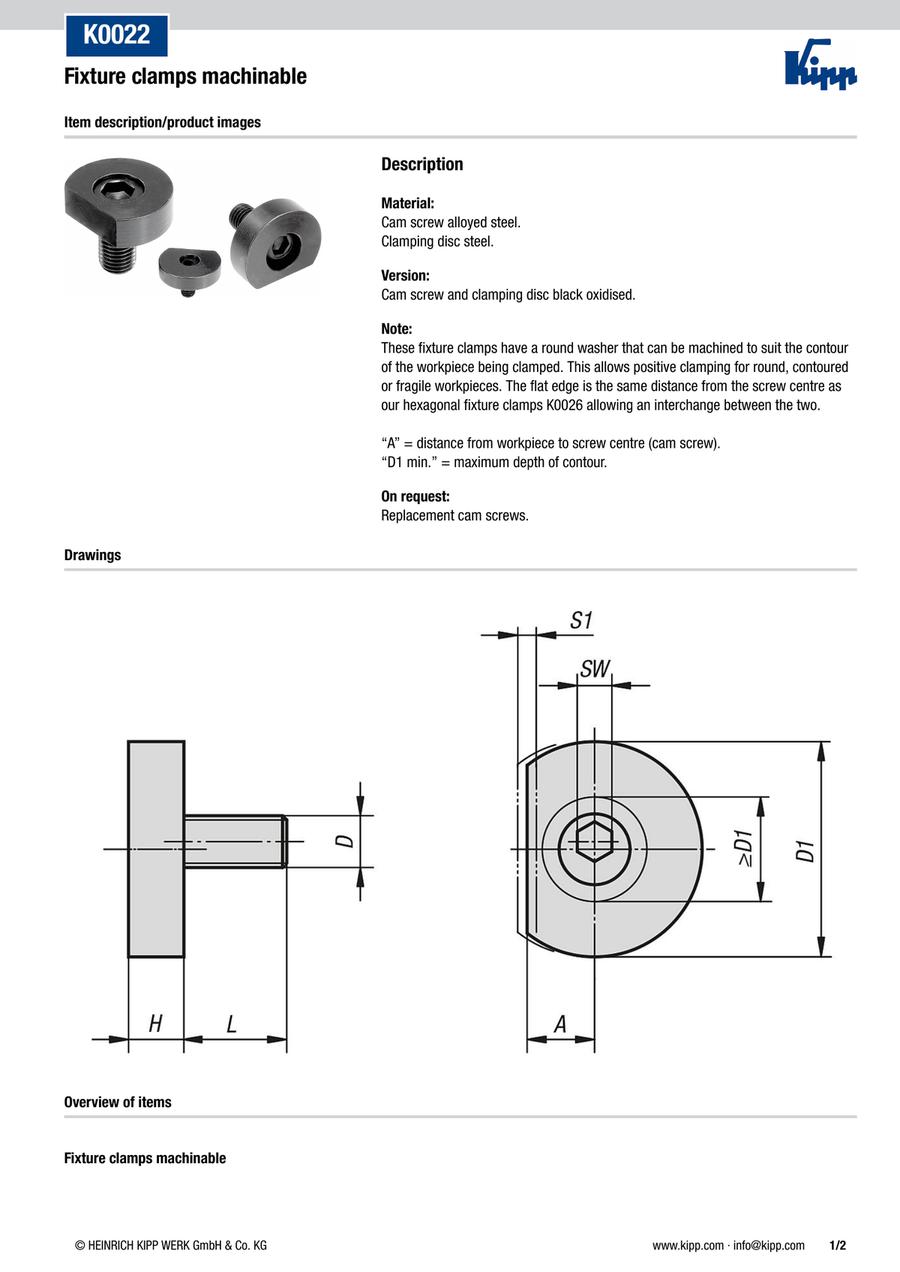

Fixture clamps machinable (K0022)

Fixture clamps machinable (K0022)

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    K0022.06
    K0022.10
    K0022.12
    K0022.16

    A

    (mm)

    D=Thread

    D1

    (mm)

    D1 min.

    (mm)

    H

    (mm)

    L

    (mm)

    S1 (travel)

    (mm)

    SW

    (mm)

    Clamping force

    (kN)

    		Minimum order quantity
    7.8
    M6
    24.9
    12.1
    6.4
    11.9
    1.01
    4
    3.3
    1 pieces
    10.2
    M10
    31.2
    17.2
    8.9
    18
    1.52
    7
    8.9
    1 pieces
    12.7
    M12
    37.6
    22.4
    11.4
    22.9
    2.03
    8
    17.8
    1 pieces
    15
    M16
    43.9
    26.1
    14
    28.6
    2.54
    12
    26.7
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    32.10 €
    ( 38.20 € )
    4 working days
    35.59 €
    ( 42.35 € )
    4 working days
    43.62 €
    ( 51.91 € )
    4 working days
    53.37 €
    ( 63.51 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Self-locking

    · Simple assembly

    · Easy to operate

    · Compact clamping element
