Configure
- A(mm)
- 3
- 3.5
- 4.5
- 5.5
- 6.5
- 8
- A1(mm)
- 4.6
- 5.7
- 7.1
- 8.9
- 11.1
- 13.5
- A2(mm)
- 4
- 5
- 6.1
- 7.7
- 9.4
- 11.6
- D1 max.(mm)
- 9.2
- 11.4
- 14.2
- 18
- 22.2
- 27
- H(mm)
- 3
- 4
- 5
- 6
- 7
- 9
- L=Thread length(mm)
- 8
- 10
- 12
- 16
- 20
- 24
- S1 (travel)(mm)
- 0.6
- 0.7
- 1
- 1.2
- 1.7
- 1.9
- SW(mm)
- 2.5
- 3
- 4
- 5
- 6
- 8
- Tightening torque max.(Nm)
- 1.5
- 2
- 4.5
- 20
- 30
- 44
- X(mm)
- 3.5
- 4.2
- 5.4
- 6.6
- 8.3
- 10.1
- Z(mm)
- 4.2
- 5.2
- 6.4
- 8
- 9.8
- 12
- Clamping force(kN)
- 0.09
- 0.1
- 0.3
- 2.7
- 4
- 5.4
- CAD
- 3D
- Est. shipping days
- All
- Within 4 working days

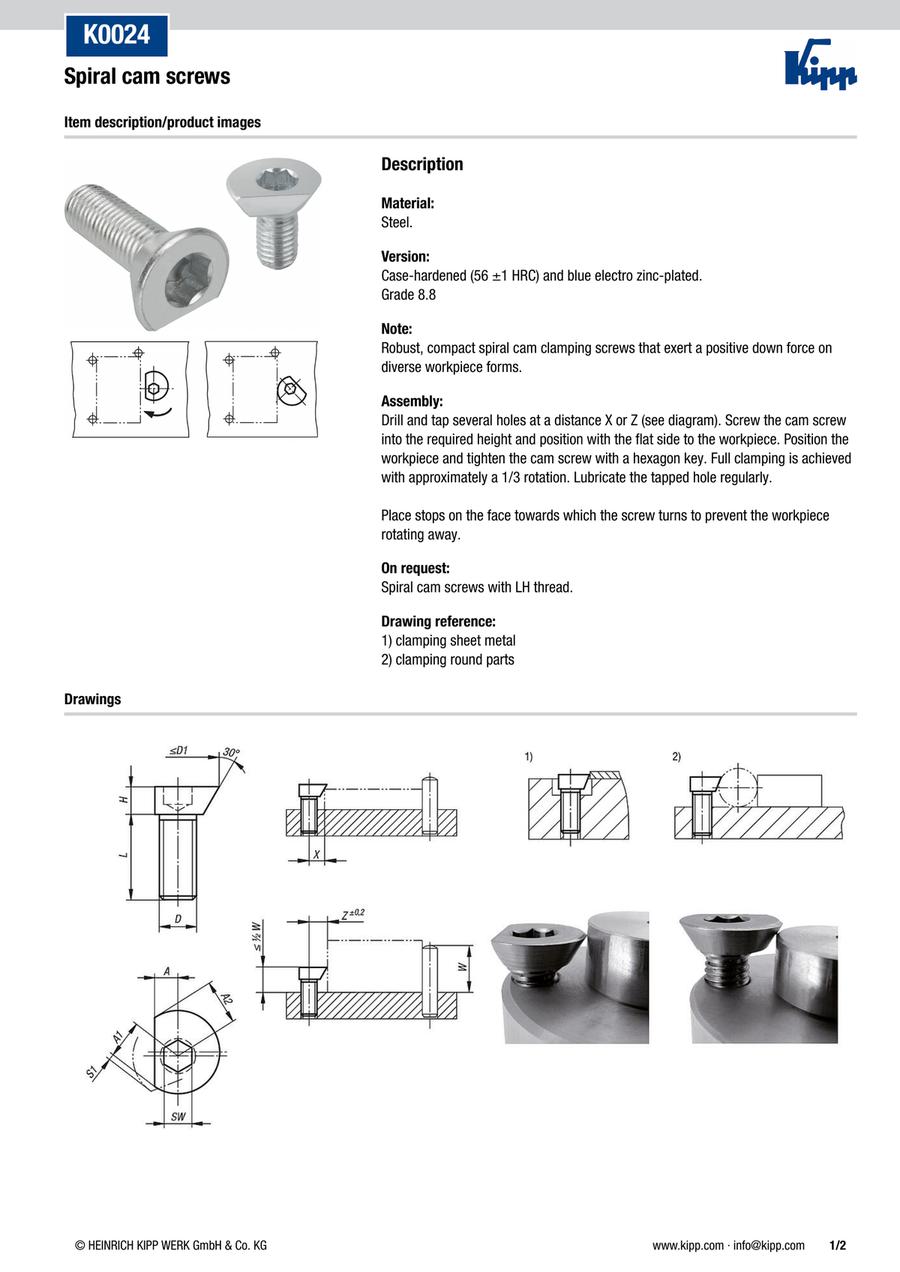

Spiral cam screws (K0024)
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
17.91 € ( 21.31 € ) | 4 working days |
18.40 € ( 21.90 € ) | 4 working days |
19.32 € ( 22.99 € ) | 4 working days |
20.38 € ( 24.25 € ) | 4 working days |
21.62 € ( 25.73 € ) | 4 working days |
22.77 € ( 27.10 € ) | 4 working days |
More Information
Basic information
· Robust
· Compact
· Simple assembly
· With positive down force
