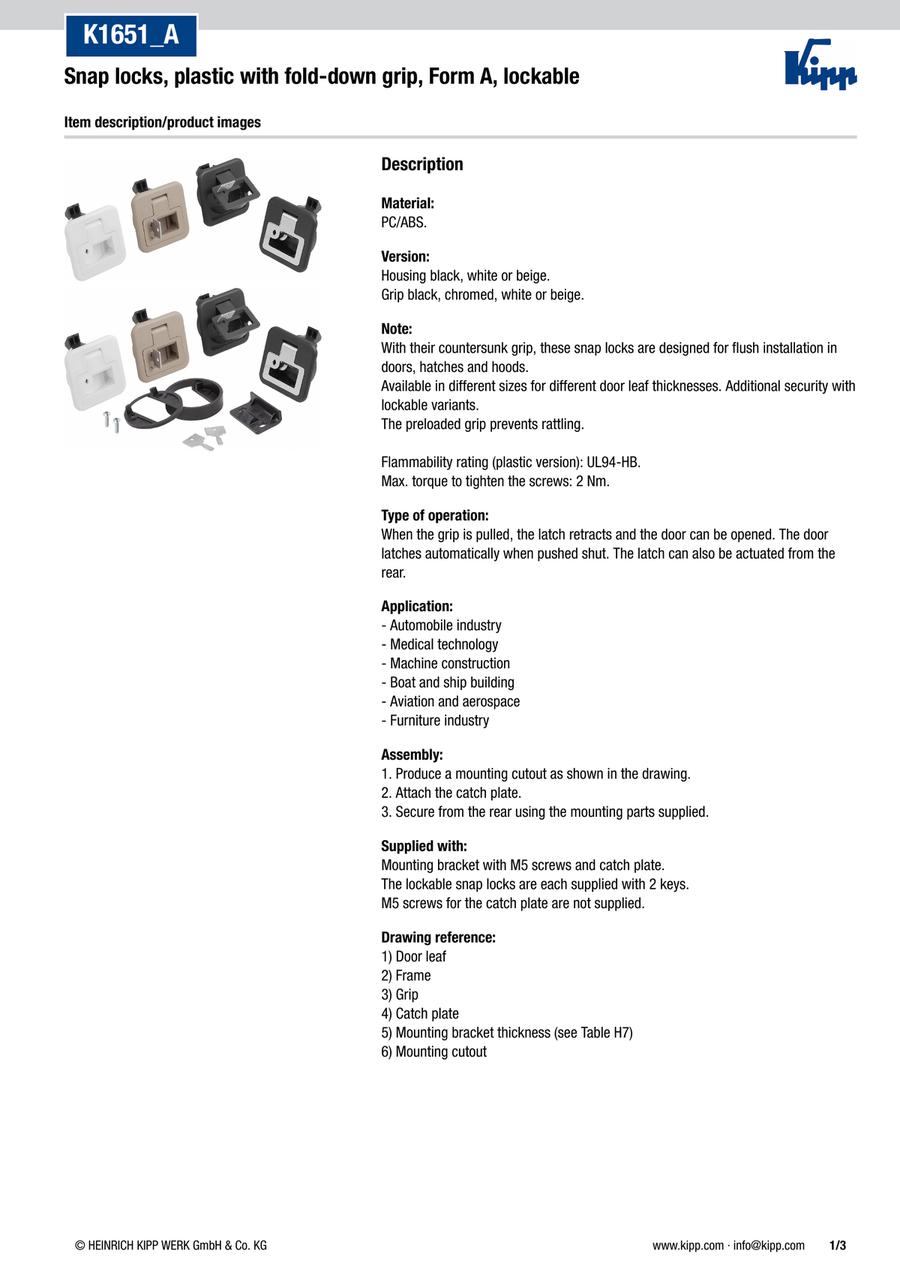

Snap locks plastic with fold-down grip, Form A, lockable (K1651)
· Lockable variants
· For door leaf thickness 2 - 22 mm
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main colour | Component colour | H7 (mm) | Screws | S = Door thickness (mm) | |
|---|---|---|---|---|---|---|---|---|---|
24.58 € | 1 | 4 Days | black | black | 14 | M5X16 | 2-7 | ||
32.66 € | 1 | 4 Days | black | chromed | 14 | M5X16 | 2-7 | ||
24.58 € | 1 | 4 Days | white | white | 14 | M5X16 | 2-7 | ||
24.58 € | 1 | 4 Days | beige | beige | 14 | M5X16 | 2-7 | ||
24.58 € | 1 | 4 Days | black | black | 14 | M5X20 | 7-12 | ||
32.66 € | 1 | 4 Days | black | chromed | 14 | M5X20 | 7-12 | ||
24.58 € | 1 | 4 Days | white | white | 14 | M5X20 | 7-12 | ||
24.58 € | 1 | 4 Days | beige | beige | 14 | M5X20 | 7-12 | ||
24.58 € | 1 | 4 Days | black | black | 3.8 | M5X16 | 12-17 | ||
32.66 € | 1 | 4 Days | black | chromed | 3.8 | M5X16 | 12-17 | ||
24.58 € | 1 | 4 Days | white | white | 3.8 | M5X16 | 12-17 | ||
24.58 € | 1 | 4 Days | beige | beige | 3.8 | M5X16 | 12-17 | ||
24.58 € | 1 | 4 Days | black | black | 3.8 | M5X20 | 17-22 | ||
32.66 € | 1 | 4 Days | black | chromed | 3.8 | M5X20 | 17-22 | ||
24.58 € | 1 | 4 Days | white | white | 3.8 | M5X20 | 17-22 | ||
24.58 € | 1 | 4 Days | beige | beige | 3.8 | M5X20 | 17-22 |
Loading...
Basic information
| Main material | PC/ABS | Component material | PC/ABS | Form | A |
|---|---|---|---|---|---|
| Form-Type | lockable | Version 1 | with grip | Version 2 | fold-down |
| A(mm) | 28 | B=Width(mm) | 60 | B1(mm) | 40 |
| B2(mm) | 5.2 | D=diameter(mm) | 50 | D1(mm) | 50 |
| D2(mm) | 5.5 | H=Height(mm) | 35.41 | H1(mm) | 35 |
| H2(mm) | 4 | H3(mm) | 22 | H4(mm) | 26.1 |
| H5(mm) | 23 | H6(mm) | 39.2 | L=Length(mm) | 42.9 |
| L1(mm) | 3.8 | L2(mm) | 12.7 | L3(mm) | 7.2 |
| F=retaining force(N) | 270 | F1=Tractive force(N) | 50 | Temperature range(°C) | -30 to 60 |
Configure
Basic Attributes
-
Main colour
- beige
- black
- white
-
Component colour
- beige
- black
- chromed
- white
-
H7(mm)
- 3.8
- 14
-
Screws
- M5X16
- M5X20
-
S = Door thickness(mm)
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
