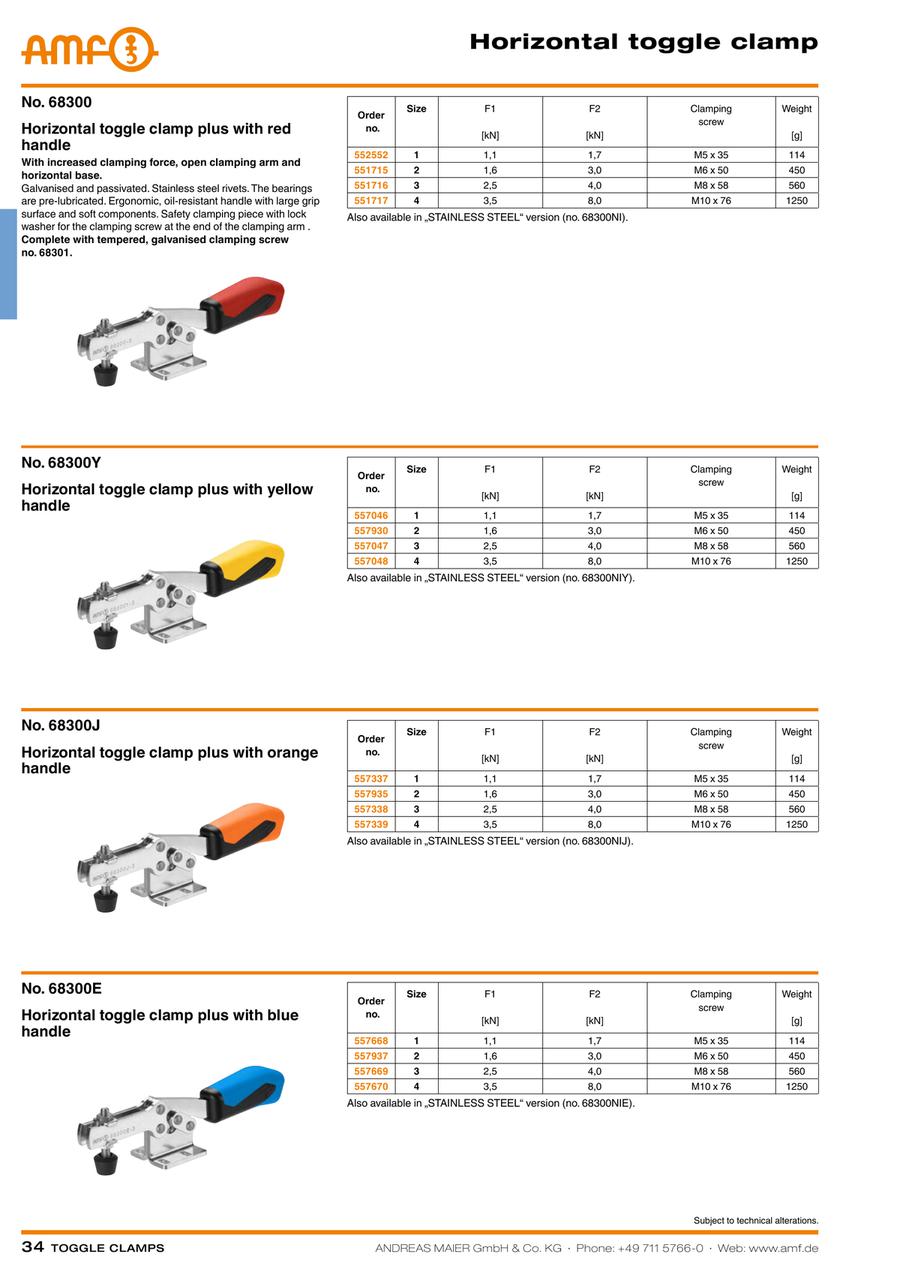

Horizontal Toggle Clamp Plus with Orange Handle, 68300J

Horizontal Toggle Clamp Plus with Orange Handle, 68300J

Part number:

Still undefined. 4 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    557337
    557338
    557339
    557935

    F1

    (kN)

    F2

    (kN)

    Size

    Weight

    (g)

    		Minimum order quantity
    1,1
    1,7
    1
    114
    1 pieces
    2,5
    4,0
    3
    560
    1 pieces
    3,5
    8,0
    4
    1250
    1 pieces
    1,6
    3,0
    2
    450
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    46.23 €
    ( 55.01 € )
    6 working days
    63.46 €
    ( 75.52 € )
    6 working days
    78.80 €
    ( 93.77 € )
    6 working days
    54.48 €
    ( 64.83 € )
    6 working days
  • 1

    • More Information

    Basic information

    Horizontal toggle clamp plus with orange handle
    With increased clamping force, open clamping arm and horizontal base.Galvanised and passivated. Stainless steel rivets. The bearings are pre-lubricated. Ergonomic, oil-resistant handle with large grip surface and soft components. Safety clamping piece with lock washer for the clamping screw at the end of the clamping arm .
    Complete with tempered, galvanised clamping screw no. 68301.
