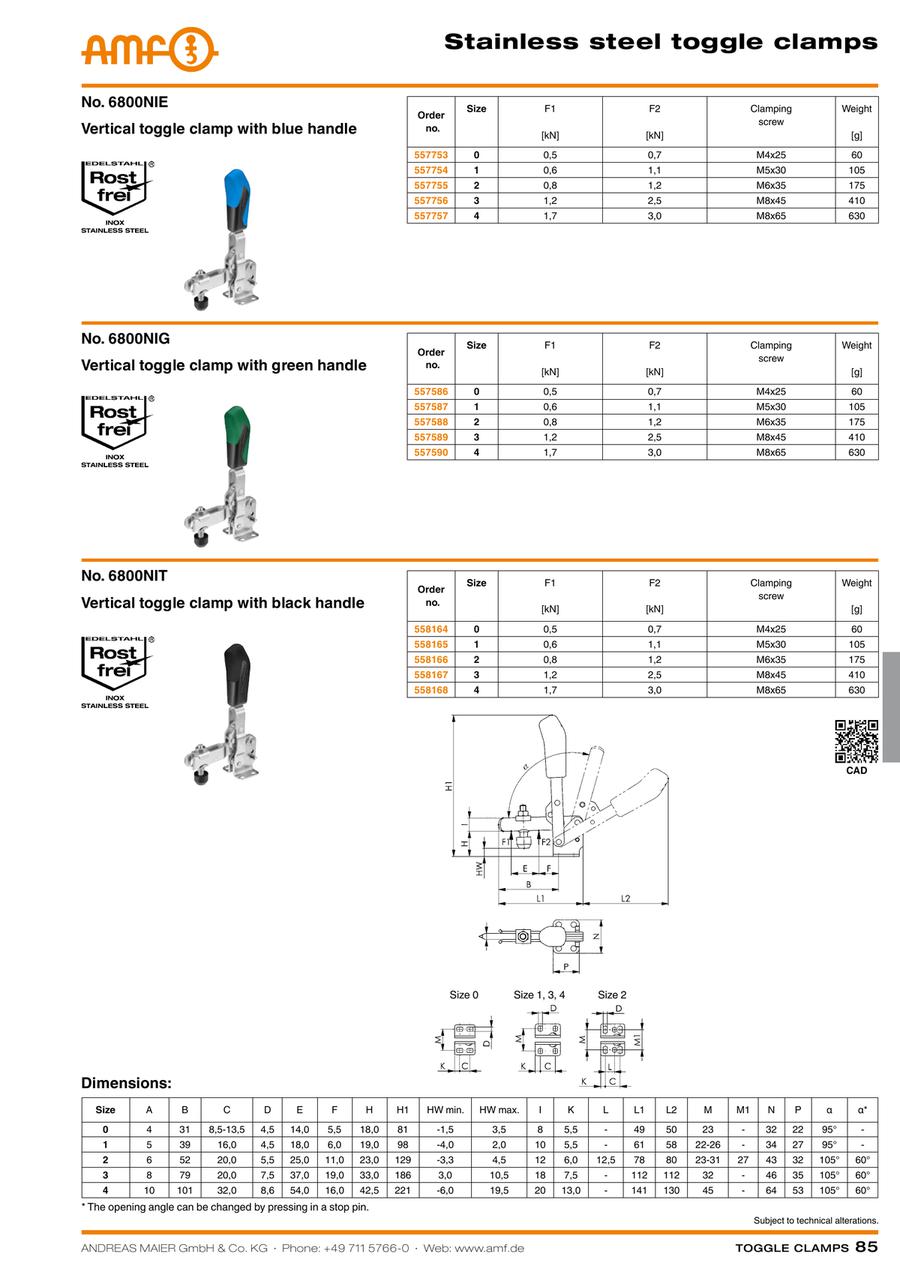

Vertical Toggle Clamp with Blue Handle, 6800NIE
- Volume Discount
with open clamping arm and horizontal base.
Stainless steel, polished. In sizes 2 to 4, rivets run in bearing bushes. Bearings are pre-lubricated.
Ergonomic, oil-resistant handle with large grip surface and soft components.
Supplied complete with stainless clamping screw no. 6890NI.
Also suitable for use in the food industry.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 557753 |
| 557754 |
| 557755 |
| 557756 |
| 557757 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | A | B | C | E | L | F1 (kN) | F2 (kN) | Size | D | Clamping screw | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
48.50 € | 1 | Available | 6 Days | 4 | 31 | 8,5-13,5 | 14,0 | - | 0,5 | 0,7 | 0 | 4,5 | M4x25 | 60 | |
56.38 € | 1 | Available | 6 Days | 5 | 39 | 16,0 | 18,0 | - | 0,6 | 1,1 | 1 | 4,5 | M5x30 | 105 | |
66.77 € | 1 | Available | 6 Days | 6 | 52 | 20,0 | 25,0 | 12,5 | 0,8 | 1,2 | 2 | 5,5 | M6x35 | 175 | |
93.06 € | 1 | Available | 6 Days | 8 | 79 | 20, | 37,0 | - | 1,2 | 2,5 | 3 | 7,5 | M8x45 | 410 | |
117.68 € | 1 | Available | 6 Days | 10 | 101 | 32,0 | 54,0 | - | 1,7 | 3,0 | 4 | 8,6 | M8x65 | 630 |
Loading...
Configure
Basic Attributes
-
A
- 4
- 5
- 6
- 8
- 10
-
B
-
C
-
E
-
L
- 12,5
- -
-
F1(kN)
-
F2(kN)
- 0,7
- 1,1
- 1,2
- 2,5
- 3,0
-
Size
- 0
- 1
- 2
- 3
- 4
-
D
- 4,5
- 5,5
- 7,5
- 8,6
-
Clamping screw
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
