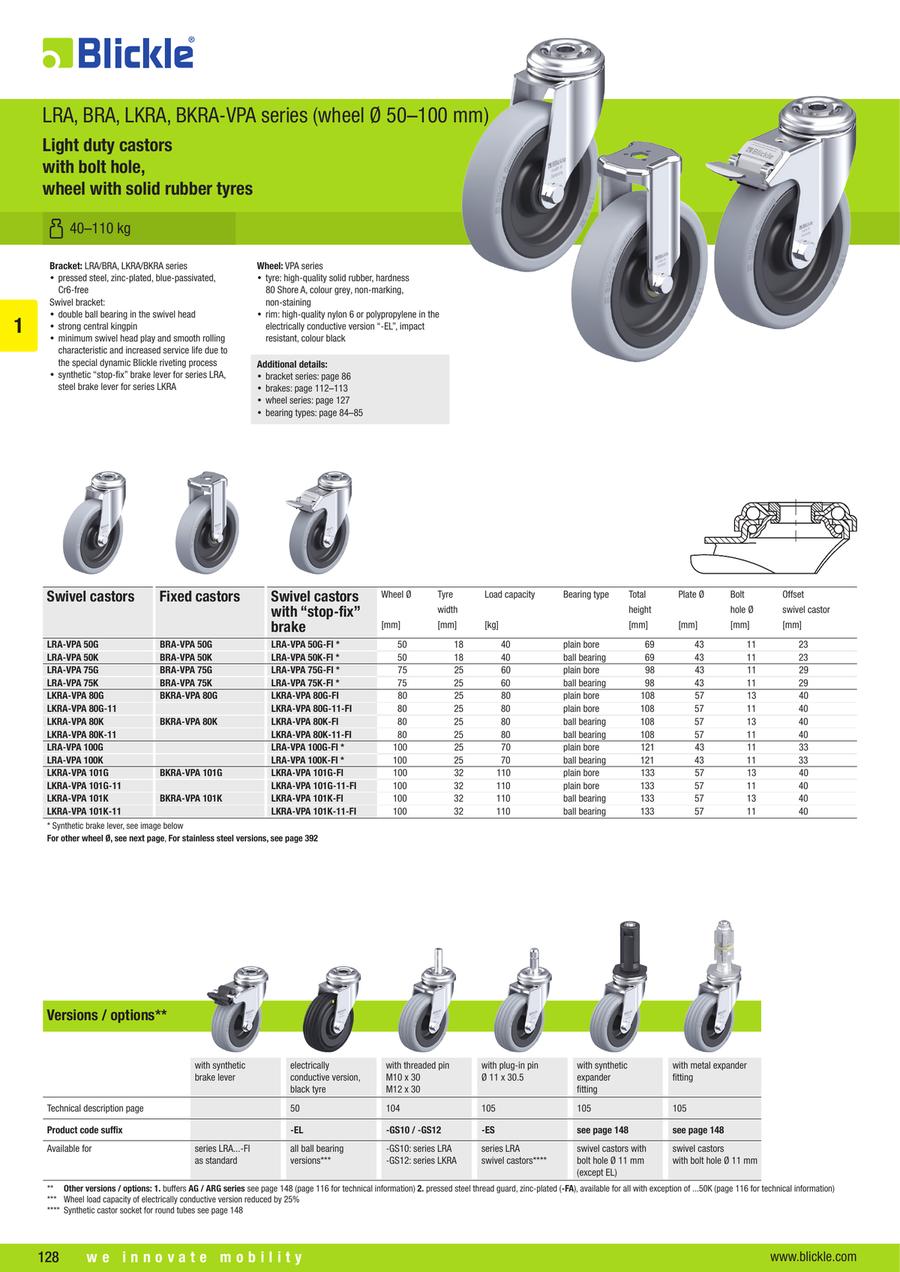

Light Duty Fixed Castor, BRA-VPA Series
Bracket: BRA series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Wheel: VPA series
- tyre: high-quality solid rubber, hardness 80 Shore A, colour grey, non-marking, non-staining
- rim: high-quality nylon 6 or polypropylene in the electrically conductive version "-EL", impact resistant, colour black
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| BRA-VPA 50G |
| BRA-VPA 50G-FA |
| BRA-VPA 50K |
| BRA-VPA 50K-EL |
| BRA-VPA 75G |
| BRA-VPA 75G-FA |
| BRA-VPA 75K |
| BRA-VPA 75K-EL |
| BRA-VPA 75K-EL-FA |
| BRA-VPA 75K-FA |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Wheel Characteristics | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Material (details) | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Tread color | Non-staining | Non-marking | Load capacity at 3 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
6.70 € | 1 | 5 Days | 98 | 35.01 to 80.00 | Conductivity | 75 | 25 | plain bore | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 69 | 106 | 50 | 18 | grey | yes | yes | 40 | ||
11.75 € | 1 | 7 Days | 98 | 35.01 to 80.00 | Conductivity | 75 | 25 | plain bore | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 69 | 110 | 50 | 18 | grey | yes | yes | 40 | ||
9.07 € | 1 | 5 Days | 98 | 35.01 to 80.00 | - | 75 | 25 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 69 | 134 | 50 | 18 | grey | yes | yes | 40 | ||
12.42 € | 1 | 7 Days | 125 | Up to 35.00 | - | 100 | 30 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality polypropylene | 69 | 130 | 50 | 18 | black | no | no | 30 | ||
9.60 € | 1 | 5 Days | 125 | 35.01 to 80.00 | - | 100 | 30 | plain bore | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 98 | 190 | 75 | 25 | grey | yes | yes | 60 | ||
14.65 € | 1 | 7 Days | 125 | 35.01 to 80.00 | - | 100 | 30 | plain bore | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 98 | 200 | 75 | 25 | grey | yes | yes | 60 | ||
12.15 € | 1 | 5 Days | 125 | 35.01 to 80.00 | - | 100 | 30 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 98 | 229 | 75 | 25 | grey | yes | yes | 60 | ||
16.34 € | 1 | 7 Days | 125 | 35.01 to 80.00 | - | 100 | 30 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality polypropylene | 98 | 230 | 75 | 25 | black | no | no | 45 | ||
21.38 € | 1 | 7 Days | 125 | 35.01 to 80.00 | - | 100 | 30 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality polypropylene | 98 | 236 | 75 | 25 | black | no | no | 45 | ||
17.20 € | 1 | 7 Days | 125 | 35.01 to 80.00 | - | 100 | 30 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 98 | 236 | 75 | 25 | grey | yes | yes | 60 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Wheel Material | Engineering Plastics | Material | Rubber |
|---|---|---|---|---|---|
| Product type | fixed castor | Suitable for autoclaves | no | Mounting type | bolt hole |
| Tread and tyre hardness | 80 Shore A | Wheel body color | black | Tread hydrolysis-resistant | no |
| Rustproof | no | Maximum temperature resistance(°C) | 60 | Minimum temperature resistance(°C) | -20 |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- Up to 35.00
- 35.01 to 80.00
-
Wheel Characteristics
- Conductivity
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- Ball bearing
- plain bore
-
Material (details)
- Tread material: Rubber, Wheel body material: high-quality nylon 6
- Tread material: Rubber, Wheel body material: high-quality polypropylene
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Tread color
-
Non-staining
- no
- yes
-
Non-marking
- no
- yes
-
Load capacity at 3 km/h(kg)
-
Type
- BRA-VPA
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
