Configure
- Load Range(daN)
- Plate Length L(mm)
- 100
- 140
- Plate Width W(mm)
- 85
- 110
- Total height(mm)
- 125
- 150
- 195
- 235
- Weight(g)
- 707
- 915
- 1729
- 2350
- Wheel diameter(mm)
- 100
- 125
- 160
- 200
- Wheel width(mm)
- 30
- 38
- 40
- 50
- Load capacity at 4 km/h(kg)
- 65
- 90
- 120
- 180
- Type
- Est. shipping days
- All
- Within 5 working days
- Within 7 working days

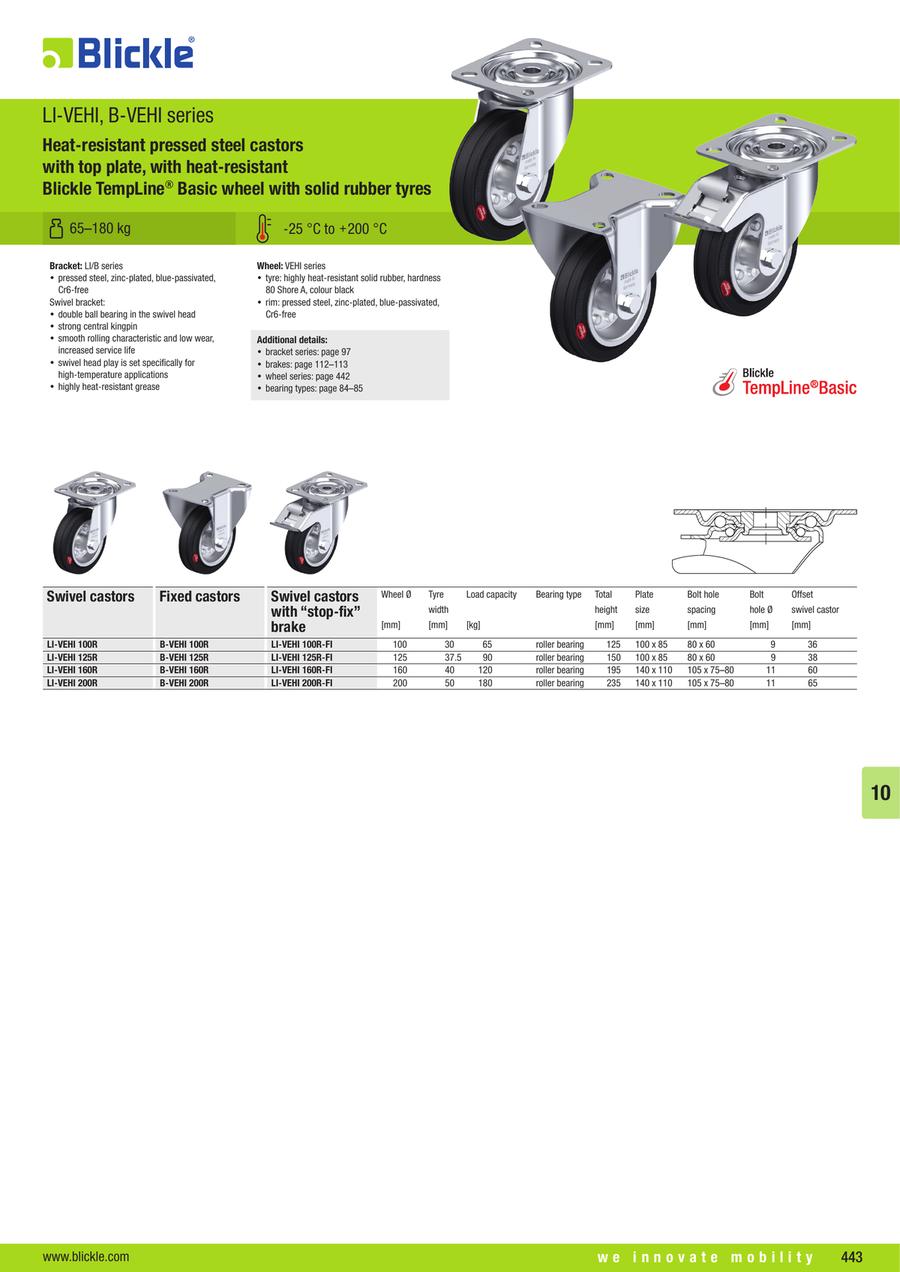

Pressed Steel Fixed Castor, B-VEHI Series
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
38.55 € ( 45.87 € ) | 7 working days |
46.99 € ( 55.92 € ) | 5 working days |
76.12 € ( 90.58 € ) | 5 working days |
99.30 € ( 118.17 € ) | 5 working days |
More Information
Basic information
Pressed Steel Fixed Castor, Medium Duty Design, with Top Plate Fitting, Blickle Templine® Wheel Basic, with Solid Rubber Tyres, with Pressed Steel Rim, Heat-Resistant
Bracket: B series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Wheel: VEHI series
- tyre: highly heat-resistant solid rubber, hardness 80 Shore A, colour black
- rim: pressed steel, zinc-plated, blue-passivated, Cr6-free
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +200 °C
- majority of tyre flattening recovers when in motion under load
