Configure

Mounting Height H(mm)
- 80
- 102
- 125
- 150
- 170
- 190
- 195
- 215
- 235
Load Range(daN)
Plate Length L(mm)
- 100
- 140
Plate Width W(mm)
- 85
- 110
Wheel Dia. D(mm)
- 60
- 80
- 100
- 125
- 140
- 150
- 160
- 180
- 200
Wheel Width B(mm)
- 25
- 30
- 35
- 38
- 40
- 50
Bearing type
- plain bore
- roller bearing
Total height(mm)
- 102
- 125
- 150
- 170
- 190
- 195
- 215
- 235
Weight(g)
- 339
- 351
- 358
- 362
- 370
- 380
- 393
- 400
- 537
- 562
- 577
- 592
- 600
- 610
- 617
- 637
- 805
- 830
- 834
- 864
- 874
- 893
- 1062
- 1070
- 1099
- 1120
- 1150
- 1180
- 1188
- 1200
- 1320
- 1325
- 1386
- 1414
- 1416
- 1486
- 1490
- 1505
- 1510
- 1532
- 1550
- 1590
- 1600
- 1608
- 1656
- 1688
- 1715
- 1807
- 1826
- 1922
- 1950
- 1990
- 2004
- 2120
- 2206
- 2209
- 2256
- 2280
- 2455
- 2509
- 2522
Wheel diameter(mm)
- 80
- 100
- 125
- 140
- 150
- 160
- 180
- 200
Wheel width(mm)
- 25
- 30
- 38
- 40
- 50
Tread color
- black
- grey
Non-staining
- no
- yes
Non-marking
- no
- yes
Load capacity at 4 km/h(kg)
- 50
- 70
- 100
- 115
- 135
- 170
- 205
Type
- B-VPP
Est. shipping days
- All
- Within 5 working days
- Within 7 working days

Pressed Steel Fixed Castor, B-VPP Series

Catalog

Part number:

Still undefined. 64 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Mounting Height H

(mm)

Load Range

(daN)

Plate Length L

(mm)

Plate Width W

(mm)

Wheel Dia. D

(mm)

Wheel Width B

(mm)

Bearing type

Total height

(mm)

Weight

(g)

Wheel diameter

(mm)

Wheel width

(mm)

Tread color

Non-staining

Non-marking

Load capacity at 4 km/h

(kg)

Minimum order quantity

102	35.01 to 80.00	100	85	80	25	plain bore	102	339	80	25	black	no	no	50	1 pieces
80	35.01 to 80.00	100	85	60	35	plain bore	102	358	80	25	black	no	no	50	1 pieces
150	35.01 to 80.00	100	85	125	38	plain bore	102	351	80	25	grey	yes	yes	50	1 pieces
150	35.01 to 80.00	100	85	125	38	plain bore	102	400	80	25	grey	yes	yes	50	1 pieces
150	35.01 to 80.00	100	85	125	38	roller bearing	102	362	80	25	black	no	no	50	1 pieces
150	35.01 to 80.00	100	85	125	38	roller bearing	102	380	80	25	black	no	no	50	1 pieces
195	35.01 to 80.00	100	85	160	40	roller bearing	102	370	80	25	grey	yes	yes	50	1 pieces
195	35.01 to 80.00	100	85	160	40	roller bearing	102	393	80	25	grey	yes	yes	50	1 pieces
125	35.01 to 80.00	100	85	100	30	plain bore	125	562	100	30	black	no	no	70	1 pieces
150	35.01 to 80.00	100	85	125	38	plain bore	125	537	100	30	black	no	no	70	1 pieces
150	35.01 to 80.00	100	85	125	38	plain bore	125	577	100	30	grey	yes	yes	70	1 pieces
150	35.01 to 80.00	100	85	125	38	plain bore	125	600	100	30	grey	yes	yes	70	1 pieces
150	35.01 to 80.00	100	85	125	38	roller bearing	125	592	100	30	black	no	no	70	1 pieces
150	35.01 to 80.00	100	85	125	38	roller bearing	125	617	100	30	black	no	no	70	1 pieces
150	35.01 to 80.00	100	85	125	38	roller bearing	125	610	100	30	grey	yes	yes	70	1 pieces
150	35.01 to 80.00	100	85	125	38	roller bearing	125	637	100	30	grey	yes	yes	70	1 pieces
150	80.01 to 140.00	100	85	125	38	plain bore	150	893	125	38	black	no	no	100	1 pieces
170	80.01 to 140.00	100	85	140	38	plain bore	150	830	125	38	black	no	no	100	1 pieces
170	80.01 to 140.00	100	85	140	38	plain bore	150	830	125	38	grey	yes	yes	100	1 pieces
170	80.01 to 140.00	100	85	140	38	plain bore	150	874	125	38	grey	yes	yes	100	1 pieces
170	80.01 to 140.00	100	85	140	38	roller bearing	150	805	125	38	black	no	no	100	1 pieces
170	80.01 to 140.00	100	85	140	38	roller bearing	150	834	125	38	black	no	no	100	1 pieces
170	80.01 to 140.00	100	85	140	38	roller bearing	150	864	125	38	grey	yes	yes	100	1 pieces
170	80.01 to 140.00	100	85	140	38	roller bearing	150	864	125	38	grey	yes	yes	100	1 pieces
170	80.01 to 140.00	140	110	140	38	plain bore	170	1062	140	38	black	no	no	115	1 pieces
190	80.01 to 140.00	140	110	150	40	plain bore	170	1070	140	38	black	no	no	115	1 pieces
190	80.01 to 140.00	140	110	150	40	plain bore	170	1180	140	38	grey	yes	yes	115	1 pieces
190	80.01 to 140.00	140	110	150	40	plain bore	170	1200	140	38	grey	yes	yes	115	1 pieces
190	80.01 to 140.00	140	110	150	40	roller bearing	170	1099	140	38	black	no	no	115	1 pieces
190	80.01 to 140.00	140	110	150	40	roller bearing	170	1120	140	38	black	no	no	115	1 pieces
190	80.01 to 140.00	140	110	150	40	roller bearing	170	1188	140	38	grey	yes	yes	115	1 pieces
190	80.01 to 140.00	140	110	150	40	roller bearing	170	1150	140	38	grey	yes	yes	115	1 pieces
190	80.01 to 140.00	140	110	150	40	plain bore	190	1325	150	40	black	no	no	135	1 pieces
195	80.01 to 140.00	140	110	160	40	plain bore	190	1320	150	40	black	no	no	135	1 pieces
195	80.01 to 140.00	140	110	160	40	plain bore	190	1416	150	40	grey	yes	yes	135	1 pieces
195	80.01 to 140.00	140	110	160	40	plain bore	190	1320	150	40	grey	yes	yes	135	1 pieces
195	80.01 to 140.00	140	110	160	40	roller bearing	190	1386	150	40	black	no	no	135	1 pieces
195	80.01 to 140.00	140	110	160	40	roller bearing	190	1486	150	40	black	no	no	135	1 pieces
195	80.01 to 140.00	140	110	160	40	roller bearing	190	1505	150	40	grey	yes	yes	135	1 pieces
195	80.01 to 140.00	140	110	160	40	roller bearing	190	1550	150	40	grey	yes	yes	135	1 pieces
195	80.01 to 140.00	140	110	160	40	plain bore	195	1414	160	40	black	no	no	135	1 pieces
215	80.01 to 140.00	140	110	180	50	plain bore	195	1490	160	40	black	no	no	135	1 pieces
215	80.01 to 140.00	140	110	180	50	plain bore	195	1532	160	40	grey	yes	yes	135	1 pieces
215	80.01 to 140.00	140	110	180	50	plain bore	195	1608	160	40	grey	yes	yes	135	1 pieces
215	80.01 to 140.00	140	110	180	50	roller bearing	195	1510	160	40	black	no	no	135	1 pieces
215	80.01 to 140.00	140	110	180	50	roller bearing	195	1590	160	40	black	no	no	135	1 pieces
215	80.01 to 140.00	140	110	180	50	roller bearing	195	1600	160	40	grey	yes	yes	135	1 pieces
215	80.01 to 140.00	140	110	180	50	roller bearing	195	1715	160	40	grey	yes	yes	135	1 pieces
215	140.01 to 220.00	140	110	180	50	plain bore	215	1688	180	50	black	no	no	170	1 pieces
235	140.01 to 220.00	140	110	200	50	plain bore	215	1950	180	50	black	no	no	170	1 pieces
235	140.01 to 220.00	140	110	200	50	plain bore	215	1656	180	50	grey	yes	yes	170	1 pieces
235	140.01 to 220.00	140	110	200	50	plain bore	215	1990	180	50	grey	yes	yes	170	1 pieces
235	140.01 to 220.00	140	110	200	50	roller bearing	215	1807	180	50	black	no	no	170	1 pieces
235	140.01 to 220.00	140	110	200	50	roller bearing	215	1922	180	50	black	no	no	170	1 pieces
235	140.01 to 220.00	140	110	200	50	roller bearing	215	1826	180	50	grey	yes	yes	170	1 pieces
235	140.01 to 220.00	140	110	200	50	roller bearing	215	2120	180	50	grey	yes	yes	170	1 pieces
235	140.01 to 220.00	140	110	200	50	plain bore	235	2004	200	50	black	no	no	205	1 pieces
102	140.01 to 220.00	140	110	80	25	plain bore	235	2522	200	50	black	no	no	205	1 pieces
102	140.01 to 220.00	140	110	80	25	plain bore	235	2209	200	50	grey	yes	yes	205	1 pieces
102	140.01 to 220.00	140	110	80	25	plain bore	235	2256	200	50	grey	yes	yes	205	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

15.35 € ( 18.27 € )	5 working days
21.92 € ( 26.08 € )	7 working days
17.09 € ( 20.34 € )	7 working days
23.63 € ( 28.12 € )	7 working days
17.79 € ( 21.17 € )	7 working days
24.35 € ( 28.98 € )	7 working days
19.50 € ( 23.20 € )	7 working days
26.06 € ( 31.01 € )	7 working days
19.47 € ( 23.17 € )	5 working days
27.05 € ( 32.19 € )	7 working days
22.52 € ( 26.80 € )	7 working days
30.10 € ( 35.82 € )	7 working days
22.89 € ( 27.24 € )	5 working days
30.45 € ( 36.24 € )	7 working days
25.94 € ( 30.87 € )	7 working days
33.51 € ( 39.88 € )	7 working days
22.70 € ( 27.01 € )	5 working days
30.28 € ( 36.03 € )	7 working days
28.89 € ( 34.38 € )	7 working days
36.46 € ( 43.39 € )	7 working days
24.44 € ( 29.08 € )	5 working days
32.01 € ( 38.09 € )	7 working days
30.62 € ( 36.44 € )	7 working days
38.20 € ( 45.46 € )	7 working days
35.10 € ( 41.77 € )	7 working days
42.68 € ( 50.79 € )	7 working days
45.07 € ( 53.63 € )	7 working days
52.65 € ( 62.65 € )	7 working days
37.21 € ( 44.28 € )	7 working days
44.80 € ( 53.31 € )	7 working days
47.19 € ( 56.16 € )	7 working days
54.75 € ( 65.15 € )	7 working days
37.67 € ( 44.83 € )	7 working days
47.35 € ( 56.35 € )	7 working days
48.42 € ( 57.62 € )	7 working days
58.10 € ( 69.14 € )	7 working days
40.12 € ( 47.74 € )	7 working days
49.80 € ( 59.26 € )	7 working days
50.85 € ( 60.51 € )	7 working days
60.54 € ( 72.04 € )	7 working days
37.83 € ( 45.02 € )	5 working days
47.52 € ( 56.55 € )	7 working days
49.35 € ( 58.73 € )	7 working days
59.04 € ( 70.26 € )	7 working days
40.27 € ( 47.92 € )	5 working days
49.95 € ( 59.44 € )	7 working days
51.78 € ( 61.62 € )	7 working days
61.47 € ( 73.15 € )	7 working days
47.85 € ( 56.94 € )	7 working days
58.90 € ( 70.09 € )	7 working days
62.35 € ( 74.20 € )	7 working days
73.40 € ( 87.35 € )	7 working days
50.15 € ( 59.68 € )	7 working days
61.20 € ( 72.83 € )	7 working days
64.65 € ( 76.93 € )	7 working days
75.68 € ( 90.06 € )	7 working days
46.78 € ( 55.67 € )	5 working days
57.81 € ( 68.79 € )	7 working days
69.43 € ( 82.62 € )	7 working days
80.47 € ( 95.76 € )	7 working days

Basic information

Basic information

Pressed Steel Fixed Castor, Medium Duty Design, with Top Plate Fitting, Wheel, with Standard Solid Rubber Tyre, with Synthetic Rim

Bracket: B series

pressed steel, zinc-plated, blue-passivated, Cr6-free

Wheel: VPP series

tyre: standard solid rubber, hardness 80 Shore A, colour black
rim: high-quality polypropylene, impact resistant, colour black

Other features:

high chemical resistance to many aggressive substances, except oils
operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C

Catalog

Products homepage

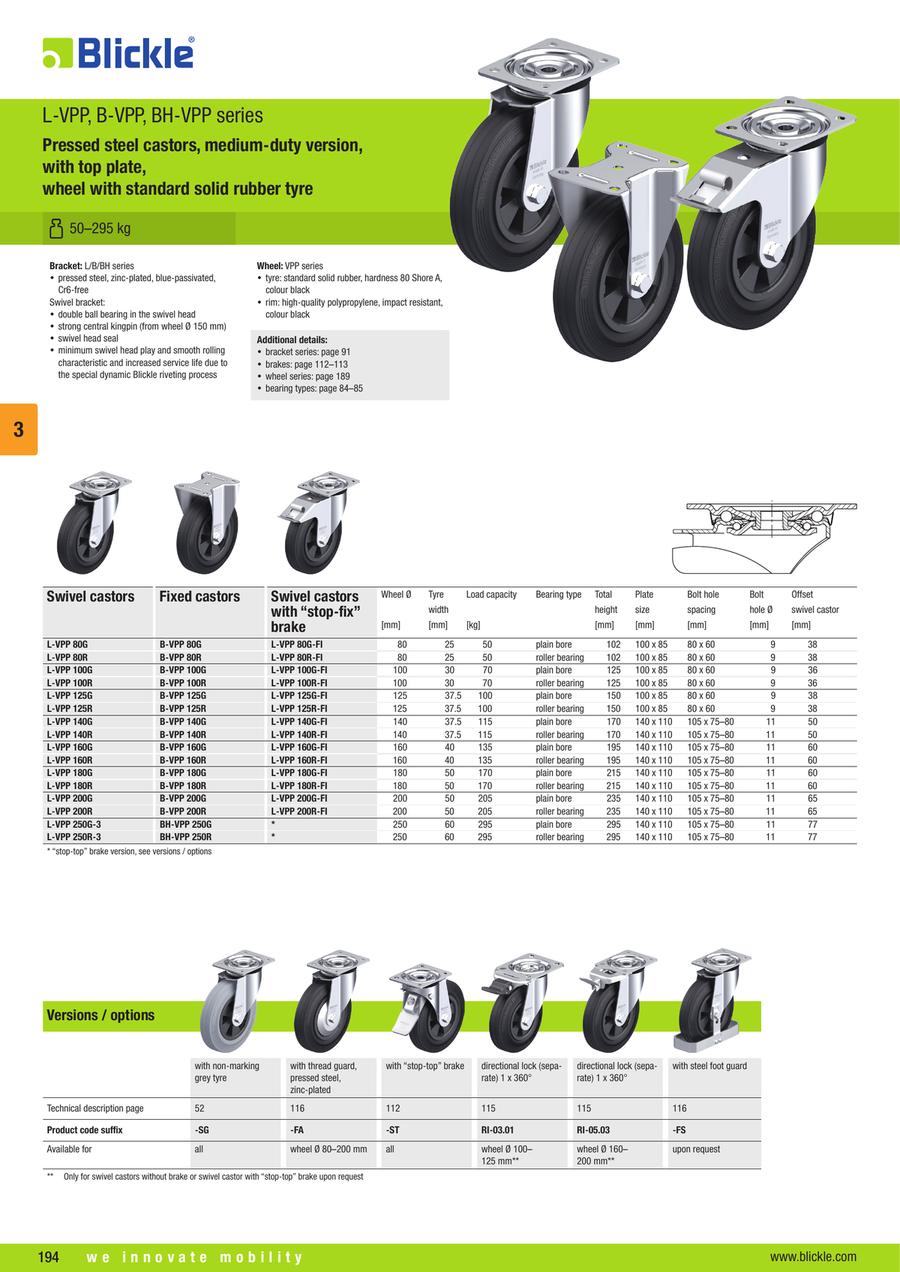

Catalog (2-page spread)
