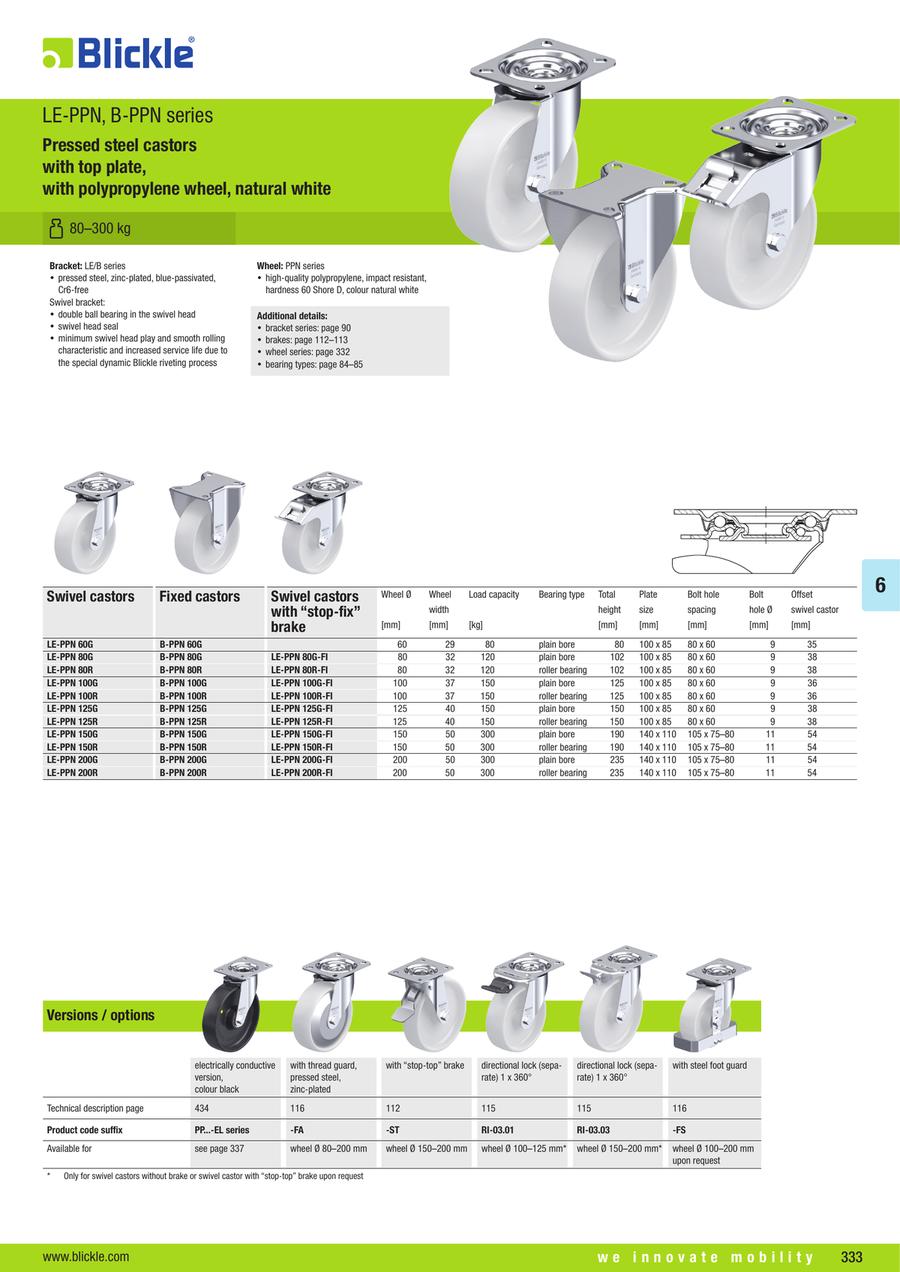

Pressed Steel Swivel Castor, LE-PPN Series
Bracket: LE series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: PPN series
- high-quality polypropylene, impact resistant, hardness 60 Shore D, colour natural white
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Caster Type | Mounting Height H (mm) | Load Range (daN) | Wheel Characteristics | Plate Length L (mm) | Plate Width W (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
20.18 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 35.01 to 80.00 | - | 100 | 85 | 125 | 32 | plain bore | swivel castor | 80 | 462 | 60 | 29 | 80 | ||
19.43 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 80.01 to 140.00 | Conductivity | 100 | 85 | 125 | 32 | plain bore | swivel castor | 102 | 476 | 80 | 32 | 120 | ||
26.35 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 195 | 80.01 to 140.00 | - | 100 | 85 | 160 | 40 | plain bore | swivel castor | 102 | 503 | 80 | 32 | 120 | ||
28.37 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 195 | 80.01 to 140.00 | - | 100 | 85 | 160 | 40 | plain bore | swivel castor with brake | 102 | 580 | 80 | 32 | 120 | ||
35.27 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 195 | 80.01 to 140.00 | - | 100 | 85 | 160 | 40 | plain bore | swivel castor with brake | 102 | 607 | 80 | 32 | 120 | ||
22.68 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 195 | 80.01 to 140.00 | Conductivity | 100 | 85 | 160 | 40 | roller bearing | swivel castor | 102 | 490 | 80 | 32 | 120 | ||
29.59 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 195 | 80.01 to 140.00 | - | 100 | 85 | 160 | 40 | roller bearing | swivel castor | 102 | 528 | 80 | 32 | 120 | ||
31.60 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 195 | 80.01 to 140.00 | Conductivity | 100 | 85 | 160 | 40 | roller bearing | swivel castor with brake | 102 | 601 | 80 | 32 | 120 | ||
38.52 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 195 | 80.01 to 140.00 | - | 100 | 85 | 160 | 40 | roller bearing | swivel castor with brake | 102 | 632 | 80 | 32 | 120 | ||
22.96 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | plain bore | swivel castor | 125 | 555 | 100 | 37 | 150 | ||
31.75 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | plain bore | swivel castor | 125 | 635 | 100 | 37 | 150 | ||
32.68 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | plain bore | swivel castor with brake | 125 | 675 | 100 | 37 | 150 | ||
41.46 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | plain bore | swivel castor with brake | 125 | 754 | 100 | 37 | 150 | ||
26.31 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | roller bearing | swivel castor | 125 | 586 | 100 | 37 | 150 | ||
35.09 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | roller bearing | swivel castor | 125 | 668 | 100 | 37 | 150 | ||
36.02 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | roller bearing | swivel castor with brake | 125 | 708 | 100 | 37 | 150 | ||
44.80 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | roller bearing | swivel castor with brake | 125 | 777 | 100 | 37 | 150 | ||
25.18 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | plain bore | swivel castor | 150 | 630 | 125 | 40 | 150 | ||
34.87 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | - | 100 | 85 | 200 | 50 | plain bore | swivel castor | 150 | 804 | 125 | 40 | 150 | ||
35.55 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | - | 100 | 85 | 200 | 50 | plain bore | swivel castor with brake | 150 | 772 | 125 | 40 | 150 | ||
45.23 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | - | 100 | 85 | 200 | 50 | plain bore | swivel castor with brake | 150 | 943 | 125 | 40 | 150 | ||
28.79 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | - | 100 | 85 | 200 | 50 | roller bearing | swivel castor | 150 | 671 | 125 | 40 | 150 | ||
38.47 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | - | 100 | 85 | 200 | 50 | roller bearing | swivel castor | 150 | 838 | 125 | 40 | 150 | ||
39.15 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | - | 100 | 85 | 200 | 50 | roller bearing | swivel castor with brake | 150 | 808 | 125 | 40 | 150 | ||
48.83 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | - | 100 | 85 | 200 | 50 | roller bearing | swivel castor with brake | 150 | 964 | 125 | 40 | 150 | ||
42.85 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | - | 140 | 110 | 200 | 50 | plain bore | swivel castor | 190 | 1436 | 150 | 50 | 300 | ||
53.90 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | - | 140 | 110 | 200 | 50 | plain bore | swivel castor | 190 | 1669 | 150 | 50 | 300 | ||
63.77 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | - | 140 | 110 | 200 | 50 | plain bore | swivel castor with brake | 190 | 1876 | 150 | 50 | 300 | ||
74.82 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | - | 140 | 110 | 200 | 50 | plain bore | swivel castor with brake | 190 | 2118 | 150 | 50 | 300 | ||
67.21 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | - | 140 | 110 | 200 | 50 | plain bore | swivel castor with brake | 190 | 1760 | 150 | 50 | 300 | ||
78.25 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 80 | 220.01 to 320.00 | - | 140 | 110 | 60 | 29 | plain bore | swivel castor with brake | 190 | 1974 | 150 | 50 | 300 | ||
48.45 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 140 | 110 | 80 | 32 | roller bearing | swivel castor | 190 | 1535 | 150 | 50 | 300 | ||
59.48 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 140 | 110 | 80 | 32 | roller bearing | swivel castor | 190 | 1771 | 150 | 50 | 300 | ||
69.37 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 140 | 110 | 80 | 32 | roller bearing | swivel castor with brake | 190 | 1991 | 150 | 50 | 300 | ||
80.40 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 140 | 110 | 80 | 32 | roller bearing | swivel castor with brake | 190 | 2203 | 150 | 50 | 300 | ||
72.80 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 140 | 110 | 80 | 32 | roller bearing | swivel castor with brake | 190 | 1870 | 150 | 50 | 300 | ||
83.85 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 140 | 110 | 80 | 32 | roller bearing | swivel castor with brake | 190 | 2073 | 150 | 50 | 300 | ||
60.03 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 140 | 110 | 80 | 32 | plain bore | swivel castor | 235 | 1722 | 200 | 50 | 300 | ||
73.17 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 140 | 110 | 80 | 32 | plain bore | swivel castor | 235 | 2165 | 200 | 50 | 300 | ||
85.40 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | - | 140 | 110 | 100 | 32 | plain bore | swivel castor with brake | 235 | 2220 | 200 | 50 | 300 | ||
98.54 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | - | 140 | 110 | 100 | 32 | plain bore | swivel castor with brake | 235 | 2710 | 200 | 50 | 300 | ||
84.38 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | - | 140 | 110 | 100 | 32 | plain bore | swivel castor with brake | 235 | 2030 | 200 | 50 | 300 | ||
97.52 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | Conductivity | 140 | 110 | 100 | 32 | plain bore | swivel castor with brake | 235 | 2479 | 200 | 50 | 300 | ||
69.14 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | - | 140 | 110 | 100 | 32 | roller bearing | swivel castor | 235 | 1812 | 200 | 50 | 300 | ||
82.26 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | Conductivity | 140 | 110 | 100 | 32 | roller bearing | swivel castor | 235 | 2253 | 200 | 50 | 300 | ||
94.50 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 220.01 to 320.00 | - | 140 | 110 | 125 | 32 | roller bearing | swivel castor with brake | 235 | 2310 | 200 | 50 | 300 | ||
107.63 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 220.01 to 320.00 | - | 140 | 110 | 125 | 32 | roller bearing | swivel castor with brake | 235 | 2798 | 200 | 50 | 300 | ||
93.49 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 220.01 to 320.00 | - | 140 | 110 | 125 | 32 | roller bearing | swivel castor with brake | 235 | 2123 | 200 | 50 | 300 | ||
106.61 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 220.01 to 320.00 | Conductivity | 140 | 110 | 125 | 32 | roller bearing | swivel castor with brake | 235 | 2567 | 200 | 50 | 300 |
Loading...
Basic information
| Wheel Material | Engineering Plastics | Material (details) | Tread material: Synthetic, Wheel body material: high-quality polypropylene | Material | Synthetic |
|---|---|---|---|---|---|
| Suitable for autoclaves | no | Mounting type | top plate | Tread and tyre hardness | 60 Shore D |
| Tread color | natural white | Wheel body color | natural white | Tread hydrolysis-resistant | no |
| Non-staining | yes | Rustproof | no | Non-marking | yes |
| Maximum temperature resistance(°C) | 60 | Minimum temperature resistance(°C) | -20 |
Configure
Basic Attributes
-
Caster Type
- Plate Type Swivel
- Screw-In Type
- Resin
- Through Hole Type
- Rotation Type
-
Mounting Height H(mm)
-
Load Range(daN)
- 35.01 to 80.00
- 80.01 to 140.00
- 140.01 to 220.00
- 220.01 to 320.00
-
Wheel Characteristics
- Conductivity
-
Plate Length L(mm)
-
Plate Width W(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- plain bore
- roller bearing
-
Product type
- swivel castor
- swivel castor with brake
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity at 4 km/h(kg)
-
Type
- LE-PPN
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
