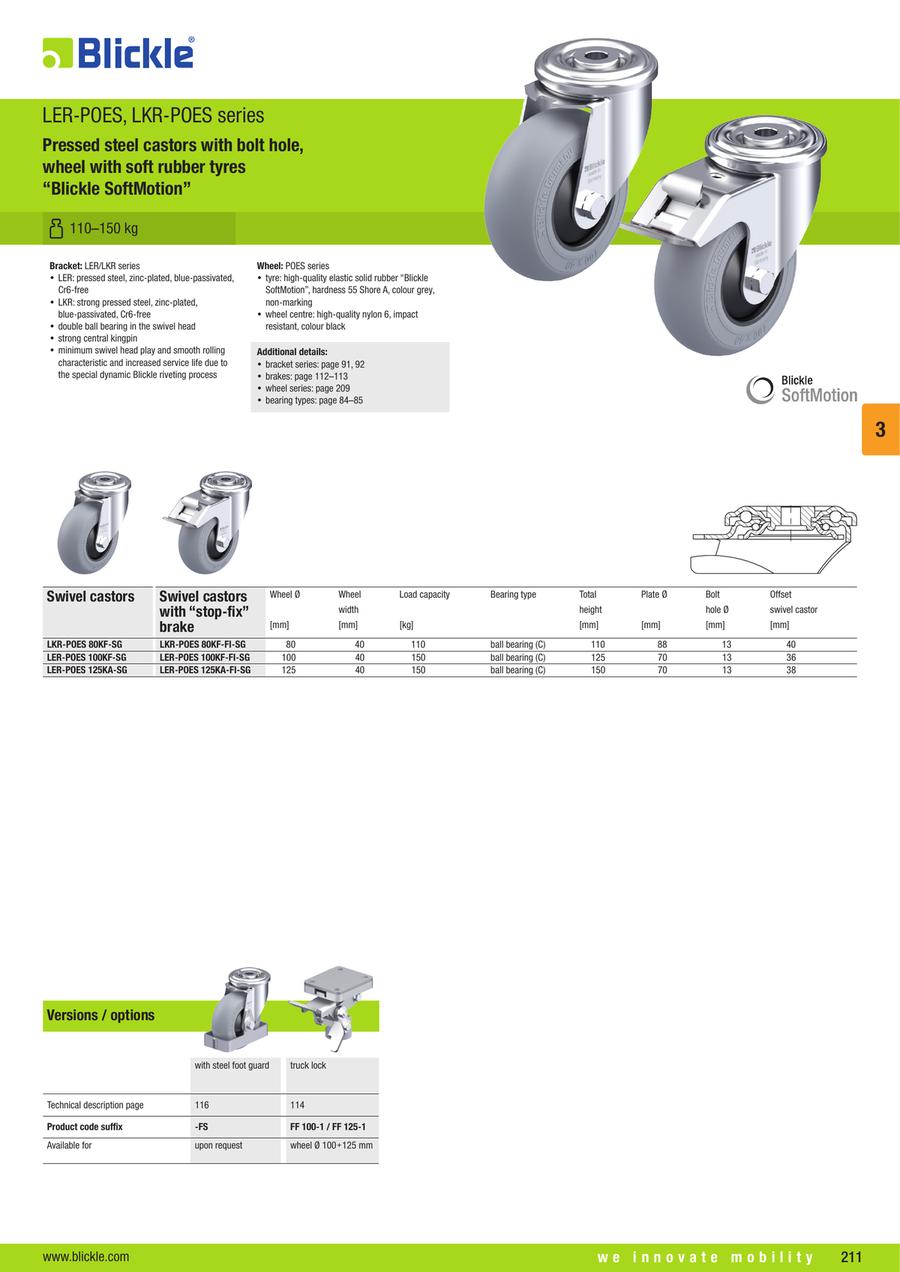

Pressed Steel Swivel Castor, LER-POES Series
Pressed Steel Swivel Castor, with Bolt Hole, Wheel, with 'Blickle Softmotion' Soft Rubber Tyre, with Nylon Wheel Centre, Non-Marking, Grey, with Synthetic Thread Guard
Bracket: LER series
Bracket: LER series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: POES series
- tyre: high-quality elastic solid rubber "Blickle SoftMotion", hardness 55 Shore A, colour grey, non-marking
- wheel centre: high-quality nylon 6, impact resistant, colour black
- with synthetic thread guard, large
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| LER-POES 100KF-FI-SG |
| LER-POES 100KF-SG |
| LER-POES 125KA-FI-SG |
| LER-POES 125KA-SG |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | |
|---|---|---|---|---|---|---|---|---|
71.39 € | 1 | 7 Days | swivel castor with brake | 125 | 812 | 100 | ||
48.58 € | 1 | 7 Days | swivel castor | 125 | 696 | 100 | ||
83.99 € | 1 | 7 Days | swivel castor with brake | 150 | 964 | 125 | ||
59.15 € | 1 | 7 Days | swivel castor | 150 | 821 | 125 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Mounting Height H(mm) | 125 | Load Range(daN) | 140.01 to 220.00 |
|---|---|---|---|---|---|
| Wheel Material | Engineering Plastics | Plate Length L(mm) | 70 | Wheel Dia. D(mm) | 100 |
| Wheel Width B(mm) | 32 | Bearing type | Ball bearing (C) | Material (details) | Tread material: Rubber, Wheel body material: high-quality nylon 6 |
| Material | Rubber | Wheel width(mm) | 40 | Suitable for autoclaves | no |
| Mounting type | bolt hole | Tread and tyre hardness | 55 Shore A | Tread color | grey |
| Wheel body color | black | Tread hydrolysis-resistant | no | Non-staining | yes |
| Rustproof | no | Non-marking | yes | Maximum temperature resistance(°C) | 80 |
| Minimum temperature resistance(°C) | -25 | Load capacity at 4 km/h(kg) | 150 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
