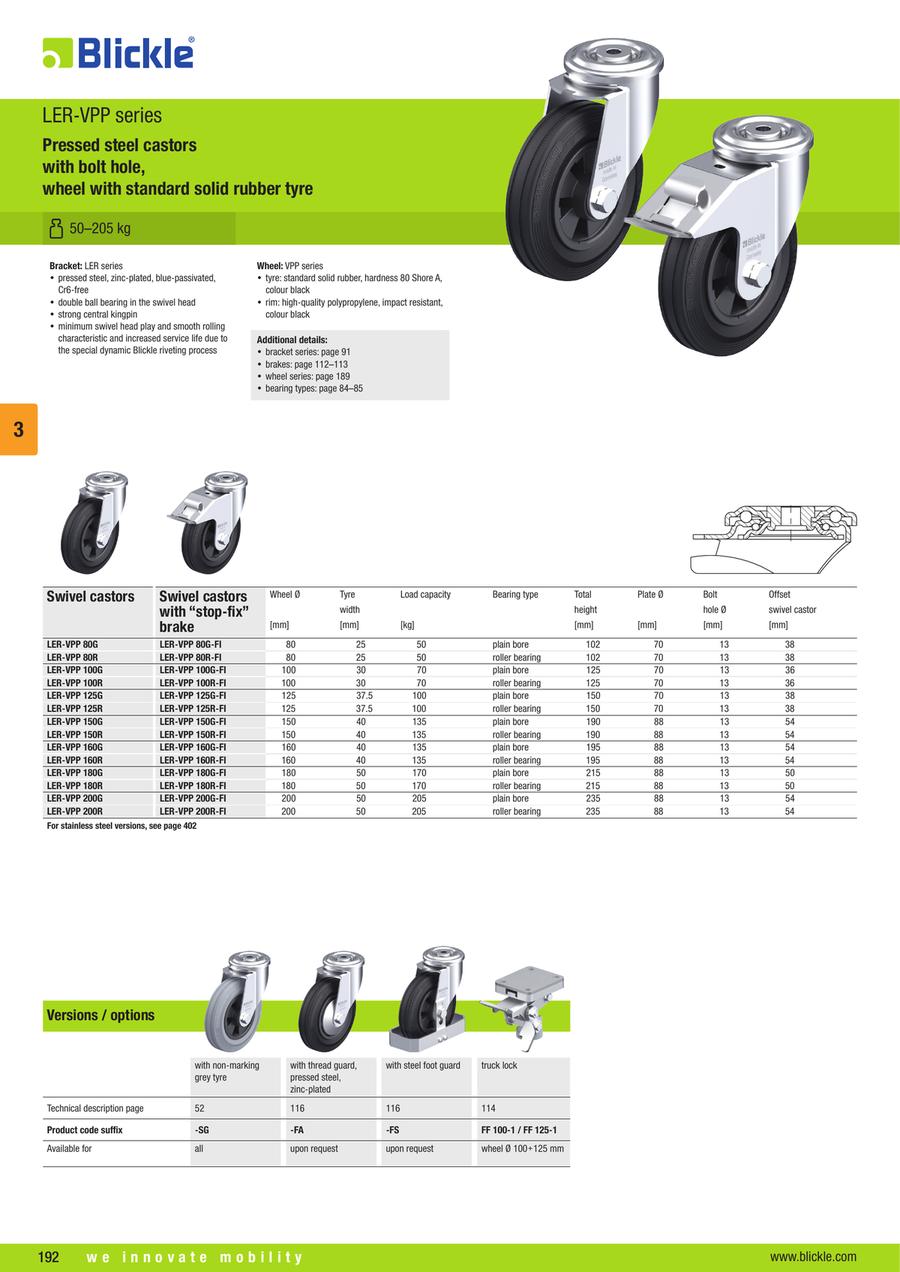

Pressed Steel Swivel Castor, LER-VPP Series
Bracket: LER series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: VPP series
- tyre: standard solid rubber, hardness 80 Shore A, colour black
- rim: high-quality polypropylene, impact resistant, colour black
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Wheel Characteristics | Plate Length L (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Tread color | Non-staining | Non-marking | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
25.17 € | 1 | 5 Days | 125 | 35.01 to 80.00 | Conductivity | 70 | 100 | 32 | plain bore | swivel castor | 102 | 460 | 80 | 25 | black | no | no | 50 | ||
37.95 € | 1 | 5 Days | 150 | 35.01 to 80.00 | - | 70 | 125 | 32 | plain bore | swivel castor with brake | 102 | 559 | 80 | 25 | black | no | no | 50 | ||
39.66 € | 1 | 7 Days | 150 | 35.01 to 80.00 | Conductivity | 70 | 125 | 32 | plain bore | swivel castor with brake | 102 | 567 | 80 | 25 | grey | yes | yes | 50 | ||
26.88 € | 1 | 7 Days | 150 | 35.01 to 80.00 | - | 70 | 125 | 32 | plain bore | swivel castor | 102 | 468 | 80 | 25 | grey | yes | yes | 50 | ||
27.60 € | 1 | 7 Days | 150 | 35.01 to 80.00 | Conductivity | 70 | 125 | 32 | roller bearing | swivel castor | 102 | 482 | 80 | 25 | black | no | no | 50 | ||
40.36 € | 1 | 7 Days | 150 | 35.01 to 80.00 | - | 70 | 125 | 32 | roller bearing | swivel castor with brake | 102 | 584 | 80 | 25 | black | no | no | 50 | ||
42.10 € | 1 | 7 Days | 150 | 35.01 to 80.00 | - | 70 | 125 | 32 | roller bearing | swivel castor with brake | 102 | 594 | 80 | 25 | grey | yes | yes | 50 | ||
29.32 € | 1 | 7 Days | 150 | 35.01 to 80.00 | Conductivity | 70 | 125 | 32 | roller bearing | swivel castor | 102 | 490 | 80 | 25 | grey | yes | yes | 50 | ||
27.42 € | 1 | 5 Days | 190 | 35.01 to 80.00 | - | 70 | 150 | 40 | plain bore | swivel castor | 125 | 588 | 100 | 30 | black | no | no | 70 | ||
41.03 € | 1 | 5 Days | 190 | 35.01 to 80.00 | - | 70 | 150 | 40 | plain bore | swivel castor with brake | 125 | 732 | 100 | 30 | black | no | no | 70 | ||
44.10 € | 1 | 7 Days | 190 | 35.01 to 80.00 | - | 70 | 150 | 40 | plain bore | swivel castor with brake | 125 | 726 | 100 | 30 | grey | yes | yes | 70 | ||
30.49 € | 1 | 7 Days | 190 | 35.01 to 80.00 | - | 70 | 150 | 40 | plain bore | swivel castor | 125 | 598 | 100 | 30 | grey | yes | yes | 70 | ||
30.83 € | 1 | 7 Days | 190 | 35.01 to 80.00 | - | 70 | 150 | 40 | roller bearing | swivel castor | 125 | 614 | 100 | 30 | black | no | no | 70 | ||
44.45 € | 1 | 7 Days | 195 | 35.01 to 80.00 | - | 70 | 160 | 40 | roller bearing | swivel castor with brake | 125 | 731 | 100 | 30 | black | no | no | 70 | ||
47.50 € | 1 | 7 Days | 195 | 35.01 to 80.00 | - | 70 | 160 | 40 | roller bearing | swivel castor with brake | 125 | 744 | 100 | 30 | grey | yes | yes | 70 | ||
33.90 € | 1 | 7 Days | 195 | 35.01 to 80.00 | - | 70 | 160 | 40 | roller bearing | swivel castor | 125 | 627 | 100 | 30 | grey | yes | yes | 70 | ||
30.83 € | 1 | 5 Days | 195 | 80.01 to 140.00 | - | 70 | 160 | 40 | plain bore | swivel castor | 150 | 773 | 125 | 38 | black | no | no | 100 | ||
46.71 € | 1 | 5 Days | 195 | 80.01 to 140.00 | - | 70 | 160 | 40 | plain bore | swivel castor with brake | 150 | 917 | 125 | 38 | black | no | no | 100 | ||
52.90 € | 1 | 7 Days | 195 | 80.01 to 140.00 | - | 70 | 160 | 40 | plain bore | swivel castor with brake | 150 | 974 | 125 | 38 | grey | yes | yes | 100 | ||
37.01 € | 1 | 7 Days | 195 | 80.01 to 140.00 | - | 70 | 160 | 40 | plain bore | swivel castor | 150 | 828 | 125 | 38 | grey | yes | yes | 100 | ||
32.55 € | 1 | 7 Days | 195 | 80.01 to 140.00 | - | 70 | 160 | 40 | roller bearing | swivel castor | 150 | 814 | 125 | 38 | black | no | no | 100 | ||
48.45 € | 1 | 7 Days | 215 | 80.01 to 140.00 | - | 70 | 180 | 50 | roller bearing | swivel castor with brake | 150 | 944 | 125 | 38 | black | no | no | 100 | ||
54.63 € | 1 | 7 Days | 215 | 80.01 to 140.00 | - | 70 | 180 | 50 | roller bearing | swivel castor with brake | 150 | 1012 | 125 | 38 | grey | yes | yes | 100 | ||
38.75 € | 1 | 7 Days | 215 | 80.01 to 140.00 | - | 70 | 180 | 50 | roller bearing | swivel castor | 150 | 874 | 125 | 38 | grey | yes | yes | 100 | ||
56.73 € | 1 | 7 Days | 215 | 80.01 to 140.00 | - | 88 | 180 | 50 | plain bore | swivel castor | 190 | 1531 | 150 | 40 | black | no | no | 135 | ||
84.88 € | 1 | 7 Days | 215 | 80.01 to 140.00 | - | 88 | 180 | 50 | plain bore | swivel castor with brake | 190 | 1910 | 150 | 40 | black | no | no | 135 | ||
95.64 € | 1 | 7 Days | 215 | 80.01 to 140.00 | - | 88 | 180 | 50 | plain bore | swivel castor with brake | 190 | 2034 | 150 | 40 | grey | yes | yes | 135 | ||
67.48 € | 1 | 7 Days | 215 | 80.01 to 140.00 | - | 88 | 180 | 50 | plain bore | swivel castor | 190 | 1650 | 150 | 40 | grey | yes | yes | 135 | ||
59.18 € | 1 | 7 Days | 215 | 80.01 to 140.00 | - | 88 | 180 | 50 | roller bearing | swivel castor | 190 | 1632 | 150 | 40 | black | no | no | 135 | ||
87.33 € | 1 | 7 Days | 235 | 80.01 to 140.00 | - | 88 | 200 | 50 | roller bearing | swivel castor with brake | 190 | 2046 | 150 | 40 | black | no | no | 135 | ||
98.07 € | 1 | 7 Days | 235 | 80.01 to 140.00 | - | 88 | 200 | 50 | roller bearing | swivel castor with brake | 190 | 2200 | 150 | 40 | grey | yes | yes | 135 | ||
69.92 € | 1 | 7 Days | 235 | 80.01 to 140.00 | - | 88 | 200 | 50 | roller bearing | swivel castor | 190 | 1788 | 150 | 40 | grey | yes | yes | 135 | ||
56.90 € | 1 | 7 Days | 235 | 80.01 to 140.00 | - | 88 | 200 | 50 | plain bore | swivel castor | 195 | 1626 | 160 | 40 | black | no | no | 135 | ||
85.05 € | 1 | 7 Days | 235 | 80.01 to 140.00 | - | 88 | 200 | 50 | plain bore | swivel castor with brake | 195 | 2000 | 160 | 40 | black | no | no | 135 | ||
96.56 € | 1 | 7 Days | 235 | 80.01 to 140.00 | - | 88 | 200 | 50 | plain bore | swivel castor with brake | 195 | 2148 | 160 | 40 | grey | yes | yes | 135 | ||
68.42 € | 1 | 7 Days | 235 | 80.01 to 140.00 | - | 88 | 200 | 50 | plain bore | swivel castor | 195 | 1741 | 160 | 40 | grey | yes | yes | 135 | ||
59.33 € | 1 | 7 Days | 235 | 80.01 to 140.00 | - | 88 | 200 | 50 | roller bearing | swivel castor | 195 | 1717 | 160 | 40 | black | no | no | 135 | ||
87.47 € | 1 | 7 Days | 102 | 80.01 to 140.00 | - | 88 | 80 | 25 | roller bearing | swivel castor with brake | 195 | 2139 | 160 | 40 | black | no | no | 135 | ||
99.00 € | 1 | 7 Days | 102 | 80.01 to 140.00 | - | 88 | 80 | 25 | roller bearing | swivel castor with brake | 195 | 2222 | 160 | 40 | grey | yes | yes | 135 | ||
70.85 € | 1 | 7 Days | 102 | 80.01 to 140.00 | - | 88 | 80 | 25 | roller bearing | swivel castor | 195 | 1824 | 160 | 40 | grey | yes | yes | 135 | ||
70.62 € | 1 | 7 Days | 102 | 140.01 to 220.00 | - | 88 | 80 | 25 | plain bore | swivel castor | 215 | 1900 | 180 | 50 | black | no | no | 170 | ||
114.81 € | 1 | 7 Days | 102 | 140.01 to 220.00 | - | 88 | 80 | 25 | plain bore | swivel castor with brake | 215 | 2400 | 180 | 50 | black | no | no | 170 | ||
129.30 € | 1 | 7 Days | 102 | 140.01 to 220.00 | - | 88 | 80 | 25 | plain bore | swivel castor with brake | 215 | 2500 | 180 | 50 | grey | yes | yes | 170 | ||
85.12 € | 1 | 7 Days | 102 | 140.01 to 220.00 | - | 88 | 80 | 25 | plain bore | swivel castor | 215 | 2140 | 180 | 50 | grey | yes | yes | 170 | ||
72.91 € | 1 | 7 Days | 102 | 140.01 to 220.00 | - | 88 | 80 | 25 | roller bearing | swivel castor | 215 | 2013 | 180 | 50 | black | no | no | 170 | ||
117.10 € | 1 | 7 Days | 125 | 140.01 to 220.00 | - | 88 | 100 | 32 | roller bearing | swivel castor with brake | 215 | 2471 | 180 | 50 | black | no | no | 170 | ||
131.60 € | 1 | 7 Days | 125 | 140.01 to 220.00 | Conductivity | 88 | 100 | 32 | roller bearing | swivel castor with brake | 215 | 2605 | 180 | 50 | grey | yes | yes | 170 | ||
87.42 € | 1 | 7 Days | 125 | 140.01 to 220.00 | - | 88 | 100 | 32 | roller bearing | swivel castor | 215 | 2161 | 180 | 50 | grey | yes | yes | 170 | ||
67.02 € | 1 | 5 Days | 125 | 140.01 to 220.00 | Conductivity | 88 | 100 | 32 | plain bore | swivel castor | 235 | 2202 | 200 | 50 | black | no | no | 205 | ||
101.54 € | 1 | 7 Days | 125 | 140.01 to 220.00 | - | 88 | 100 | 32 | plain bore | swivel castor with brake | 235 | 2674 | 200 | 50 | black | no | no | 205 | ||
124.18 € | 1 | 7 Days | 125 | 140.01 to 220.00 | - | 88 | 100 | 32 | plain bore | swivel castor with brake | 235 | 2900 | 200 | 50 | grey | yes | yes | 205 | ||
89.67 € | 1 | 7 Days | 125 | 140.01 to 220.00 | Conductivity | 88 | 100 | 32 | plain bore | swivel castor | 235 | 2392 | 200 | 50 | grey | yes | yes | 205 | ||
67.98 € | 1 | 7 Days | 125 | 140.01 to 220.00 | - | 88 | 100 | 32 | roller bearing | swivel castor | 235 | 2288 | 200 | 50 | black | no | no | 205 | ||
102.50 € | 1 | 7 Days | 125 | 140.01 to 220.00 | Conductivity | 88 | 100 | 32 | roller bearing | swivel castor with brake | 235 | 3238 | 200 | 50 | black | no | no | 205 | ||
125.15 € | 1 | 7 Days | 125 | 140.01 to 220.00 | Conductivity | 88 | 100 | 32 | roller bearing | swivel castor with brake | 235 | 3000 | 200 | 50 | grey | yes | yes | 205 | ||
90.63 € | 1 | 7 Days | 125 | 140.01 to 220.00 | - | 88 | 100 | 32 | roller bearing | swivel castor | 235 | 2513 | 200 | 50 | grey | yes | yes | 205 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Wheel Material | Engineering Plastics | Material (details) | Tread material: Rubber, Wheel body material: high-quality polypropylene |
|---|---|---|---|---|---|
| Material | Rubber | Suitable for autoclaves | no | Mounting type | bolt hole |
| Tread and tyre hardness | 80 Shore A | Wheel body color | black | Tread hydrolysis-resistant | no |
| Rustproof | no | Maximum temperature resistance(°C) | 60 | Minimum temperature resistance(°C) | -20 |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- 35.01 to 80.00
- 80.01 to 140.00
- 140.01 to 220.00
-
Wheel Characteristics
- Conductivity
-
Plate Length L(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- plain bore
- roller bearing
-
Product type
- swivel castor
- swivel castor with brake
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Tread color
-
Non-staining
- no
- yes
-
Non-marking
- no
- yes
-
Load capacity at 4 km/h(kg)
-
Type
- LER-VPP
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
