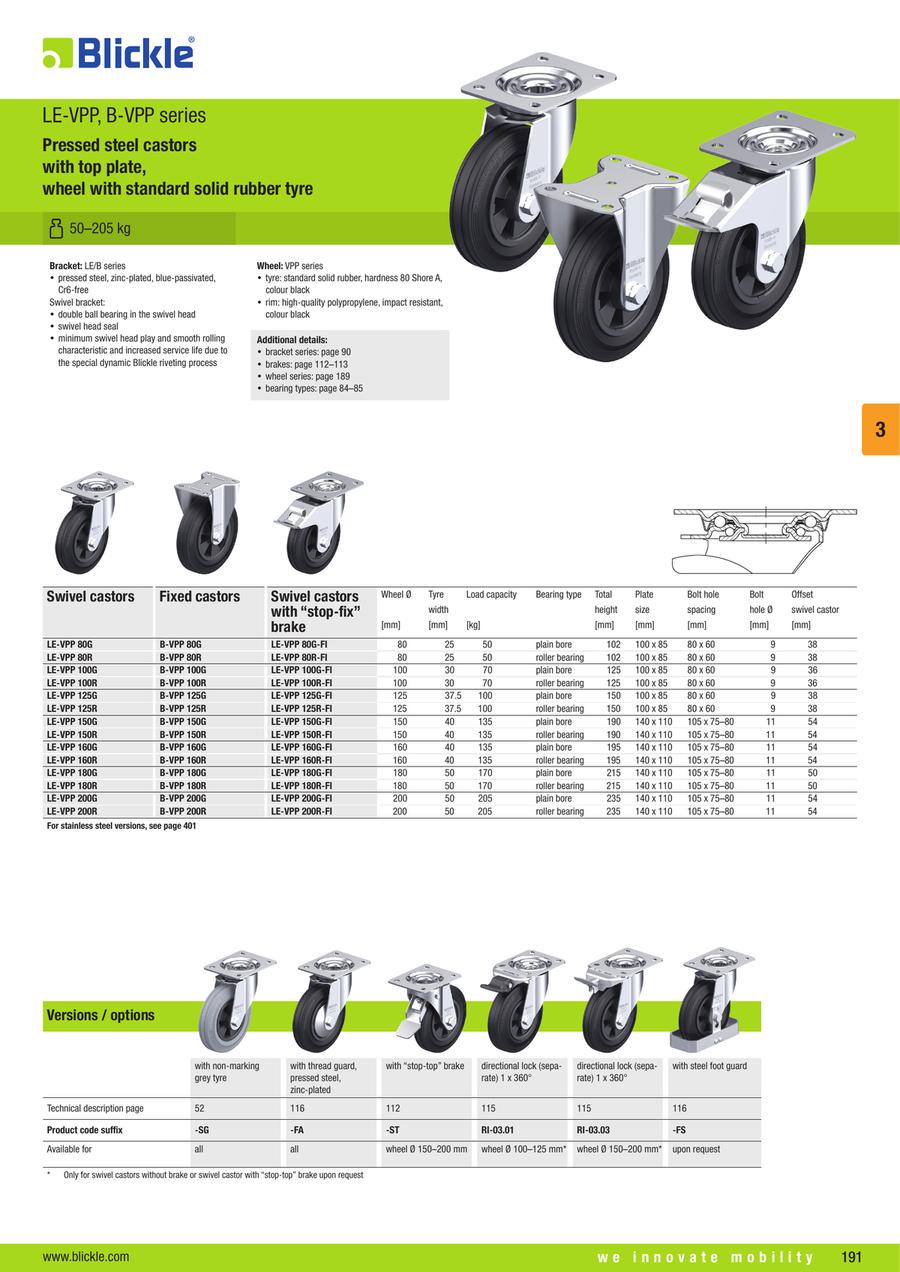

Pressed Steel Swivel Castor, LE-VPP Series
Bracket: LE series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: VPP series
- tyre: standard solid rubber, hardness 80 Shore A, colour black
- rim: high-quality polypropylene, impact resistant, colour black
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Wheel Characteristics | Plate Length L (mm) | Plate Width W (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Tread color | Non-staining | Non-marking | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
18.50 € | 1 | 5 Days | 125 | 35.01 to 80.00 | Conductivity | 100 | 85 | 100 | 32 | plain bore | swivel castor | 102 | 503 | 80 | 25 | black | no | no | 50 | ||
25.07 € | 1 | 7 Days | 125 | 35.01 to 80.00 | - | 100 | 85 | 100 | 32 | plain bore | swivel castor | 102 | 516 | 80 | 25 | black | no | no | 50 | ||
28.30 € | 1 | 5 Days | 125 | 35.01 to 80.00 | Conductivity | 100 | 85 | 100 | 32 | plain bore | swivel castor with brake | 102 | 594 | 80 | 25 | black | no | no | 50 | ||
34.86 € | 1 | 7 Days | 150 | 35.01 to 80.00 | - | 100 | 85 | 125 | 32 | plain bore | swivel castor with brake | 102 | 624 | 80 | 25 | black | no | no | 50 | ||
30.01 € | 1 | 7 Days | 150 | 35.01 to 80.00 | - | 100 | 85 | 125 | 32 | plain bore | swivel castor with brake | 102 | 609 | 80 | 25 | grey | yes | yes | 50 | ||
36.59 € | 1 | 7 Days | 150 | 35.01 to 80.00 | - | 100 | 85 | 125 | 32 | plain bore | swivel castor with brake | 102 | 535 | 80 | 25 | grey | yes | yes | 50 | ||
20.24 € | 1 | 7 Days | 150 | 35.01 to 80.00 | Conductivity | 100 | 85 | 125 | 32 | plain bore | swivel castor | 102 | 500 | 80 | 25 | grey | yes | yes | 50 | ||
26.78 € | 1 | 7 Days | 150 | 35.01 to 80.00 | - | 100 | 85 | 125 | 32 | plain bore | swivel castor | 102 | 469 | 80 | 25 | grey | yes | yes | 50 | ||
20.94 € | 1 | 7 Days | 150 | 35.01 to 80.00 | Conductivity | 100 | 85 | 125 | 32 | roller bearing | swivel castor | 102 | 519 | 80 | 25 | black | no | no | 50 | ||
27.50 € | 1 | 23 Days | 195 | 35.01 to 80.00 | - | 100 | 85 | 160 | 40 | roller bearing | swivel castor | 102 | 538 | 80 | 25 | black | no | no | 50 | ||
30.73 € | 1 | 7 Days | 195 | 35.01 to 80.00 | - | 100 | 85 | 160 | 40 | roller bearing | swivel castor with brake | 102 | 628 | 80 | 25 | black | no | no | 50 | ||
37.29 € | 1 | 7 Days | 195 | 35.01 to 80.00 | - | 100 | 85 | 160 | 40 | roller bearing | swivel castor with brake | 102 | 650 | 80 | 25 | black | no | no | 50 | ||
32.45 € | 1 | 7 Days | 195 | 35.01 to 80.00 | Conductivity | 100 | 85 | 160 | 40 | roller bearing | swivel castor with brake | 102 | 637 | 80 | 25 | grey | yes | yes | 50 | ||
39.02 € | 1 | 7 Days | 195 | 35.01 to 80.00 | - | 100 | 85 | 160 | 40 | roller bearing | swivel castor with brake | 102 | 666 | 80 | 25 | grey | yes | yes | 50 | ||
22.65 € | 1 | 7 Days | 195 | 35.01 to 80.00 | Conductivity | 100 | 85 | 160 | 40 | roller bearing | swivel castor | 102 | 533 | 80 | 25 | grey | yes | yes | 50 | ||
29.21 € | 1 | 7 Days | 235 | 35.01 to 80.00 | - | 100 | 85 | 200 | 40 | roller bearing | swivel castor | 102 | 556 | 80 | 25 | grey | yes | yes | 50 | ||
20.53 € | 1 | 5 Days | 150 | 35.01 to 80.00 | - | 100 | 85 | 125 | 38 | plain bore | swivel castor | 125 | 627 | 100 | 30 | black | no | no | 70 | ||
28.12 € | 1 | 7 Days | 150 | 35.01 to 80.00 | - | 100 | 85 | 125 | 38 | plain bore | swivel castor | 125 | 690 | 100 | 30 | black | no | no | 70 | ||
31.11 € | 1 | 5 Days | 150 | 35.01 to 80.00 | - | 100 | 85 | 125 | 38 | plain bore | swivel castor with brake | 125 | 741 | 100 | 30 | black | no | no | 70 | ||
38.70 € | 1 | 7 Days | 150 | 35.01 to 80.00 | - | 100 | 85 | 125 | 38 | plain bore | swivel castor with brake | 125 | 768 | 100 | 30 | black | no | no | 70 | ||
34.18 € | 1 | 7 Days | 150 | 35.01 to 80.00 | - | 100 | 85 | 125 | 38 | plain bore | swivel castor with brake | 125 | 756 | 100 | 30 | grey | yes | yes | 70 | ||
41.77 € | 1 | 7 Days | 150 | 35.01 to 80.00 | - | 100 | 85 | 125 | 38 | plain bore | swivel castor with brake | 125 | 780 | 100 | 30 | grey | yes | yes | 70 | ||
23.58 € | 1 | 7 Days | 150 | 35.01 to 80.00 | - | 100 | 85 | 125 | 38 | plain bore | swivel castor | 125 | 660 | 100 | 30 | grey | yes | yes | 70 | ||
31.17 € | 1 | 7 Days | 150 | 35.01 to 80.00 | - | 100 | 85 | 125 | 38 | plain bore | swivel castor | 125 | 663 | 100 | 30 | grey | yes | yes | 70 | ||
23.94 € | 1 | 5 Days | 150 | 35.01 to 80.00 | - | 100 | 85 | 125 | 38 | roller bearing | swivel castor | 125 | 660 | 100 | 30 | black | no | no | 70 | ||
31.51 € | 1 | 7 Days | 150 | 35.01 to 80.00 | - | 100 | 85 | 125 | 38 | roller bearing | swivel castor | 125 | 676 | 100 | 30 | black | no | no | 70 | ||
34.54 € | 1 | 5 Days | 150 | 35.01 to 80.00 | - | 100 | 85 | 125 | 38 | roller bearing | swivel castor with brake | 125 | 770 | 100 | 30 | black | no | no | 70 | ||
42.11 € | 1 | 7 Days | 150 | 35.01 to 80.00 | - | 100 | 85 | 125 | 38 | roller bearing | swivel castor with brake | 125 | 799 | 100 | 30 | black | no | no | 70 | ||
37.59 € | 1 | 7 Days | 150 | 35.01 to 80.00 | - | 100 | 85 | 125 | 38 | roller bearing | swivel castor with brake | 125 | 790 | 100 | 30 | grey | yes | yes | 70 | ||
45.16 € | 1 | 7 Days | 190 | 35.01 to 80.00 | - | 100 | 85 | 150 | 40 | roller bearing | swivel castor with brake | 125 | 820 | 100 | 30 | grey | yes | yes | 70 | ||
27.00 € | 1 | 7 Days | 190 | 35.01 to 80.00 | - | 100 | 85 | 150 | 40 | roller bearing | swivel castor | 125 | 686 | 100 | 30 | grey | yes | yes | 70 | ||
34.58 € | 1 | 7 Days | 190 | 35.01 to 80.00 | - | 100 | 85 | 150 | 40 | roller bearing | swivel castor | 125 | 702 | 100 | 30 | grey | yes | yes | 70 | ||
23.58 € | 1 | 5 Days | 190 | 80.01 to 140.00 | - | 100 | 85 | 150 | 40 | plain bore | swivel castor | 150 | 827 | 125 | 38 | black | no | no | 100 | ||
31.17 € | 1 | 7 Days | 190 | 80.01 to 140.00 | - | 100 | 85 | 150 | 40 | plain bore | swivel castor | 150 | 846 | 125 | 38 | black | no | no | 100 | ||
34.83 € | 1 | 5 Days | 190 | 80.01 to 140.00 | - | 100 | 85 | 150 | 40 | plain bore | swivel castor with brake | 150 | 966 | 125 | 38 | black | no | no | 100 | ||
42.42 € | 1 | 7 Days | 190 | 80.01 to 140.00 | - | 100 | 85 | 150 | 40 | plain bore | swivel castor with brake | 150 | 982 | 125 | 38 | black | no | no | 100 | ||
41.03 € | 1 | 7 Days | 190 | 80.01 to 140.00 | - | 100 | 85 | 150 | 40 | plain bore | swivel castor with brake | 150 | 1037 | 125 | 38 | grey | yes | yes | 100 | ||
48.60 € | 1 | 7 Days | 190 | 80.01 to 140.00 | - | 100 | 85 | 150 | 40 | plain bore | swivel castor with brake | 150 | 952 | 125 | 38 | grey | yes | yes | 100 | ||
29.79 € | 1 | 7 Days | 190 | 80.01 to 140.00 | - | 100 | 85 | 150 | 40 | plain bore | swivel castor | 150 | 867 | 125 | 38 | grey | yes | yes | 100 | ||
37.35 € | 1 | 7 Days | 190 | 80.01 to 140.00 | - | 100 | 85 | 150 | 40 | plain bore | swivel castor | 150 | 913 | 125 | 38 | grey | yes | yes | 100 | ||
25.32 € | 1 | 5 Days | 190 | 80.01 to 140.00 | - | 100 | 85 | 150 | 40 | roller bearing | swivel castor | 150 | 851 | 125 | 38 | black | no | no | 100 | ||
32.90 € | 1 | 7 Days | 190 | 80.01 to 140.00 | - | 100 | 85 | 150 | 40 | roller bearing | swivel castor | 150 | 901 | 125 | 38 | black | no | no | 100 | ||
36.56 € | 1 | 5 Days | 190 | 80.01 to 140.00 | - | 100 | 85 | 150 | 40 | roller bearing | swivel castor with brake | 150 | 985 | 125 | 38 | black | no | no | 100 | ||
44.15 € | 1 | 7 Days | 190 | 80.01 to 140.00 | - | 100 | 85 | 150 | 40 | roller bearing | swivel castor with brake | 150 | 1002 | 125 | 38 | black | no | no | 100 | ||
42.75 € | 1 | 7 Days | 190 | 80.01 to 140.00 | - | 100 | 85 | 150 | 40 | roller bearing | swivel castor with brake | 150 | 1048 | 125 | 38 | grey | yes | yes | 100 | ||
50.33 € | 1 | 7 Days | 190 | 80.01 to 140.00 | - | 100 | 85 | 150 | 40 | roller bearing | swivel castor with brake | 150 | 1070 | 125 | 38 | grey | yes | yes | 100 | ||
31.50 € | 1 | 7 Days | 190 | 80.01 to 140.00 | - | 100 | 85 | 150 | 40 | roller bearing | swivel castor | 150 | 918 | 125 | 38 | grey | yes | yes | 100 | ||
39.09 € | 1 | 7 Days | 190 | 80.01 to 140.00 | - | 100 | 85 | 150 | 40 | roller bearing | swivel castor | 150 | 944 | 125 | 38 | grey | yes | yes | 100 | ||
40.93 € | 1 | 7 Days | 190 | 80.01 to 140.00 | - | 140 | 110 | 150 | 40 | plain bore | swivel castor | 190 | 1668 | 150 | 40 | black | no | no | 135 | ||
50.61 € | 1 | 7 Days | 190 | 80.01 to 140.00 | - | 140 | 110 | 150 | 40 | plain bore | swivel castor | 190 | 1758 | 150 | 40 | black | no | no | 135 | ||
62.60 € | 1 | 5 Days | 190 | 80.01 to 140.00 | - | 140 | 110 | 150 | 40 | plain bore | swivel castor with brake | 190 | 2109 | 150 | 40 | black | no | no | 135 | ||
72.29 € | 1 | 23 Days | 190 | 80.01 to 140.00 | - | 140 | 110 | 150 | 40 | plain bore | swivel castor with brake | 190 | 2157 | 150 | 40 | black | no | no | 135 | ||
73.35 € | 1 | 7 Days | 190 | 80.01 to 140.00 | - | 140 | 110 | 150 | 40 | plain bore | swivel castor with brake | 190 | 2220 | 150 | 40 | grey | yes | yes | 135 | ||
83.03 € | 1 | 7 Days | 195 | 80.01 to 140.00 | - | 140 | 110 | 160 | 40 | plain bore | swivel castor with brake | 190 | 2294 | 150 | 40 | grey | yes | yes | 135 | ||
51.68 € | 1 | 7 Days | 195 | 80.01 to 140.00 | - | 140 | 110 | 160 | 40 | plain bore | swivel castor | 190 | 1830 | 150 | 40 | grey | yes | yes | 135 | ||
61.35 € | 1 | 7 Days | 195 | 80.01 to 140.00 | - | 140 | 110 | 160 | 40 | plain bore | swivel castor | 190 | 1900 | 150 | 40 | grey | yes | yes | 135 | ||
65.30 € | 1 | 7 Days | 195 | 80.01 to 140.00 | - | 140 | 110 | 160 | 40 | plain bore | swivel castor with brake | 190 | 2000 | 150 | 40 | black | no | no | 135 | ||
74.98 € | 1 | 7 Days | 195 | 80.01 to 140.00 | - | 140 | 110 | 160 | 40 | plain bore | swivel castor with brake | 190 | 2050 | 150 | 40 | black | no | no | 135 | ||
76.03 € | 1 | 7 Days | 195 | 80.01 to 140.00 | - | 140 | 110 | 160 | 40 | plain bore | swivel castor with brake | 190 | 2092 | 150 | 40 | grey | yes | yes | 135 | ||
85.72 € | 1 | 7 Days | 195 | 80.01 to 140.00 | - | 140 | 110 | 160 | 40 | plain bore | swivel castor with brake | 190 | 2163 | 150 | 40 | grey | yes | yes | 135 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Wheel Material | Engineering Plastics | Material (details) | Tread material: Rubber, Wheel body material: high-quality polypropylene |
|---|---|---|---|---|---|
| Material | Rubber | Suitable for autoclaves | no | Mounting type | top plate |
| Tread and tyre hardness | 80 Shore A | Wheel body color | black | Tread hydrolysis-resistant | no |
| Rustproof | no | Maximum temperature resistance(°C) | 60 | Minimum temperature resistance(°C) | -20 |
