Configure
- Mounting Height H(mm)
- 102
- 130
- 235
- Wheel Dia. D(mm)
- 80
- 100
- 200
- Wheel Width B(mm)
- 25
- 35
- 50
- Bearing type
- Product type
- Weight(g)
- 840
- 898
- 948
- 1010
- Type
- Est. shipping days
- All
- Within 7 working days

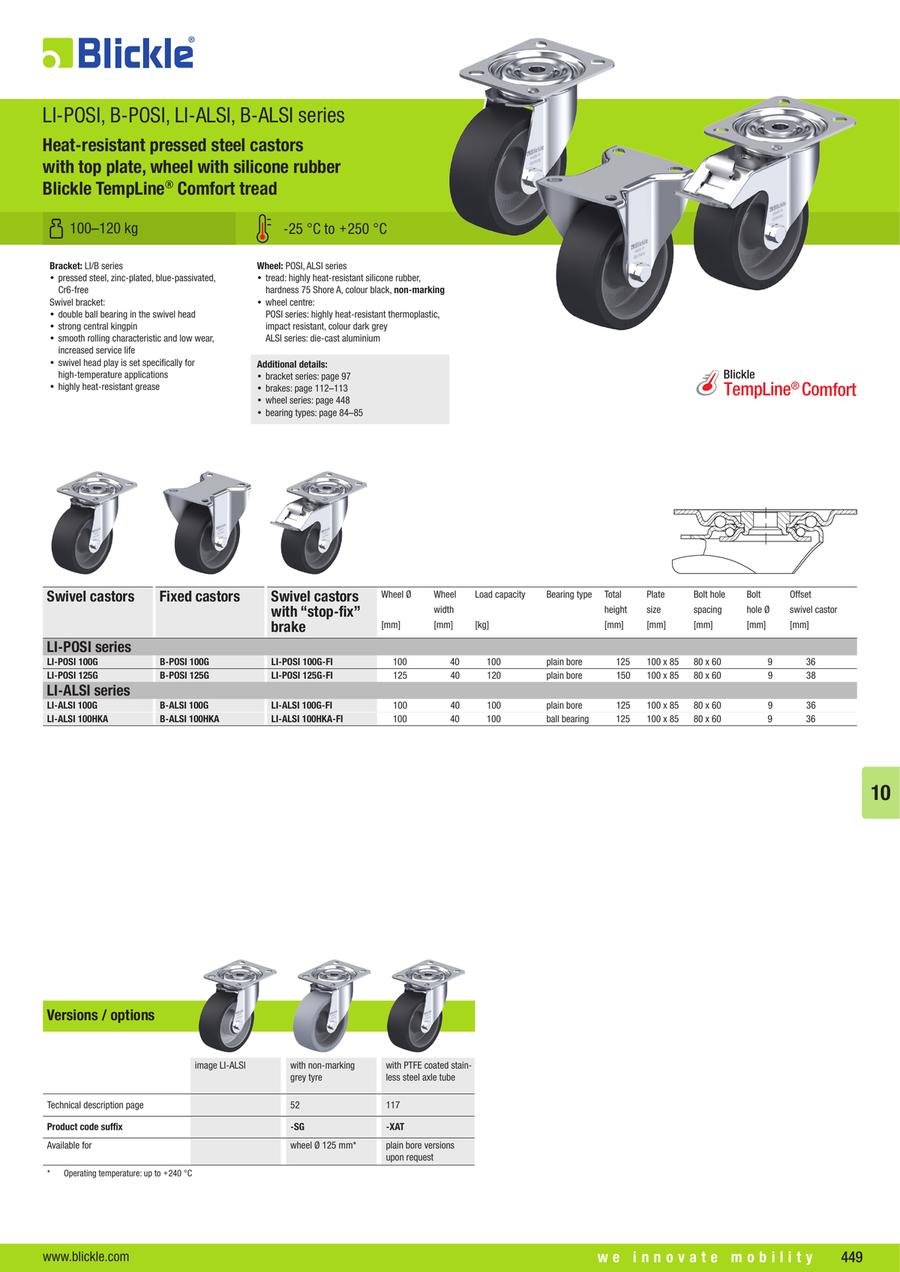

Pressed Steel Swivel Castor, LI-ALSI Series
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
79.32 € ( 94.39 € ) | 7 working days |
90.60 € ( 107.81 € ) | 7 working days |
96.55 € ( 114.89 € ) | 7 working days |
108.03 € ( 128.56 € ) | 7 working days |
More Information
Basic information
Pressed Steel Swivel Castor, with Top Plate Fitting, Heat-Resistant, Blickle Templine® Comfort Wheel, with Silicone Rubber Tread, with Aluminium Wheel Centre, Heat-Resistant
Bracket: LI series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- smooth rolling characteristic and low wear, increased service life
- swivel head play is set specifically for high-temperature applications
- highly heat-resistant grease
Wheel: ALSI series
- Tread: highly heat-resistant silicone rubber, hardness 75 Shore A, colour black, non-marking
- wheel centre: die-cast aluminium
- chemical resistance to many aggressive substances
- operating temperature: -25 °C to +250 °C
- oven temperature temporarily up to +300 °C, wheel temperature must not exceed +250 °C
