Pressed Steel Swivel Castor, LIK-POH Series
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
68.62 € ( 81.66 € ) | 23 working days |
87.08 € ( 103.63 € ) | 23 working days |
88.40 € ( 105.20 € ) | 23 working days |
107.37 € ( 127.77 € ) | 23 working days |
71.69 € ( 85.31 € ) | 23 working days |
89.77 € ( 106.83 € ) | 23 working days |
99.81 € ( 118.77 € ) | 23 working days |
118.38 € ( 140.87 € ) | 23 working days |
More Information
Basic information

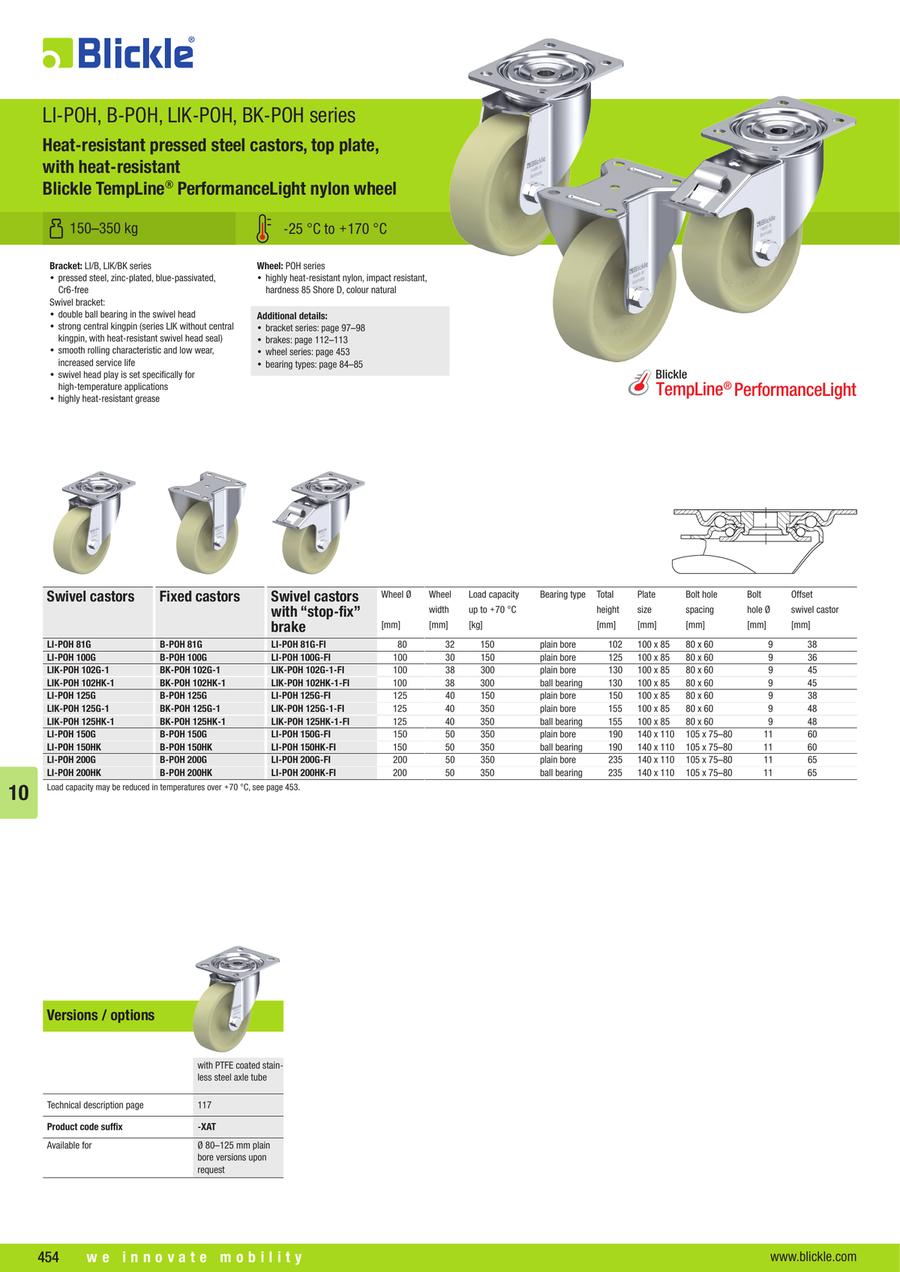

Pressed Steel Swivel Castor, with Top Plate Fitting, Heat-Resistant, Nylon Wheel
Bracket: LIK series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- swivel head play is set specifically for high-temperature applications
- highly heat-resistant grease
Wheel: POH series
- highly heat-resistant nylon, impact resistant, hardness 85 Shore D, colour natural
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +170 °C
- oven temperature temporarily up to +200 °C, wheel temperature must not exceed +170 °C
- Load capacity may be reduced in temperatures over +70 °C
