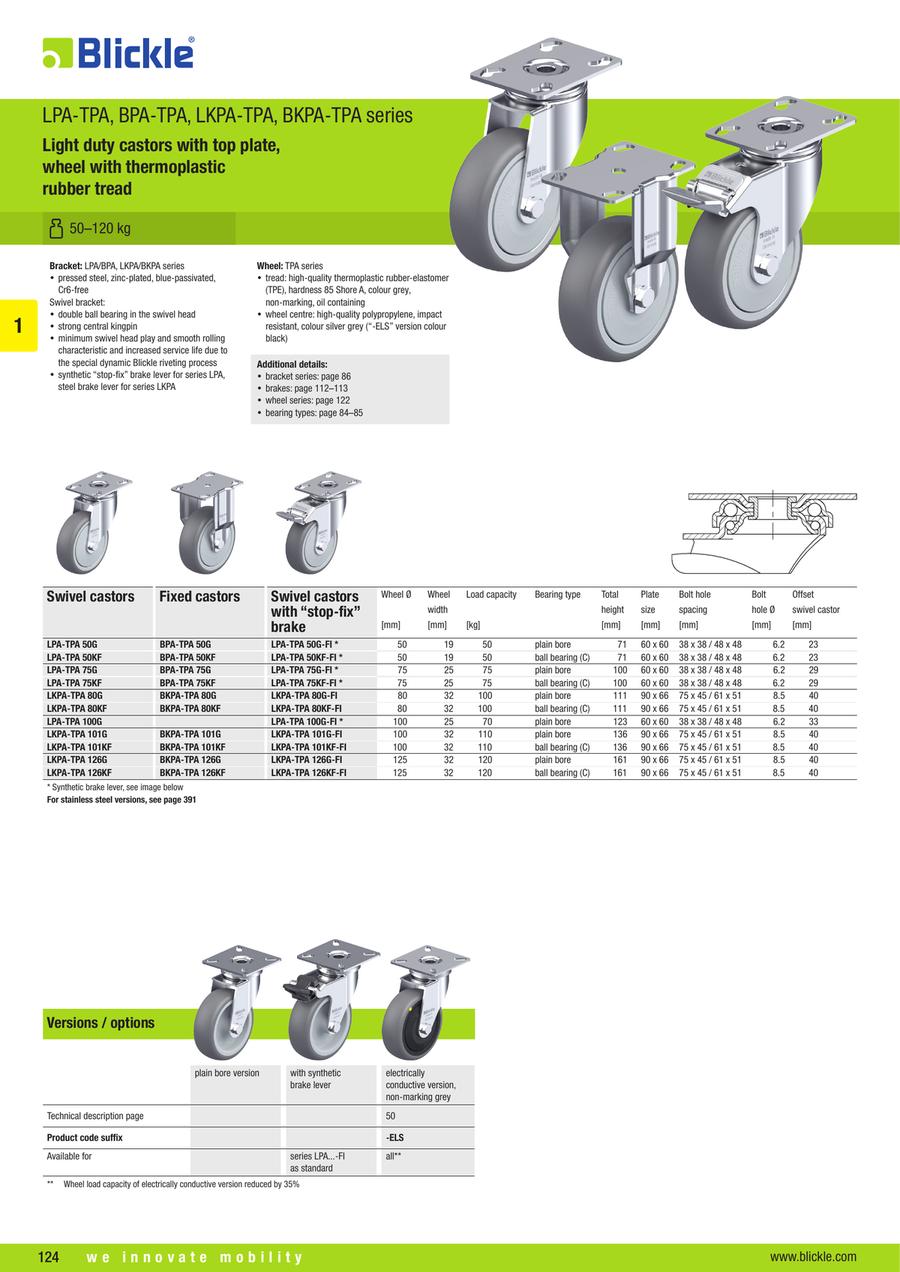

Light Duty Swivel Castor, LKPA-TPA Series
Bracket: LKPA series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: TPA series
- tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
- wheel centre: high-quality polypropylene, impact resistant, colour silver grey
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
- tread contains oil, may stain sensitive surfaces. alternatives: series VPA, VPP, POES, POEV, PATH
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Wheel Characteristics | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel body color | Load capacity at 3 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
22.62 € | 1 | 5 Days | 136 | 80.01 to 140.00 | - | 100 | 32 | plain bore | swivel castor | 111 | 557 | 80 | silver grey | 100 | ||
30.44 € | 1 | 7 Days | 161 | 35.01 to 80.00 | - | 125 | 25 | plain bore | swivel castor | 111 | 567 | 80 | black | 65 | ||
36.55 € | 1 | 5 Days | 161 | 80.01 to 140.00 | - | 125 | 25 | plain bore | swivel castor with brake | 111 | 662 | 80 | silver grey | 100 | ||
44.36 € | 1 | 7 Days | 161 | 35.01 to 80.00 | - | 125 | 25 | plain bore | swivel castor with brake | 111 | 680 | 80 | black | 65 | ||
27.03 € | 1 | 5 Days | 161 | 80.01 to 140.00 | - | 125 | 25 | Ball bearing (C) | swivel castor | 111 | 604 | 80 | silver grey | 100 | ||
34.85 € | 1 | 7 Days | 161 | 35.01 to 80.00 | - | 125 | 25 | Ball bearing (C) | swivel castor | 111 | 606 | 80 | black | 65 | ||
40.75 € | 1 | 5 Days | 161 | 80.01 to 140.00 | Conductivity | 125 | 25 | Ball bearing (C) | swivel castor with brake | 111 | 715 | 80 | silver grey | 100 | ||
48.57 € | 1 | 7 Days | 161 | 35.01 to 80.00 | Conductivity | 125 | 25 | Ball bearing (C) | swivel castor with brake | 111 | 728 | 80 | black | 65 | ||
24.67 € | 1 | 5 Days | 111 | 80.01 to 140.00 | Conductivity | 80 | 32 | plain bore | swivel castor | 136 | 620 | 100 | silver grey | 110 | ||
35.30 € | 1 | 7 Days | 111 | 35.01 to 80.00 | - | 80 | 32 | plain bore | swivel castor | 136 | 636 | 100 | black | 70 | ||
38.85 € | 1 | 5 Days | 111 | 80.01 to 140.00 | Conductivity | 80 | 32 | plain bore | swivel castor with brake | 136 | 735 | 100 | silver grey | 110 | ||
49.49 € | 1 | 5 Days | 111 | 35.01 to 80.00 | - | 80 | 32 | plain bore | swivel castor with brake | 136 | 744 | 100 | black | 70 | ||
30.90 € | 1 | 5 Days | 111 | 80.01 to 140.00 | Conductivity | 80 | 32 | Ball bearing (C) | swivel castor | 136 | 680 | 100 | silver grey | 110 | ||
41.54 € | 1 | 7 Days | 136 | 35.01 to 80.00 | - | 100 | 32 | Ball bearing (C) | swivel castor | 136 | 686 | 100 | black | 70 | ||
44.85 € | 1 | 5 Days | 136 | 80.01 to 140.00 | - | 100 | 32 | Ball bearing (C) | swivel castor with brake | 136 | 793 | 100 | silver grey | 110 | ||
55.50 € | 1 | 5 Days | 136 | 35.01 to 80.00 | - | 100 | 32 | Ball bearing (C) | swivel castor with brake | 136 | 801 | 100 | black | 70 | ||
28.32 € | 1 | 5 Days | 136 | 80.01 to 140.00 | - | 100 | 32 | plain bore | swivel castor | 161 | 707 | 125 | silver grey | 120 | ||
39.42 € | 1 | 7 Days | 136 | 35.01 to 80.00 | - | 100 | 32 | plain bore | swivel castor | 161 | 723 | 125 | black | 80 | ||
41.87 € | 1 | 5 Days | 136 | 80.01 to 140.00 | Conductivity | 100 | 32 | plain bore | swivel castor with brake | 161 | 816 | 125 | silver grey | 120 | ||
52.95 € | 1 | 7 Days | 136 | 35.01 to 80.00 | Conductivity | 100 | 32 | plain bore | swivel castor with brake | 161 | 830 | 125 | black | 80 | ||
34.47 € | 1 | 5 Days | 136 | 80.01 to 140.00 | - | 100 | 32 | Ball bearing (C) | swivel castor | 161 | 759 | 125 | silver grey | 120 | ||
45.55 € | 1 | 7 Days | 136 | 35.01 to 80.00 | - | 100 | 32 | Ball bearing (C) | swivel castor | 161 | 768 | 125 | black | 80 | ||
47.79 € | 1 | 5 Days | 136 | 80.01 to 140.00 | Conductivity | 100 | 32 | Ball bearing (C) | swivel castor with brake | 161 | 877 | 125 | silver grey | 120 | ||
58.89 € | 1 | 7 Days | 136 | 35.01 to 80.00 | Conductivity | 100 | 32 | Ball bearing (C) | swivel castor with brake | 161 | 887 | 125 | black | 80 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Wheel Material | Engineering Plastics | Plate Length L(mm) | 90 |
|---|---|---|---|---|---|
| Plate Width W(mm) | 66 | Material (details) | Tread material: Rubber, Wheel body material: high-quality polypropylene | Material | Rubber |
| Wheel width(mm) | 32 | Suitable for autoclaves | no | Mounting type | top plate |
| Tread and tyre hardness | 85 Shore A | Tread color | grey | Tread hydrolysis-resistant | no |
| Non-staining | no | Rustproof | no | Non-marking | yes |
| Maximum temperature resistance(°C) | 60 | Minimum temperature resistance(°C) | -20 |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- 35.01 to 80.00
- 80.01 to 140.00
-
Wheel Characteristics
- Conductivity
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- Ball bearing (C)
- plain bore
-
Product type
- swivel castor
- swivel castor with brake
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel body color
-
Load capacity at 3 km/h(kg)
-
Type
- LKPA-TPA
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
