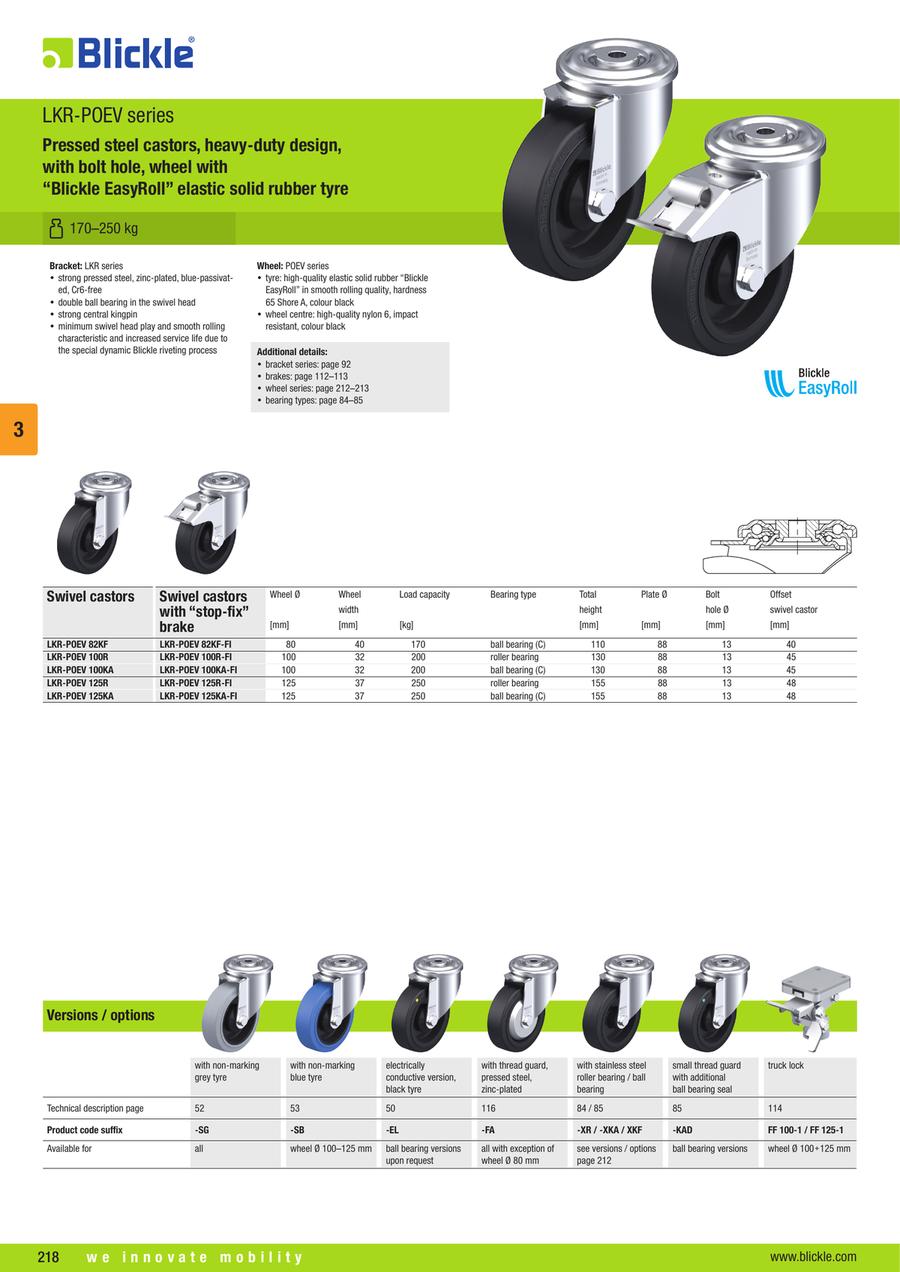

Pressed Steel Swivel Castor, LKR-POEV Series
Bracket: LKR series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: POEV series
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
- wheel centre: high-quality nylon 6, impact resistant, colour black
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Plate Length L (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Tread color | Non-staining | Non-marking | Minimum temperature resistance (°C) | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
67.67 € | 1 | 5 Days | 155 | 140.01 to 220.00 | 88 | 125 | 40 | Ball bearing (C) | swivel castor | 110 | 916 | 80 | 40 | black | no | no | -20 | 170 | ||
87.35 € | 1 | 5 Days | 155 | 140.01 to 220.00 | 88 | 125 | 40 | Ball bearing (C) | swivel castor with brake | 110 | 1042 | 80 | 40 | black | no | no | -20 | 170 | ||
88.55 € | 1 | 7 Days | 155 | 140.01 to 220.00 | 88 | 125 | 40 | Ball bearing (C) | swivel castor with brake | 110 | 1038 | 80 | 40 | grey | yes | yes | -20 | 170 | ||
68.87 € | 1 | 7 Days | 155 | 140.01 to 220.00 | 88 | 125 | 40 | Ball bearing (C) | swivel castor | 110 | 919 | 80 | 40 | grey | yes | yes | -20 | 170 | ||
70.33 € | 1 | 7 Days | 130 | 140.01 to 220.00 | 88 | 100 | 32 | Ball bearing (C) | swivel castor | 130 | 994 | 100 | 32 | black | no | no | -20 | 200 | ||
77.92 € | 1 | 7 Days | 130 | 140.01 to 220.00 | 88 | 100 | 32 | Ball bearing (C) | swivel castor | 130 | 1028 | 100 | 32 | black | no | no | -20 | 200 | ||
86.12 € | 1 | 7 Days | 130 | 140.01 to 220.00 | 88 | 100 | 32 | Ball bearing (C) | swivel castor with brake | 130 | 1188 | 100 | 32 | black | no | no | -20 | 200 | ||
93.70 € | 1 | 7 Days | 130 | 140.01 to 220.00 | 88 | 100 | 32 | Ball bearing (C) | swivel castor with brake | 130 | 1286 | 100 | 32 | black | no | no | -20 | 200 | ||
89.00 € | 1 | 7 Days | 130 | 140.01 to 220.00 | 88 | 100 | 32 | Ball bearing (C) | swivel castor with brake | 130 | 1245 | 100 | 32 | blue | yes | yes | -20 | 200 | ||
96.58 € | 1 | 7 Days | 130 | 140.01 to 220.00 | 88 | 100 | 32 | Ball bearing (C) | swivel castor with brake | 130 | 1280 | 100 | 32 | blue | yes | yes | -20 | 200 | ||
87.72 € | 1 | 7 Days | 130 | 140.01 to 220.00 | 88 | 100 | 32 | Ball bearing (C) | swivel castor with brake | 130 | 1231 | 100 | 32 | grey | yes | yes | -20 | 200 | ||
95.30 € | 1 | 7 Days | 130 | 140.01 to 220.00 | 88 | 100 | 32 | Ball bearing (C) | swivel castor with brake | 130 | 1232 | 100 | 32 | grey | yes | yes | -20 | 200 | ||
73.22 € | 1 | 7 Days | 130 | 140.01 to 220.00 | 88 | 100 | 32 | Ball bearing (C) | swivel castor | 130 | 988 | 100 | 32 | blue | yes | yes | -20 | 200 | ||
80.80 € | 1 | 7 Days | 130 | 140.01 to 220.00 | 88 | 100 | 32 | Ball bearing (C) | swivel castor | 130 | 1082 | 100 | 32 | blue | yes | yes | -20 | 200 | ||
71.93 € | 1 | 7 Days | 130 | 140.01 to 220.00 | 88 | 100 | 32 | Ball bearing (C) | swivel castor | 130 | 998 | 100 | 32 | grey | yes | yes | -20 | 200 | ||
79.52 € | 1 | 7 Days | 130 | 140.01 to 220.00 | 88 | 100 | 32 | Ball bearing (C) | swivel castor | 130 | 1091 | 100 | 32 | grey | yes | yes | -20 | 200 | ||
74.64 € | 1 | 7 Days | 130 | 140.01 to 220.00 | - | 100 | 32 | Ball bearing (C) | swivel castor | 130 | 1014 | 100 | 32 | black | no | no | -20 | 200 | ||
82.21 € | 1 | 7 Days | 130 | 140.01 to 220.00 | - | 100 | 32 | Ball bearing (C) | swivel castor | 130 | 1083 | 100 | 32 | black | no | no | -20 | 200 | ||
90.41 € | 1 | 7 Days | 130 | 140.01 to 220.00 | - | 100 | 32 | Ball bearing (C) | swivel castor with brake | 130 | 1257 | 100 | 32 | black | no | no | -20 | 200 | ||
98.00 € | 1 | 7 Days | 130 | 140.01 to 220.00 | - | 100 | 32 | Ball bearing (C) | swivel castor with brake | 130 | 1301 | 100 | 32 | black | no | no | -20 | 200 | ||
93.30 € | 1 | 7 Days | 130 | 140.01 to 220.00 | - | 100 | 32 | Ball bearing (C) | swivel castor with brake | 130 | 1257 | 100 | 32 | blue | yes | yes | -20 | 200 | ||
100.89 € | 1 | 7 Days | 130 | 140.01 to 220.00 | - | 100 | 32 | Ball bearing (C) | swivel castor with brake | 130 | 1301 | 100 | 32 | blue | yes | yes | -20 | 200 | ||
92.03 € | 1 | 7 Days | 130 | 140.01 to 220.00 | - | 100 | 32 | Ball bearing (C) | swivel castor with brake | 130 | 1256 | 100 | 32 | grey | yes | yes | -20 | 200 | ||
99.60 € | 1 | 7 Days | 130 | 140.01 to 220.00 | - | 100 | 32 | Ball bearing (C) | swivel castor with brake | 130 | 1300 | 100 | 32 | grey | yes | yes | -20 | 200 | ||
77.53 € | 1 | 7 Days | 130 | 140.01 to 220.00 | - | 100 | 32 | Ball bearing (C) | swivel castor | 130 | 1046 | 100 | 32 | blue | yes | yes | -20 | 200 | ||
85.12 € | 1 | 7 Days | 130 | 140.01 to 220.00 | - | 100 | 32 | Ball bearing (C) | swivel castor | 130 | 1083 | 100 | 32 | blue | yes | yes | -20 | 200 | ||
76.25 € | 1 | 7 Days | 130 | 140.01 to 220.00 | - | 100 | 32 | Ball bearing (C) | swivel castor | 130 | 1038 | 100 | 32 | grey | yes | yes | -20 | 200 | ||
83.83 € | 1 | 7 Days | 130 | 140.01 to 220.00 | - | 100 | 32 | Ball bearing (C) | swivel castor | 130 | 1082 | 100 | 32 | grey | yes | yes | -20 | 200 | ||
68.26 € | 1 | 7 Days | 130 | 140.01 to 220.00 | 88 | 100 | 32 | roller bearing | swivel castor | 130 | 1057 | 100 | 32 | black | no | no | -25 | 200 | ||
75.85 € | 1 | 7 Days | 130 | 140.01 to 220.00 | 88 | 100 | 32 | roller bearing | swivel castor | 130 | 1095 | 100 | 32 | black | no | no | -25 | 200 | ||
83.85 € | 1 | 7 Days | 130 | 140.01 to 220.00 | 88 | 100 | 32 | roller bearing | swivel castor with brake | 130 | 1249 | 100 | 32 | black | no | no | -25 | 200 | ||
91.43 € | 1 | 7 Days | 130 | 140.01 to 220.00 | 88 | 100 | 32 | roller bearing | swivel castor with brake | 130 | 1306 | 100 | 32 | black | no | no | -25 | 200 | ||
86.75 € | 1 | 7 Days | 130 | 140.01 to 220.00 | 88 | 100 | 32 | roller bearing | swivel castor with brake | 130 | 1249 | 100 | 32 | blue | yes | yes | -25 | 200 | ||
94.33 € | 1 | 7 Days | 155 | 140.01 to 220.00 | 88 | 125 | 37 | roller bearing | swivel castor with brake | 130 | 1296 | 100 | 32 | blue | yes | yes | -25 | 200 | ||
85.47 € | 1 | 7 Days | 155 | 140.01 to 220.00 | 88 | 125 | 37 | roller bearing | swivel castor with brake | 130 | 1260 | 100 | 32 | grey | yes | yes | -25 | 200 | ||
93.05 € | 1 | 7 Days | 155 | 140.01 to 220.00 | 88 | 125 | 37 | roller bearing | swivel castor with brake | 130 | 1293 | 100 | 32 | grey | yes | yes | -25 | 200 | ||
71.17 € | 1 | 7 Days | 155 | 140.01 to 220.00 | 88 | 125 | 37 | roller bearing | swivel castor | 130 | 1054 | 100 | 32 | blue | yes | yes | -25 | 200 | ||
78.75 € | 1 | 7 Days | 155 | 140.01 to 220.00 | 88 | 125 | 37 | roller bearing | swivel castor | 130 | 1099 | 100 | 32 | blue | yes | yes | -25 | 200 | ||
69.88 € | 1 | 7 Days | 155 | 140.01 to 220.00 | 88 | 125 | 37 | roller bearing | swivel castor | 130 | 1054 | 100 | 32 | grey | yes | yes | -25 | 200 | ||
77.47 € | 1 | 7 Days | 155 | 140.01 to 220.00 | 88 | 125 | 37 | roller bearing | swivel castor | 130 | 1093 | 100 | 32 | grey | yes | yes | -25 | 200 | ||
72.00 € | 1 | 7 Days | 155 | 140.01 to 220.00 | - | 125 | 37 | roller bearing | swivel castor | 130 | 1057 | 100 | 32 | black | no | no | -25 | 200 | ||
79.58 € | 1 | 23 Days | 155 | 140.01 to 220.00 | - | 125 | 37 | roller bearing | swivel castor | 130 | 1096 | 100 | 32 | black | no | no | -25 | 200 | ||
87.60 € | 1 | 7 Days | 155 | 140.01 to 220.00 | - | 125 | 37 | roller bearing | swivel castor with brake | 130 | 1251 | 100 | 32 | black | no | no | -25 | 200 | ||
95.18 € | 1 | 7 Days | 155 | 140.01 to 220.00 | - | 125 | 37 | roller bearing | swivel castor with brake | 130 | 1314 | 100 | 32 | black | no | no | -25 | 200 | ||
90.48 € | 1 | 23 Days | 155 | 140.01 to 220.00 | - | 125 | 37 | roller bearing | swivel castor with brake | 130 | 1253 | 100 | 32 | blue | yes | yes | -25 | 200 | ||
98.07 € | 1 | 23 Days | 155 | 140.01 to 220.00 | - | 125 | 37 | roller bearing | swivel castor with brake | 130 | 1341 | 100 | 32 | blue | yes | yes | -25 | 200 | ||
89.20 € | 1 | 7 Days | 155 | 140.01 to 220.00 | - | 125 | 37 | roller bearing | swivel castor with brake | 130 | 1250 | 100 | 32 | grey | yes | yes | -25 | 200 | ||
96.78 € | 1 | 7 Days | 155 | 140.01 to 220.00 | - | 125 | 37 | roller bearing | swivel castor with brake | 130 | 1309 | 100 | 32 | grey | yes | yes | -25 | 200 | ||
74.90 € | 1 | 7 Days | 155 | 140.01 to 220.00 | - | 125 | 37 | roller bearing | swivel castor | 130 | 1085 | 100 | 32 | blue | yes | yes | -25 | 200 | ||
82.48 € | 1 | 23 Days | 155 | 140.01 to 220.00 | - | 125 | 37 | roller bearing | swivel castor | 130 | 1123 | 100 | 32 | blue | yes | yes | -25 | 200 | ||
73.62 € | 1 | 7 Days | 155 | 140.01 to 220.00 | - | 125 | 37 | roller bearing | swivel castor | 130 | 1047 | 100 | 32 | grey | yes | yes | -25 | 200 | ||
81.20 € | 1 | 7 Days | 155 | 140.01 to 220.00 | - | 125 | 37 | roller bearing | swivel castor | 130 | 1091 | 100 | 32 | grey | yes | yes | -25 | 200 | ||
79.70 € | 1 | 7 Days | 155 | 220.01 to 320.00 | 88 | 125 | 37 | Ball bearing (C) | swivel castor | 155 | 1148 | 125 | 37 | black | no | no | -20 | 250 | ||
87.29 € | 1 | 7 Days | 155 | 220.01 to 320.00 | 88 | 125 | 37 | Ball bearing (C) | swivel castor | 155 | 1284 | 125 | 37 | black | no | no | -20 | 250 | ||
96.83 € | 1 | 7 Days | 155 | 220.01 to 320.00 | 88 | 125 | 37 | Ball bearing (C) | swivel castor with brake | 155 | 1331 | 125 | 37 | black | no | no | -20 | 250 | ||
104.40 € | 1 | 7 Days | 155 | 220.01 to 320.00 | 88 | 125 | 37 | Ball bearing (C) | swivel castor with brake | 155 | 1476 | 125 | 37 | black | no | no | -20 | 250 | ||
101.51 € | 1 | 7 Days | 155 | 220.01 to 320.00 | 88 | 125 | 37 | Ball bearing (C) | swivel castor with brake | 155 | 1330 | 125 | 37 | blue | yes | yes | -20 | 250 | ||
109.10 € | 1 | 7 Days | 155 | 220.01 to 320.00 | 88 | 125 | 37 | Ball bearing (C) | swivel castor with brake | 155 | 1412 | 125 | 37 | blue | yes | yes | -20 | 250 | ||
99.23 € | 1 | 7 Days | 155 | 220.01 to 320.00 | 88 | 125 | 37 | Ball bearing (C) | swivel castor with brake | 155 | 1332 | 125 | 37 | grey | yes | yes | -20 | 250 | ||
106.80 € | 1 | 7 Days | 155 | 220.01 to 320.00 | 88 | 125 | 37 | Ball bearing (C) | swivel castor with brake | 155 | 1466 | 125 | 37 | grey | yes | yes | -20 | 250 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Wheel Material | Engineering Plastics | Material (details) | Tread material: Rubber, Wheel body material: high-quality nylon 6 |
|---|---|---|---|---|---|
| Material | Rubber | Suitable for autoclaves | no | Mounting type | bolt hole |
| Tread and tyre hardness | 65 Shore A | Wheel body color | black | Tread hydrolysis-resistant | no |
| Rustproof | no | Maximum temperature resistance(°C) | 80 |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- 140.01 to 220.00
- 220.01 to 320.00
-
Plate Length L(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- Ball bearing (C)
- roller bearing
-
Product type
- swivel castor
- swivel castor with brake
-
Total height(mm)
-
Weight(g)
- 916
- 919
- 988
- 994
- 998
- 1014
- 1028
- 1038
- 1042
- 1046
- 1047
- 1054
- 1057
- 1082
- 1083
- 1085
- 1091
- 1093
- 1095
- 1096
- 1099
- 1123
- 1142
- 1144
- 1146
- 1148
- 1188
- 1189
- 1199
- 1206
- 1207
- 1210
- 1213
- 1216
- 1231
- 1232
- 1245
- 1249
- 1250
- 1251
- 1253
- 1256
- 1257
- 1260
- 1276
- 1277
- 1279
- 1280
- 1282
- 1284
- 1285
- 1286
- 1289
- 1293
- 1296
- 1300
- 1301
- 1306
- 1309
- 1314
- 1321
- 1330
- 1331
- 1332
- 1336
- 1341
- 1349
- 1385
- 1388
- 1393
- 1395
- 1397
- 1400
- 1412
- 1413
- 1466
- 1470
- 1476
- 1479
- 1482
- 1509
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Tread color
-
Non-staining
- no
- yes
-
Non-marking
- no
- yes
-
Minimum temperature resistance(°C)
- -25
- -20
-
Load capacity at 4 km/h(kg)
-
Type
- LKR-POEV
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
- 23 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
