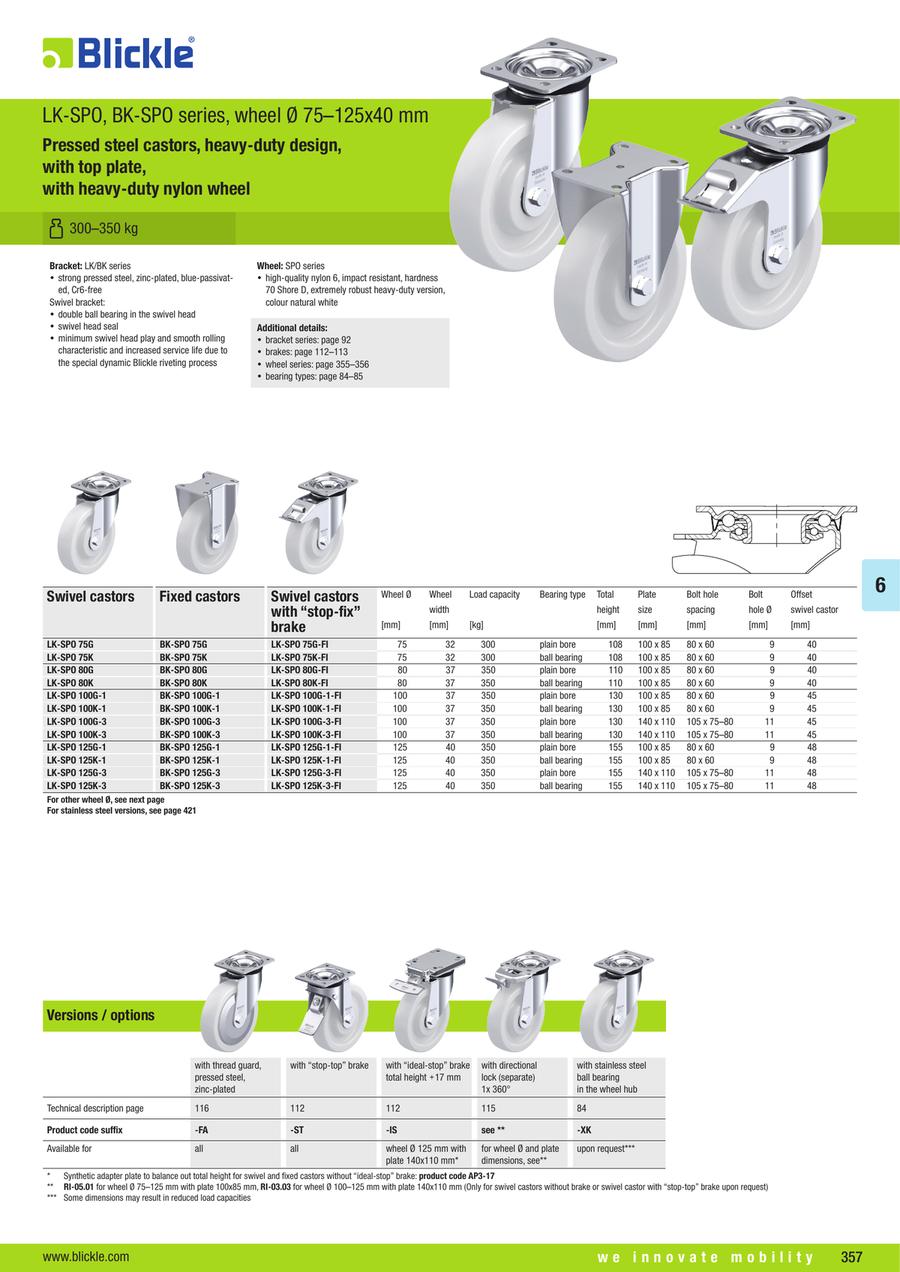

Pressed Steel Swivel Castor, LK-SPO Series
Bracket: LK series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 125x50 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: SPO series
- high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Caster Type | Mounting Height H (mm) | Load Range (daN) | Plate Length L (mm) | Plate Width W (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Minimum temperature resistance (°C) | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
40.50 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 110 | 220.01 to 320.00 | 100 | 85 | 80 | 37 | plain bore | swivel castor | 108 | 823 | 75 | 32 | -25 | 300 | ||
47.42 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 110 | 220.01 to 320.00 | 100 | 85 | 80 | 37 | plain bore | swivel castor | 108 | 858 | 75 | 32 | -25 | 300 | ||
63.65 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 110 | 220.01 to 320.00 | 100 | 85 | 80 | 37 | plain bore | swivel castor with brake | 108 | 1030 | 75 | 32 | -25 | 300 | ||
70.56 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 110 | 220.01 to 320.00 | 100 | 85 | 80 | 37 | plain bore | swivel castor with brake | 108 | 1013 | 75 | 32 | -25 | 300 | ||
66.69 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 110 | 220.01 to 320.00 | 100 | 85 | 80 | 37 | plain bore | swivel castor with brake | 108 | 1021 | 75 | 32 | -25 | 300 | ||
73.60 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 90 | 220.01 to 320.00 | 100 | 85 | 65 | 40 | plain bore | swivel castor with brake | 108 | 1072 | 75 | 32 | -25 | 300 | ||
53.78 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 220.01 to 320.00 | 100 | 85 | 100 | 38 | Ball bearing | swivel castor | 108 | 890 | 75 | 32 | -20 | 300 | ||
60.68 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 220.01 to 320.00 | 100 | 85 | 100 | 38 | Ball bearing | swivel castor | 108 | 922 | 75 | 32 | -20 | 300 | ||
77.56 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 220.01 to 320.00 | 100 | 85 | 125 | 40 | Ball bearing | swivel castor with brake | 108 | 1058 | 75 | 32 | -20 | 300 | ||
84.47 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 220.01 to 320.00 | 100 | 85 | 125 | 40 | Ball bearing | swivel castor with brake | 108 | 1084 | 75 | 32 | -20 | 300 | ||
79.95 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 220.01 to 320.00 | 100 | 85 | 125 | 40 | Ball bearing | swivel castor with brake | 108 | 1121 | 75 | 32 | -20 | 300 | ||
86.87 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 155 | 220.01 to 320.00 | 100 | 85 | 125 | 40 | Ball bearing | swivel castor with brake | 108 | 1110 | 75 | 32 | -20 | 300 | ||
45.03 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 202 | 320.01 to 485.00 | 100 | 85 | 160 | 50 | plain bore | swivel castor | 110 | 840 | 80 | 37 | -25 | 350 | ||
51.93 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 202 | 320.01 to 485.00 | 100 | 85 | 160 | 50 | plain bore | swivel castor | 110 | 891 | 80 | 37 | -25 | 350 | ||
68.18 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 202 | 320.01 to 485.00 | 100 | 85 | 160 | 50 | plain bore | swivel castor with brake | 110 | 1011 | 80 | 37 | -25 | 350 | ||
75.08 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 320.01 to 485.00 | 100 | 85 | 200 | 50 | plain bore | swivel castor with brake | 110 | 1052 | 80 | 37 | -25 | 350 | ||
71.21 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 320.01 to 485.00 | 100 | 85 | 200 | 50 | plain bore | swivel castor with brake | 110 | 1066 | 80 | 37 | -25 | 350 | ||
78.12 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 320.01 to 485.00 | 100 | 85 | 200 | 50 | plain bore | swivel castor with brake | 110 | 1102 | 80 | 37 | -25 | 350 | ||
60.65 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 320.01 to 485.00 | 100 | 85 | 100 | 32 | Ball bearing | swivel castor | 110 | 930 | 80 | 37 | -20 | 350 | ||
67.57 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 320.01 to 485.00 | 100 | 85 | 100 | 32 | Ball bearing | swivel castor | 110 | 978 | 80 | 37 | -20 | 350 | ||
84.40 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 320.01 to 485.00 | 100 | 85 | 100 | 32 | Ball bearing | swivel castor with brake | 110 | 1134 | 80 | 37 | -20 | 350 | ||
91.30 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 320.01 to 485.00 | 100 | 85 | 100 | 32 | Ball bearing | swivel castor with brake | 110 | 1133 | 80 | 37 | -20 | 350 | ||
86.83 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 320.01 to 485.00 | 100 | 85 | 100 | 32 | Ball bearing | swivel castor with brake | 110 | 1157 | 80 | 37 | -20 | 350 | ||
93.75 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 130 | 320.01 to 485.00 | 100 | 85 | 100 | 32 | Ball bearing | swivel castor with brake | 110 | 1212 | 80 | 37 | -20 | 350 | ||
51.62 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 130 | 320.01 to 485.00 | 100 | 85 | 100 | 37 | plain bore | swivel castor | 130 | 975 | 100 | 37 | -25 | 350 | ||
60.39 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 130 | 320.01 to 485.00 | 100 | 85 | 100 | 37 | plain bore | swivel castor | 130 | 1046 | 100 | 37 | -25 | 350 | ||
71.69 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 130 | 320.01 to 485.00 | 100 | 85 | 100 | 37 | plain bore | swivel castor with brake | 130 | 1228 | 100 | 37 | -25 | 350 | ||
80.45 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 130 | 320.01 to 485.00 | 100 | 85 | 100 | 37 | plain bore | swivel castor with brake | 130 | 1284 | 100 | 37 | -25 | 350 | ||
77.80 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 130 | 320.01 to 485.00 | 100 | 85 | 100 | 37 | plain bore | swivel castor with brake | 130 | 1250 | 100 | 37 | -25 | 350 | ||
86.57 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | plain bore | swivel castor with brake | 130 | 1312 | 100 | 37 | -25 | 350 | ||
54.63 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | plain bore | swivel castor | 130 | 1160 | 100 | 37 | -25 | 350 | ||
63.41 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | plain bore | swivel castor | 130 | 1214 | 100 | 37 | -25 | 350 | ||
75.21 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | plain bore | swivel castor with brake | 130 | 1400 | 100 | 37 | -25 | 350 | ||
84.00 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | plain bore | swivel castor with brake | 130 | 1465 | 100 | 37 | -25 | 350 | ||
80.82 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | plain bore | swivel castor with brake | 130 | 1434 | 100 | 37 | -25 | 350 | ||
89.60 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | plain bore | swivel castor with brake | 130 | 1495 | 100 | 37 | -25 | 350 | ||
67.40 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | Ball bearing | swivel castor | 130 | 1099 | 100 | 37 | -20 | 350 | ||
76.17 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | Ball bearing | swivel castor | 130 | 1120 | 100 | 37 | -20 | 350 | ||
88.12 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | Ball bearing | swivel castor with brake | 130 | 1330 | 100 | 37 | -20 | 350 | ||
96.90 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 172 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | Ball bearing | swivel castor with brake | 130 | 1401 | 100 | 37 | -20 | 350 | ||
93.59 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 172 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | Ball bearing | swivel castor with brake | 130 | 1350 | 100 | 37 | -20 | 350 | ||
102.35 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | Ball bearing | swivel castor with brake | 130 | 1422 | 100 | 37 | -20 | 350 | ||
70.41 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | Ball bearing | swivel castor | 130 | 1280 | 100 | 37 | -20 | 350 | ||
79.18 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | Ball bearing | swivel castor | 130 | 1310 | 100 | 37 | -20 | 350 | ||
91.65 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | Ball bearing | swivel castor with brake | 130 | 1538 | 100 | 37 | -20 | 350 | ||
100.43 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | Ball bearing | swivel castor with brake | 130 | 1577 | 100 | 37 | -20 | 350 | ||
96.60 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | Ball bearing | swivel castor with brake | 130 | 1547 | 100 | 37 | -20 | 350 | ||
105.37 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | Ball bearing | swivel castor with brake | 130 | 1608 | 100 | 37 | -20 | 350 | ||
67.55 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | plain bore | swivel castor | 155 | 1177 | 125 | 40 | -25 | 350 | ||
77.24 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | plain bore | swivel castor | 155 | 1291 | 125 | 40 | -25 | 350 | ||
87.75 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | plain bore | swivel castor with brake | 155 | 1410 | 125 | 40 | -25 | 350 | ||
97.43 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | plain bore | swivel castor with brake | 155 | 1515 | 125 | 40 | -25 | 350 | ||
93.74 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | plain bore | swivel castor with brake | 155 | 1434 | 125 | 40 | -25 | 350 | ||
103.42 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 172 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | plain bore | swivel castor with brake | 155 | 1550 | 125 | 40 | -25 | 350 | ||
70.30 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 172 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | plain bore | swivel castor | 155 | 1359 | 125 | 40 | -25 | 350 | ||
79.98 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | plain bore | swivel castor | 155 | 1138 | 125 | 40 | -25 | 350 | ||
90.90 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 155 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | plain bore | swivel castor with brake | 155 | 1570 | 125 | 40 | -25 | 350 | ||
100.59 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 170 | 320.01 to 485.00 | 140 | 110 | 125 | 50 | plain bore | swivel castor with brake | 155 | 1680 | 125 | 40 | -25 | 350 | ||
134.38 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 170 | 320.01 to 485.00 | 140 | 110 | 125 | 50 | plain bore | swivel castor | 172 | 2450 | 125 | 40 | -25 | 350 | ||
144.06 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 170 | 320.01 to 485.00 | 140 | 110 | 125 | 50 | plain bore | swivel castor | 172 | 2484 | 125 | 40 | -25 | 350 |
Loading...
Basic information
| Wheel Material | Engineering Plastics | Material (details) | Tread material: Synthetic, Wheel body material: high-quality nylon 6 | Material | Synthetic |
|---|---|---|---|---|---|
| Suitable for autoclaves | no | Mounting type | top plate | Tread and tyre hardness | 70 Shore D |
| Tread color | natural white | Wheel body color | natural white | Tread hydrolysis-resistant | no |
| Non-staining | yes | Rustproof | no | Non-marking | yes |
| Maximum temperature resistance(°C) | 70 |
Configure
Basic Attributes
-
Caster Type
- Plate Type Swivel
- Screw-In Type
- Resin
- Through Hole Type
- Rotation Type
-
Mounting Height H(mm)
-
Load Range(daN)
- 220.01 to 320.00
- 320.01 to 485.00
- 485.01 to 750.00
-
Plate Length L(mm)
-
Plate Width W(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- Ball bearing
- plain bore
-
Product type
- swivel castor
- swivel castor with brake
-
Total height(mm)
-
Weight(g)
- 823
- 840
- 858
- 890
- 891
- 922
- 930
- 975
- 978
- 1011
- 1013
- 1021
- 1030
- 1046
- 1052
- 1058
- 1066
- 1072
- 1084
- 1099
- 1102
- 1110
- 1120
- 1121
- 1133
- 1134
- 1138
- 1157
- 1160
- 1177
- 1212
- 1214
- 1228
- 1250
- 1280
- 1284
- 1291
- 1310
- 1312
- 1330
- 1350
- 1359
- 1377
- 1400
- 1401
- 1410
- 1422
- 1434
- 1465
- 1482
- 1495
- 1515
- 1524
- 1538
- 1547
- 1550
- 1570
- 1577
- 1592
- 1608
- 1632
- 1647
- 1650
- 1680
- 1706
- 1738
- 1798
- 1817
- 1884
- 1922
- 2306
- 2430
- 2450
- 2484
- 2510
- 2565
- 2630
- 2645
- 2700
- 2702
- 2717
- 2756
- 2819
- 2832
- 2902
- 2950
- 2954
- 2959
- 2971
- 3000
- 3017
- 3049
- 3050
- 3056
- 3140
- 3174
- 3180
- 3183
- 3188
- 3200
- 3210
- 3240
- 3242
- 3250
- 3285
- 3286
- 3312
- 3348
- 3361
- 3395
- 3408
- 3425
- 3434
- 3437
- 3469
- 3480
- 3550
- 3574
- 3598
- 3601
- 3602
- 3620
- 3650
- 3671
- 3672
- 3686
- 3721
- 3753
- 3761
- 3772
- 3776
- 3788
- 3789
- 3830
- 3840
- 3850
- 3906
- 3922
- 3928
- 3945
- 3970
- 3982
- 3989
- 3994
- 4010
- 4040
- 4050
- 4073
- 4143
- 4225
- 4230
- 4300
- 4312
- 4371
- 4464
- 4488
- 4500
- 4685
- 4690
- 4722
- 4874
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Minimum temperature resistance(°C)
- -25
- -20
-
Load capacity at 4 km/h(kg)
-
Type
- LK-SPO
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
- 23 Days or Less
Optional Attributes
