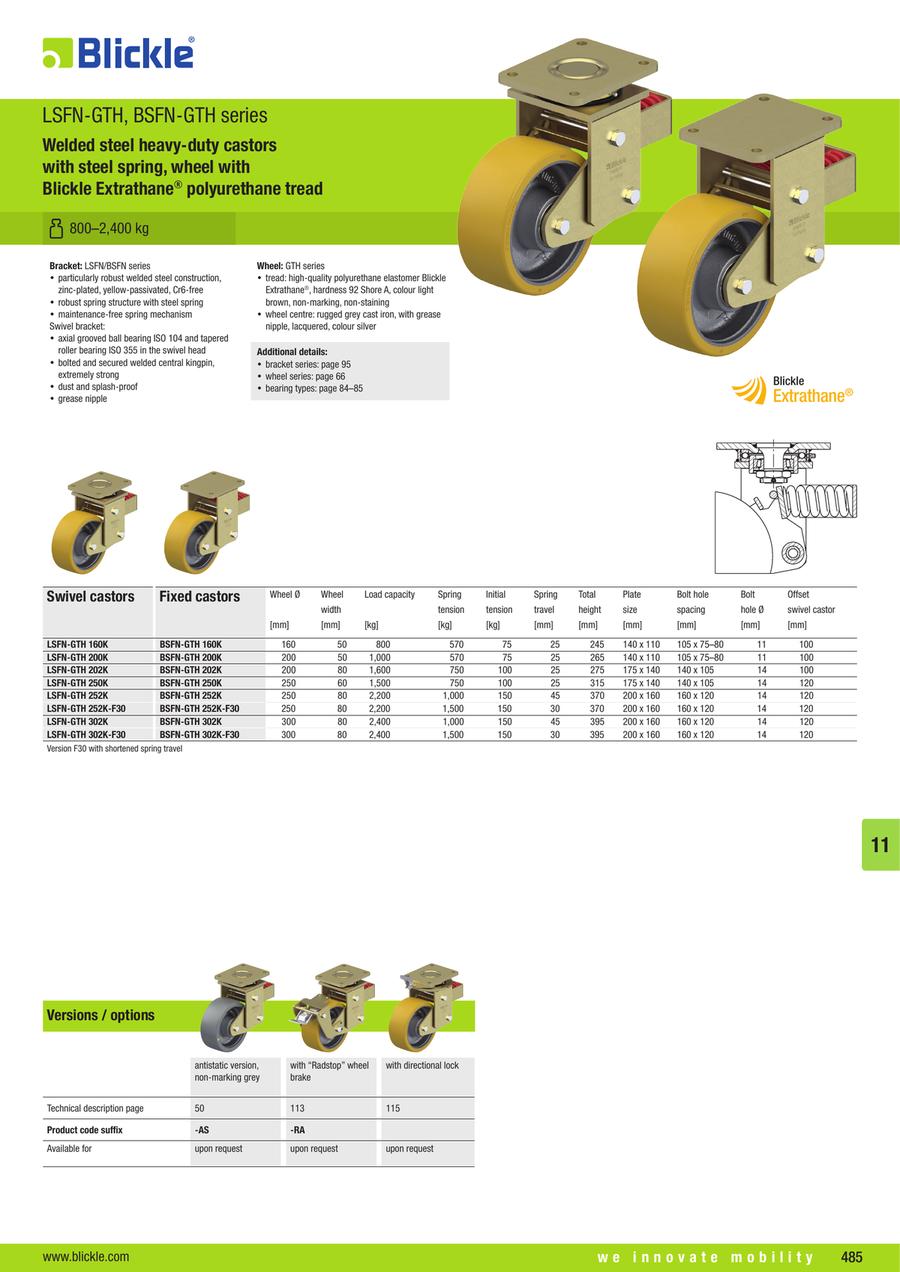

Heavy Duty Welded Steel Swivel Castor, LSFN-GTH Series
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
472.13 € ( 561.83 € ) | 5 working days |
489.43 € ( 582.42 € ) | 23 working days |
761.45 € ( 906.13 € ) | 7 working days |
860.06 € ( 1,023.47 € ) | 7 working days |
1,849.70 € ( 2,201.14 € ) | 23 working days |
1,899.46 € ( 2,260.36 € ) | 23 working days |
1,943.47 € ( 2,312.73 € ) | 7 working days |
1,993.23 € ( 2,371.94 € ) | 23 working days |
More Information
Basic information
Heavy Duty Welded Steel Swivel Castor, with Steel Spring, Heavy Duty Wheel, with Blickle Extrathane® Polyurethane Tread, with Cast Iron Wheel Centre
Bracket: LSFN series
- particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
- robust spring structure with steel spring
- maintenance-free spring mechanism
- axial grooved ball bearing ISO 104 and tapered roller bearing ISO 355 in the swivel head
- bolted and secured welded central kingpin, extremely strong
- dust and splash-proof
- grease nipple
Wheel: GTH series
- tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour light brown, non-marking, non-staining
- wheel centre: rugged grey cast iron
- with grease nipple, lacquered, colour silver
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
