Configure
- Mounting Height H(mm)
- 125
- 150
- 190
- 195
- 235
- Load Range(daN)
- Plate Length L(mm)
- 100
- 140
- Plate Width W(mm)
- 85
- 110
- Wheel Dia. D(mm)
- 100
- 125
- 150
- 160
- 200
- Wheel Width B(mm)
- 35
- 40
- 45
- 50
- Bearing type
- Product type
- Total height(mm)
- 125
- 150
- 195
- 235
- Weight(g)
- 740
- 788
- 868
- 876
- 919
- 920
- 998
- 1004
- 1005
- 1016
- 1020
- 1026
- 1059
- 1096
- 1138
- 2008
- 2072
- 2141
- 2405
- 2416
- 2418
- 2424
- 2460
- 2465
- 2540
- 2630
- 2703
- 2834
- 2880
- 2934
- 2965
- 2969
- Wheel diameter(mm)
- 100
- 125
- 160
- 200
- Wheel width(mm)
- 32
- 37
- 50
- Minimum temperature resistance(°C)
- -25
- -20
- Load capacity at 4 km/h(kg)
- 200
- 250
- 400
- Type
- Est. shipping days
- All
- Within 7 working days
- Within 23 working days

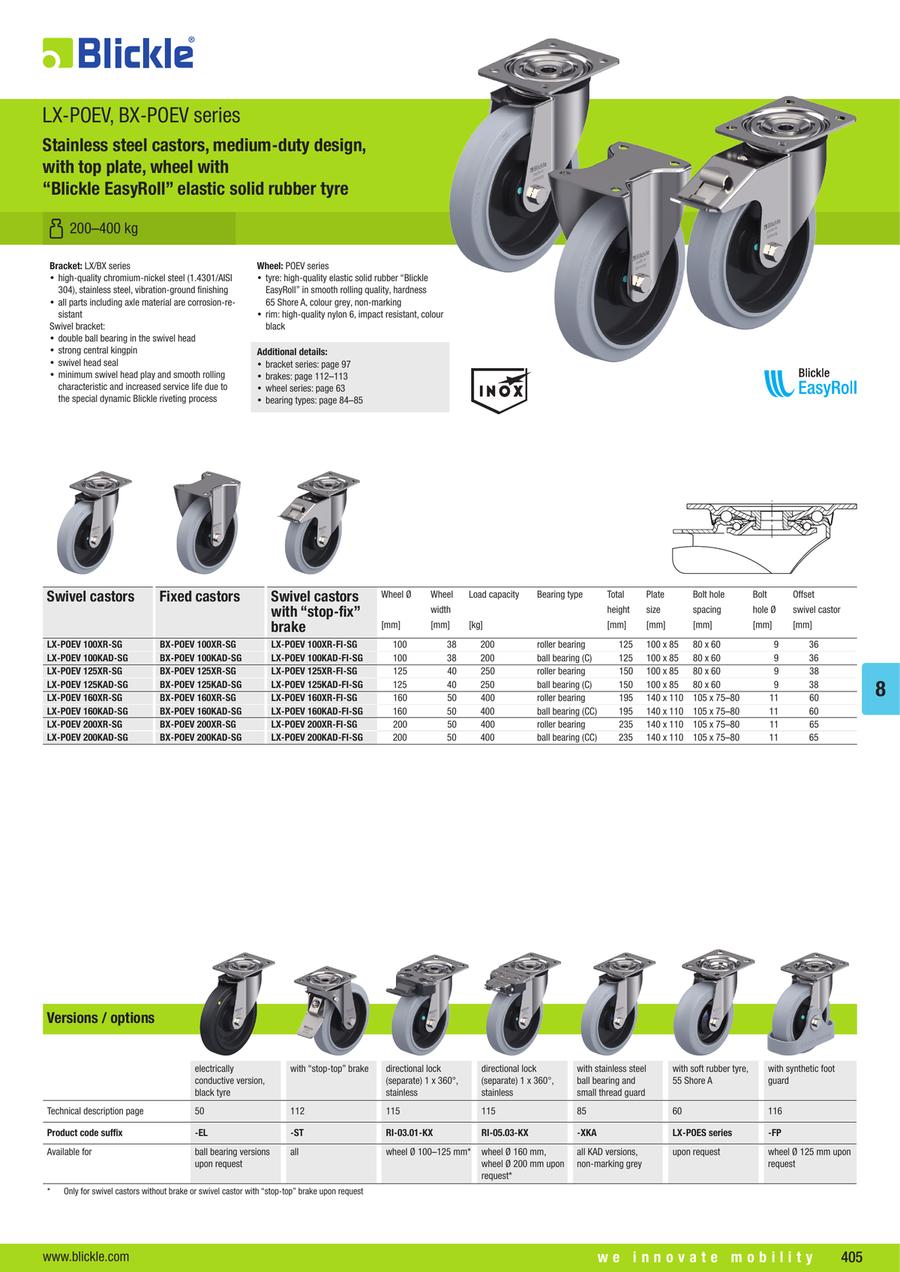

Stainless Steel Swivel Castor, LX-POEV Series
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
135.50 € ( 161.25 € ) | 7 working days |
108.22 € ( 128.78 € ) | 7 working days |
183.55 € ( 218.42 € ) | 7 working days |
152.43 € ( 181.39 € ) | 23 working days |
125.15 € ( 148.93 € ) | 23 working days |
200.50 € ( 238.59 € ) | 23 working days |
133.58 € ( 158.96 € ) | 7 working days |
106.47 € ( 126.70 € ) | 7 working days |
181.80 € ( 216.34 € ) | 7 working days |
147.88 € ( 175.98 € ) | 7 working days |
121.11 € ( 144.12 € ) | 7 working days |
196.45 € ( 233.78 € ) | 7 working days |
164.84 € ( 196.16 € ) | 23 working days |
138.05 € ( 164.28 € ) | 23 working days |
213.40 € ( 253.95 € ) | 23 working days |
146.63 € ( 174.49 € ) | 7 working days |
120.01 € ( 142.81 € ) | 7 working days |
195.37 € ( 232.49 € ) | 7 working days |
296.27 € ( 352.56 € ) | 7 working days |
226.64 € ( 269.70 € ) | 7 working days |
327.30 € ( 389.49 € ) | 7 working days |
314.65 € ( 374.43 € ) | 7 working days |
245.04 € ( 291.60 € ) | 7 working days |
345.68 € ( 411.36 € ) | 7 working days |
292.40 € ( 347.96 € ) | 7 working days |
222.82 € ( 265.16 € ) | 23 working days |
323.47 € ( 384.93 € ) | 7 working days |
327.45 € ( 389.67 € ) | 7 working days |
252.12 € ( 300.02 € ) | 7 working days |
352.77 € ( 419.80 € ) | 23 working days |
345.85 € ( 411.56 € ) | 7 working days |
270.50 € ( 321.89 € ) | 7 working days |
371.17 € ( 441.69 € ) | 23 working days |
321.05 € ( 382.05 € ) | 7 working days |
245.75 € ( 292.44 € ) | 7 working days |
346.40 € ( 412.22 € ) | 23 working days |
More Information
Basic information
Stainless Steel Swivel Castor, with Top Plate Fitting, Medium Duty Design Heavy Duty Wheel, with 'Blickle Easyroll' Elastic Solid Rubber Tyres, with Nylon Wheel Centre, Non-Marking, Grey
Bracket: LX series
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
- double ball bearing in the swivel head
- strong central kingpin
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: POEV series
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour grey, non-marking
- wheel centre: high-quality nylon 6, impact resistant, colour black
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
