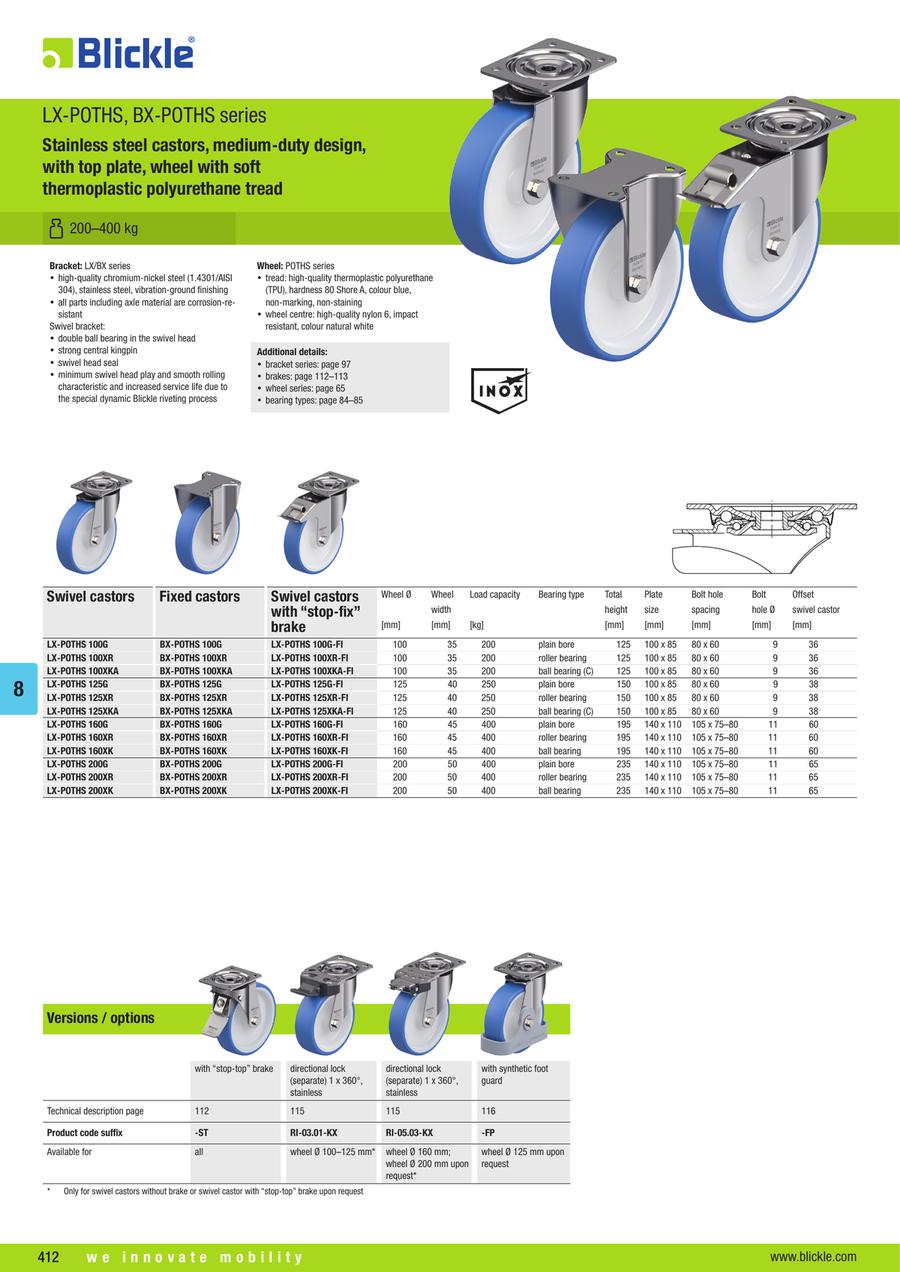

Stainless Steel Swivel Castor, LX-POTHS Series
Bracket: LX series
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
- double ball bearing in the swivel head
- strong central kingpin
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: POTHS series
- tread: high-quality thermoplastic polyurethane (TPU), hardness 80 Shore A, colour blue, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour natural white
- very high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Wheel Characteristics | Plate Length L (mm) | Plate Width W (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Minimum temperature resistance (°C) | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
106.80 € | 1 | 7 Days | 195 | 140.01 to 220.00 | - | 100 | 85 | 160 | 45 | plain bore | swivel castor | 125 | 710 | 100 | 35 | -25 | 200 | ||
133.92 € | 1 | 7 Days | 195 | 140.01 to 220.00 | - | 100 | 85 | 160 | 45 | plain bore | swivel castor with brake | 125 | 838 | 100 | 35 | -25 | 200 | ||
182.15 € | 1 | 7 Days | 195 | 140.01 to 220.00 | - | 100 | 85 | 160 | 45 | plain bore | swivel castor with brake | 125 | 920 | 100 | 35 | -25 | 200 | ||
124.49 € | 1 | 7 Days | 195 | 140.01 to 220.00 | - | 100 | 85 | 160 | 45 | Ball bearing (C) | swivel castor | 125 | 744 | 100 | 35 | -20 | 200 | ||
151.76 € | 1 | 7 Days | 195 | 140.01 to 220.00 | - | 100 | 85 | 160 | 45 | Ball bearing (C) | swivel castor with brake | 125 | 868 | 100 | 35 | -20 | 200 | ||
199.83 € | 1 | 7 Days | 195 | 140.01 to 220.00 | - | 100 | 85 | 160 | 45 | Ball bearing (C) | swivel castor with brake | 125 | 952 | 100 | 35 | -20 | 200 | ||
112.25 € | 1 | 7 Days | 195 | 140.01 to 220.00 | - | 100 | 85 | 160 | 45 | roller bearing | swivel castor | 125 | 745 | 100 | 35 | -25 | 200 | ||
139.37 € | 1 | 7 Days | 195 | 140.01 to 220.00 | - | 100 | 85 | 160 | 45 | roller bearing | swivel castor with brake | 125 | 873 | 100 | 35 | -25 | 200 | ||
187.60 € | 1 | 7 Days | 235 | 140.01 to 220.00 | - | 100 | 85 | 200 | 50 | roller bearing | swivel castor with brake | 125 | 954 | 100 | 35 | -25 | 200 | ||
117.72 € | 1 | 7 Days | 235 | 220.01 to 320.00 | - | 100 | 85 | 200 | 50 | plain bore | swivel castor | 150 | 882 | 125 | 40 | -25 | 250 | ||
144.34 € | 1 | 7 Days | 235 | 220.01 to 320.00 | - | 100 | 85 | 200 | 50 | plain bore | swivel castor with brake | 150 | 1036 | 125 | 40 | -25 | 250 | ||
193.06 € | 1 | 7 Days | 235 | 220.01 to 320.00 | - | 100 | 85 | 200 | 50 | plain bore | swivel castor with brake | 150 | 1075 | 125 | 40 | -25 | 250 | ||
135.85 € | 1 | 7 Days | 235 | 220.01 to 320.00 | - | 100 | 85 | 200 | 50 | Ball bearing (C) | swivel castor | 150 | 898 | 125 | 40 | -20 | 250 | ||
162.63 € | 1 | 7 Days | 235 | 220.01 to 320.00 | - | 100 | 85 | 200 | 50 | Ball bearing (C) | swivel castor with brake | 150 | 1052 | 125 | 40 | -20 | 250 | ||
211.20 € | 1 | 7 Days | 235 | 220.01 to 320.00 | - | 100 | 85 | 200 | 50 | Ball bearing (C) | swivel castor with brake | 150 | 1118 | 125 | 40 | -20 | 250 | ||
123.62 € | 1 | 7 Days | 235 | 220.01 to 320.00 | - | 100 | 85 | 200 | 50 | roller bearing | swivel castor | 150 | 914 | 125 | 40 | -25 | 250 | ||
150.23 € | 1 | 7 Days | 235 | 220.01 to 320.00 | - | 100 | 85 | 200 | 50 | roller bearing | swivel castor with brake | 150 | 1068 | 125 | 40 | -25 | 250 | ||
198.97 € | 1 | 7 Days | 195 | 220.01 to 320.00 | - | 100 | 85 | 160 | 40 | roller bearing | swivel castor with brake | 150 | 1129 | 125 | 40 | -25 | 250 | ||
229.44 € | 1 | 7 Days | 235 | 320.01 to 485.00 | - | 140 | 110 | 200 | 40 | plain bore | swivel castor | 195 | 1830 | 160 | 45 | -25 | 400 | ||
299.03 € | 1 | 7 Days | 195 | 320.01 to 485.00 | - | 140 | 110 | 160 | 40 | plain bore | swivel castor with brake | 195 | 2238 | 160 | 45 | -25 | 400 | ||
330.10 € | 1 | 7 Days | 195 | 320.01 to 485.00 | - | 140 | 110 | 160 | 40 | plain bore | swivel castor with brake | 195 | 2357 | 160 | 45 | -25 | 400 | ||
286.20 € | 1 | 7 Days | 195 | 320.01 to 485.00 | - | 140 | 110 | 160 | 40 | Ball bearing | swivel castor | 195 | 2109 | 160 | 45 | -20 | 400 | ||
355.58 € | 1 | 7 Days | 195 | 320.01 to 485.00 | - | 140 | 110 | 160 | 40 | Ball bearing | swivel castor with brake | 195 | 2476 | 160 | 45 | -20 | 400 | ||
386.85 € | 1 | 7 Days | 235 | 320.01 to 485.00 | - | 140 | 110 | 200 | 40 | Ball bearing | swivel castor with brake | 195 | 2644 | 160 | 45 | -20 | 400 | ||
241.18 € | 1 | 7 Days | 235 | 320.01 to 485.00 | - | 140 | 110 | 200 | 40 | roller bearing | swivel castor | 195 | 1926 | 160 | 45 | -25 | 400 | ||
310.76 € | 1 | 7 Days | 235 | 320.01 to 485.00 | - | 140 | 110 | 200 | 40 | roller bearing | swivel castor with brake | 195 | 2331 | 160 | 45 | -25 | 400 | ||
341.83 € | 1 | 7 Days | 235 | 320.01 to 485.00 | - | 140 | 110 | 200 | 40 | roller bearing | swivel castor with brake | 195 | 2489 | 160 | 45 | -25 | 400 | ||
247.82 € | 1 | 7 Days | 195 | 320.01 to 485.00 | - | 140 | 110 | 160 | 40 | plain bore | swivel castor | 235 | 2283 | 200 | 50 | -25 | 400 | ||
323.12 € | 1 | 7 Days | 195 | 320.01 to 485.00 | - | 140 | 110 | 160 | 40 | plain bore | swivel castor with brake | 235 | 2724 | 200 | 50 | -25 | 400 | ||
348.46 € | 1 | 7 Days | 235 | 320.01 to 485.00 | - | 140 | 110 | 200 | 40 | plain bore | swivel castor with brake | 235 | 2908 | 200 | 50 | -25 | 400 | ||
310.70 € | 1 | 7 Days | 235 | 320.01 to 485.00 | - | 140 | 110 | 200 | 40 | Ball bearing | swivel castor | 235 | 2581 | 200 | 50 | -20 | 400 | ||
385.80 € | 1 | 7 Days | 245 | 320.01 to 485.00 | - | 140 | 110 | 200 | 80 | Ball bearing | swivel castor with brake | 235 | 3023 | 200 | 50 | -20 | 400 | ||
411.36 € | 1 | 7 Days | 245 | 320.01 to 485.00 | - | 140 | 110 | 200 | 80 | Ball bearing | swivel castor with brake | 235 | 3124 | 200 | 50 | -20 | 400 | ||
259.55 € | 1 | 7 Days | 245 | 320.01 to 485.00 | - | 140 | 110 | 200 | 80 | roller bearing | swivel castor | 235 | 2378 | 200 | 50 | -25 | 400 | ||
334.85 € | 1 | 7 Days | 245 | 320.01 to 485.00 | - | 140 | 110 | 200 | 80 | roller bearing | swivel castor with brake | 235 | 2821 | 200 | 50 | -25 | 400 | ||
360.22 € | 1 | 7 Days | 88 | 320.01 to 485.00 | Conductivity | 140 | 110 | 75 | 15 | roller bearing | swivel castor with brake | 235 | 3000 | 200 | 50 | -25 | 400 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Wheel Material | Engineering Plastics | Material (details) | Tread material: Polyurethane, Wheel body material: high-quality nylon 6 |
|---|---|---|---|---|---|
| Material | Polyurethane | Suitable for autoclaves | no | Mounting type | top plate |
| Tread and tyre hardness | 80 Shore A | Tread color | blue | Wheel body color | natural white |
| Tread hydrolysis-resistant | no | Non-staining | yes | Rustproof | yes |
| Non-marking | yes | Maximum temperature resistance(°C) | 70 |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- 140.01 to 220.00
- 220.01 to 320.00
- 320.01 to 485.00
-
Wheel Characteristics
- Conductivity
-
Plate Length L(mm)
-
Plate Width W(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- Ball bearing
- Ball bearing (C)
- plain bore
- roller bearing
-
Product type
- swivel castor
- swivel castor with brake
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Minimum temperature resistance(°C)
- -25
- -20
-
Load capacity at 4 km/h(kg)
-
Type
- LX-POTHS
Filter by standard shipping days
-
- All
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
