Index Plungers, with hexagon collar, stainless steel A4

Configure

d1(mm)
- 4
- 5
- 6
- 8
- 10
- 12
d2(mm)
d3(mm)
- 16
- 18
- 19
- 22
- 23
- 27
- 28
- 32
- 33
l1(mm)
- 35
- 40
- 48
- 58
- 71.5
l2 min.(mm)
- 4
- 5
- 6
- 8
- 9
- 12
- 15
l3(mm)
- 16
- 18
- 22
- 26
- 33
l4(mm)
- 5
- 6
- 8
- 10
F1(N)
- ~3.0
- ~3.5
- ~4.0
- ~4.5
- ~6.0
- ~7.0
- ~7.5
- ~9.0
F2(N)
- ~5
- ~6
- ~8
- ~9
- ~11
- ~12
- ~14
- ~15
- ~16
- ~20
- ~23
- ~26
- ~32
Knob
- Stainless steel 1.4401
- Thermoplastic PA 6, black-grey, matt
Temperature min.(°C)
- -30
Temperature max.(°C)
- 80
- 100
Est. shipping days
- All
- Within 3 working days
- Within 4 working days

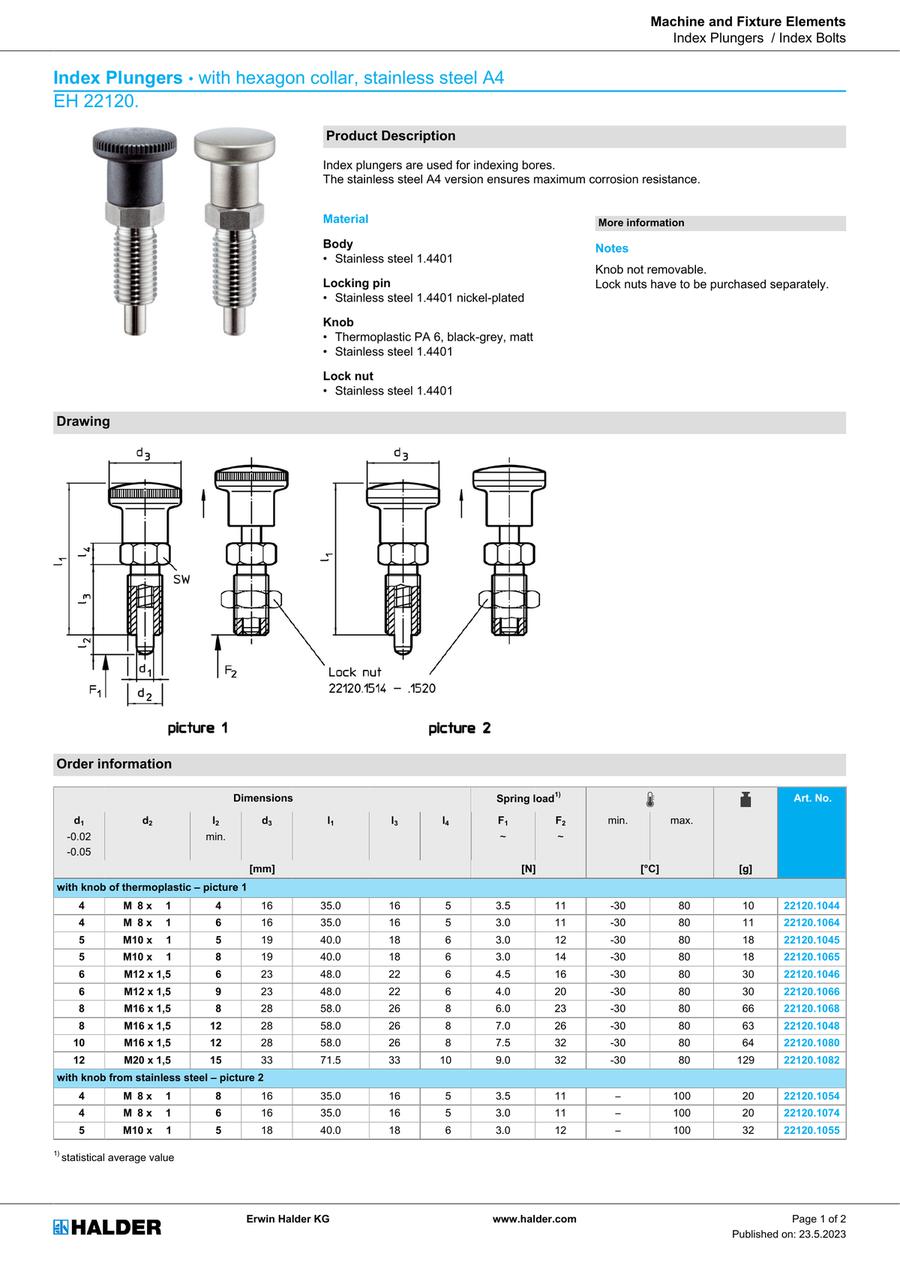

Index Plungers, with hexagon collar, stainless steel A4

Catalog

Part number:

Still undefined. 20 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

(mm)

l2 min.

(mm)

(N)

Knob

Temperature min.

(°C)

Temperature max.

(°C)

Weight

(g)

Minimum order quantity

Data sheet	4	M8 x 1	16	35	4	16	5	~3.5	~11	Thermoplastic PA 6, black-grey, matt	-30	80	10	1 pieces
Data sheet	5	M10 x 1	19	40	5	18	6	~3.0	~12	Thermoplastic PA 6, black-grey, matt	-30	80	18	1 pieces
Data sheet	6	M12 x 1.5	23	48	6	22	6	~4.5	~16	Thermoplastic PA 6, black-grey, matt	-30	80	30	1 pieces
Data sheet	8	M16 x 1.5	28	58	12	26	8	~7.0	~26	Thermoplastic PA 6, black-grey, matt	-30	80	63	1 pieces
Data sheet	4	M8 x 1	16	35	8	16	5	~3.5	~8	Stainless steel 1.4401	-	100	20	1 pieces
Data sheet	5	M10 x 1	18	40	5	18	6	~3.0	~5	Stainless steel 1.4401	-	100	32	1 pieces
Data sheet	6	M12 x 1.5	22	48	6	22	6	~4.5	~6	Stainless steel 1.4401	-	100	63	1 pieces
Data sheet	8	M16 x 1.5	27	58	12	26	8	~7.0	~12	Stainless steel 1.4401	-	100	109	1 pieces
Data sheet	4	M8 x 1	16	35	6	16	5	~3.0	~11	Thermoplastic PA 6, black-grey, matt	-30	80	11	1 pieces
Data sheet	5	M10 x 1	19	40	8	18	6	~3.0	~14	Thermoplastic PA 6, black-grey, matt	-30	80	18	1 pieces
Data sheet	6	M12 x 1.5	23	48	9	22	6	~4.0	~20	Thermoplastic PA 6, black-grey, matt	-30	80	30	1 pieces
Data sheet	8	M16 x 1.5	28	58	8	26	8	~6.0	~23	Thermoplastic PA 6, black-grey, matt	-30	80	66	1 pieces
Data sheet	4	M8 x 1	16	35	6	16	5	~3.0	~6	Stainless steel 1.4401	-	100	20	1 pieces
Data sheet	5	M10 x 1	18	40	8	18	6	~3.0	~8	Stainless steel 1.4401	-	100	32	1 pieces
Data sheet	6	M12 x 1.5	22	48	9	22	6	~4.0	~9	Stainless steel 1.4401	-	100	56	1 pieces
Data sheet	8	M16 x 1.5	27	58	8	26	8	~6.0	~8	Stainless steel 1.4401	-	100	107	1 pieces
Data sheet	10	M16 x 1.5	28	58	12	26	8	~7.5	~32	Thermoplastic PA 6, black-grey, matt	-30	80	64	1 pieces
Data sheet	12	M20 x 1.5	33	71.5	15	33	10	~9.0	~32	Thermoplastic PA 6, black-grey, matt	-30	80	129	1 pieces
Data sheet	10	M16 x 1.5	27	58	12	26	8	~7.5	~12	Stainless steel 1.4401	-	100	111	1 pieces
Data sheet	12	M20 x 1.5	32	71.5	15	33	10	~9.0	~15	Stainless steel 1.4401	-	100	203	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

18.17 € ( 21.62 € )	4 working days
18.42 € ( 21.92 € )	4 working days
20.93 € ( 24.91 € )	4 working days
26.38 € ( 31.39 € )	4 working days
27.31 € ( 32.50 € )	4 working days
27.38 € ( 32.58 € )	4 working days
30.83 € ( 36.69 € )	4 working days
38.86 € ( 46.24 € )	4 working days
18.30 € ( 21.78 € )	4 working days
19.22 € ( 22.87 € )	4 working days
21.74 € ( 25.87 € )	4 working days
25.84 € ( 30.75 € )	4 working days
27.60 € ( 32.84 € )	4 working days
30.13 € ( 35.85 € )	4 working days
32.29 € ( 38.43 € )	4 working days
37.51 € ( 44.64 € )	4 working days
27.50 € ( 32.73 € )	4 working days
32.95 € ( 39.21 € )	4 working days
40.74 € ( 48.48 € )	3 working days
48.49 € ( 57.70 € )	4 working days
