HALDER

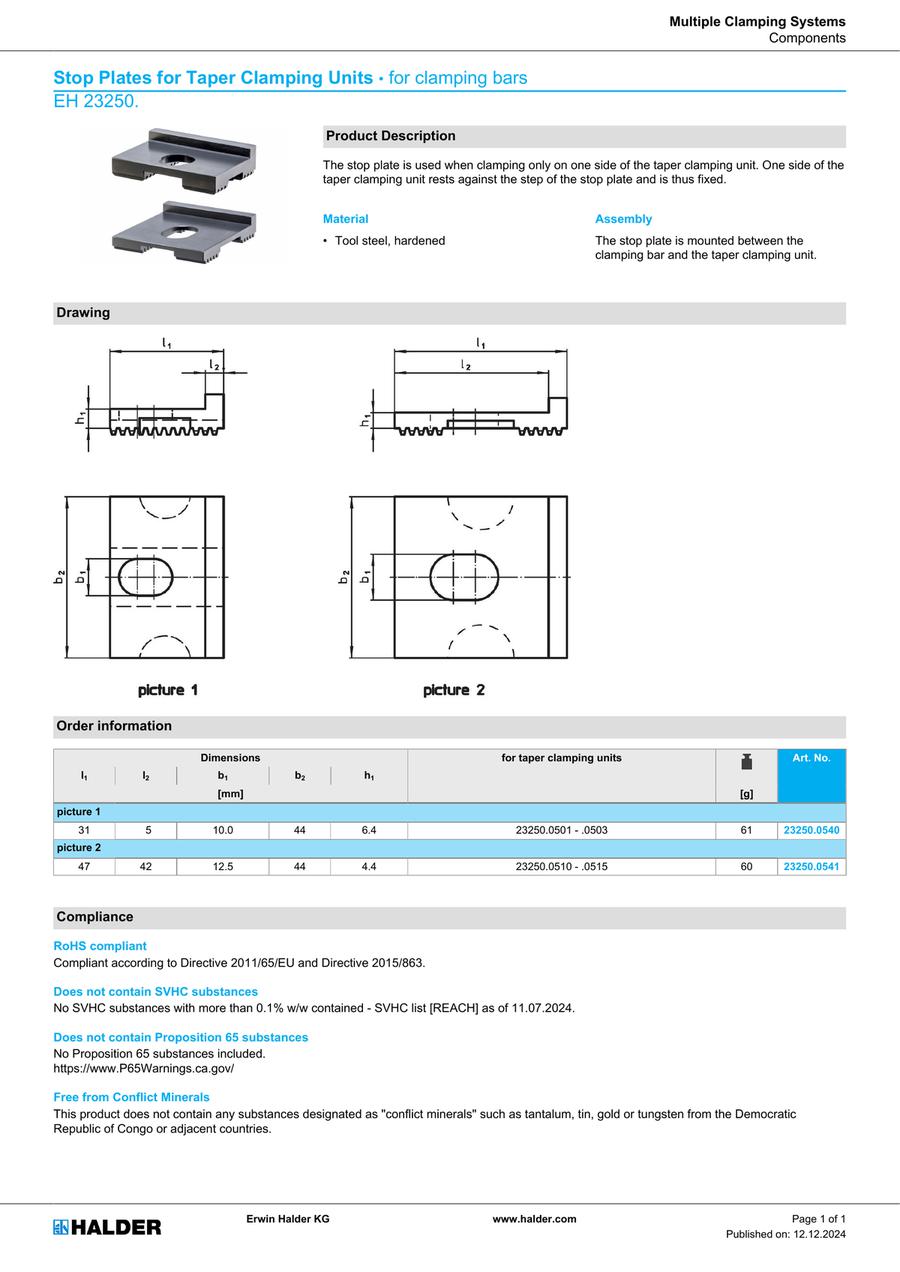

Stop Plates for Taper Clamping Units, for clamping bars

Stop Plates for Taper Clamping Units, for clamping bars

Part number:

Still undefined. 2 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    23250.0540
    23250.0541
    Related

    l1

    (mm)

    l2

    (mm)

    b1

    (mm)

    h1

    (mm)

    for taper clamping units

    Weight

    (g)

    		Minimum order quantity

    Data sheet

    31
    5
    10
    6.4
    23250.0501 - .0503
    61
    1 pieces

    Data sheet

    47
    42
    12.5
    4.4
    23250.0510 - .0515
    60
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    159.96 €
    ( 190.35 € )
    4 working days
    159.96 €
    ( 190.35 € )
    4 working days
  • 1

    • More Information

    Basic information

    The stop plate is used when clamping only on one side of the taper clamping unit. One side of the taper clamping unit rests against the step of the stop plate and is thus fixed.
