NORELEM

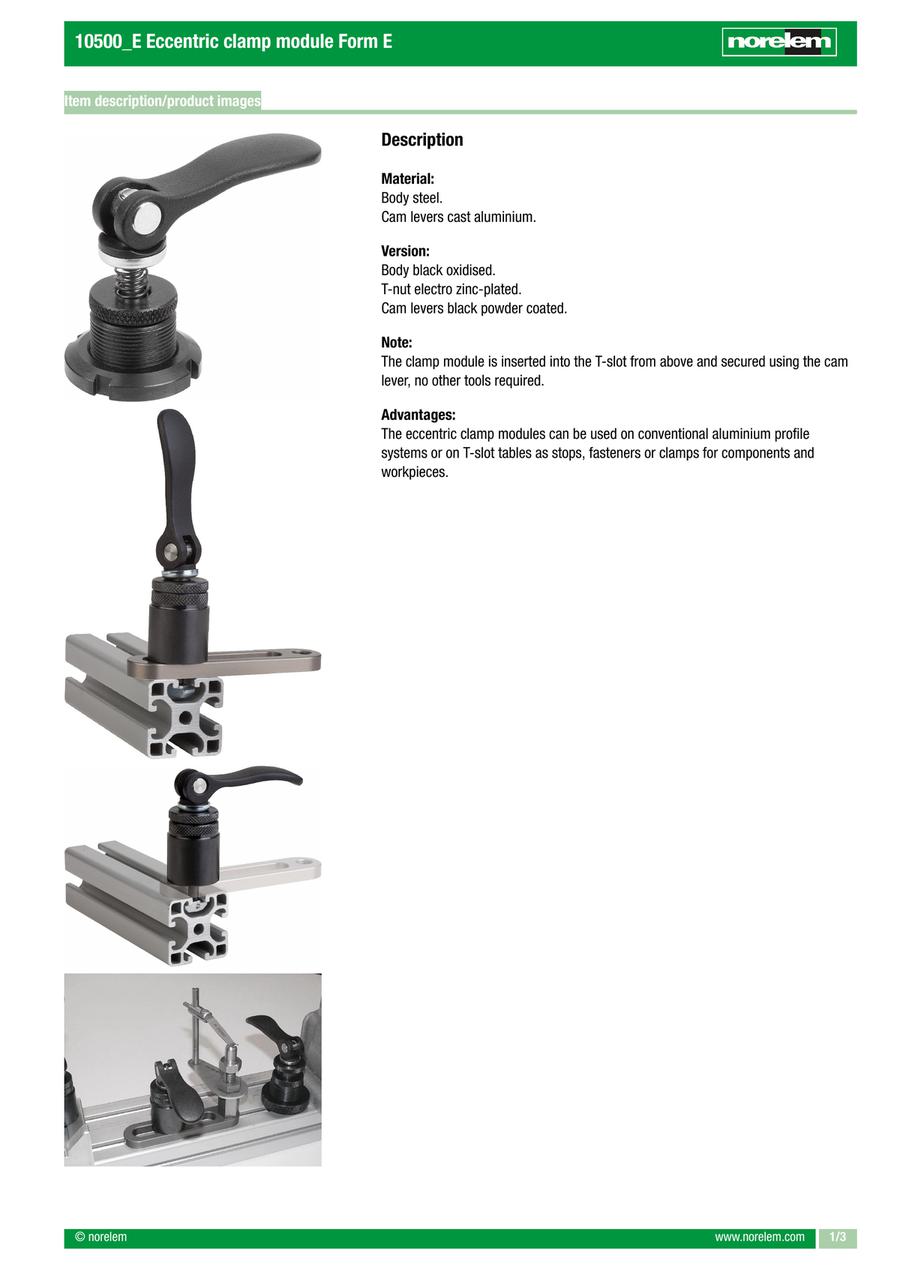

Eccentric clamp module, Form E (10500)

Eccentric clamp module, Form E (10500)

Part number:

Still undefined. 2 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    10500-41150706
    10500-41200908

    D1=Thread

    D2

    (mm)

    H

    (mm)

    H1

    (mm)

    H2

    (mm)

    L=Handle length

    (mm)

    suitable for slot width

    (mm)

    Clamping force F

    (kN)

    Hand force FH

    (N)

    		Minimum order quantity
    M15X1
    25
    39
    14
    7
    35
    6
    1.5
    90
    1 pieces
    M20X1
    32
    50
    18
    9
    52
    8
    2.5
    100
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    40.70 €
    ( 48.43 € )
    4 working days
    46.82 €
    ( 55.72 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Application sectors: machine construction, toolmaking, fixture construction

    · No additional tools required

    · Compatible with all conventional aluminium profile systems and T-slot tables
