Clamping levers, plastic with internal thread and push button, threaded insert stainless steel (06601)

Configure

Handle length(mm)
- 40
- 65
- 80
- 95
- 110
Component colour
- Red RAL 3020
- Black grey RAL 7021
Main colour
A(mm)
- 40
- 65
- 80
- 95
- 110
A1=Handle length(mm)
- 47
- 75
- 91.5
- 109
- 126
B(mm)
- 7.5
- 9.5
- 11
- 13
- 15.5
D(mm)
- 10
- 13.5
- 16
- 19
- 23
D1(mm)
- 13
- 18
- 21.5
- 25.5
- 30
D2(mm)
- 14.5
- 19.5
- 23
- 27.5
- 32.5
H(mm)
- 25.5
- 29.5
- 38.5
- 44.6
- 50.6
H1(mm)
- 4
- 6.5
- 10
- 12
H2(mm)
- 15
- 17.5
- 24
- 26
- 33
H3=handle height(mm)
- 30
- 41.5
- 53.5
- 61
- 72
H4(mm)
- 33.5
- 45.5
- 58
- 66
- 77
Size
- 1
- 2
- 3
- 4
- 5
X=thread
- M4
- M5
- M6
- M8
- M10
- M12
- M16
T=thread depth(mm)
- 9
- 12
- 14
- 17
- 23
No. of teeth
- 16
- 20
- 22
- 24
- 26
Est. shipping days
- All
- Within 4 working days

Clamping levers, plastic with internal thread and push button, threaded insert stainless steel (06601)

Catalog

Part number:

Still undefined. 33 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Handle length

(mm)

Component colour

Main colour

(mm)

A1=Handle length

(mm)

H3=handle height

(mm)

Size

X=thread

T=thread depth

(mm)

No. of teeth

Minimum order quantity

40	Red RAL 3020	Black grey RAL 7021	40	47	7.5	10	13	14.5	25.5	4	15	30	33.5	1	M4	9	16	1 pieces
40	Red RAL 3020	Black grey RAL 7021	40	47	7.5	10	13	14.5	25.5	4	15	30	33.5	1	M5	9	16	1 pieces
40	Red RAL 3020	Black grey RAL 7021	40	47	7.5	10	13	14.5	25.5	4	15	30	33.5	1	M6	9	16	1 pieces
65	Red RAL 3020	Black grey RAL 7021	65	75	9.5	13.5	18	19.5	29.5	6.5	17.5	41.5	45.5	2	M6	12	20	1 pieces
65	Red RAL 3020	Black grey RAL 7021	65	75	9.5	13.5	18	19.5	29.5	6.5	17.5	41.5	45.5	2	M8	12	20	1 pieces
80	Red RAL 3020	Black grey RAL 7021	80	91.5	11	16	21.5	23	38.5	10	24	53.5	58	3	M8	14	22	1 pieces
80	Red RAL 3020	Black grey RAL 7021	80	91.5	11	16	21.5	23	38.5	10	24	53.5	58	3	M10	14	22	1 pieces
95	Red RAL 3020	Black grey RAL 7021	95	109	13	19	25.5	27.5	44.6	10	26	61	66	4	M10	17	24	1 pieces
95	Red RAL 3020	Black grey RAL 7021	95	109	13	19	25.5	27.5	44.6	10	26	61	66	4	M12	17	24	1 pieces
110	Red RAL 3020	Black grey RAL 7021	110	126	15.5	23	30	32.5	50.6	12	33	72	77	5	M12	23	26	1 pieces
110	Red RAL 3020	Black grey RAL 7021	110	126	15.5	23	30	32.5	50.6	12	33	72	77	5	M16	23	26	1 pieces
40	Black grey RAL 7021	Orange RAL 2004	40	47	7.5	10	13	14.5	25.5	4	15	30	33.5	1	M4	9	16	1 pieces
40	Black grey RAL 7021	Orange RAL 2004	40	47	7.5	10	13	14.5	25.5	4	15	30	33.5	1	M5	9	16	1 pieces
40	Black grey RAL 7021	Orange RAL 2004	40	47	7.5	10	13	14.5	25.5	4	15	30	33.5	1	M6	9	16	1 pieces
65	Black grey RAL 7021	Orange RAL 2004	65	75	9.5	13.5	18	19.5	29.5	6.5	17.5	41.5	45.5	2	M6	12	20	1 pieces
65	Black grey RAL 7021	Orange RAL 2004	65	75	9.5	13.5	18	19.5	29.5	6.5	17.5	41.5	45.5	2	M8	12	20	1 pieces
80	Black grey RAL 7021	Orange RAL 2004	80	91.5	11	16	21.5	23	38.5	10	24	53.5	58	3	M8	14	22	1 pieces
80	Black grey RAL 7021	Orange RAL 2004	80	91.5	11	16	21.5	23	38.5	10	24	53.5	58	3	M10	14	22	1 pieces
95	Black grey RAL 7021	Orange RAL 2004	95	109	13	19	25.5	27.5	44.6	10	26	61	66	4	M10	17	24	1 pieces
95	Black grey RAL 7021	Orange RAL 2004	95	109	13	19	25.5	27.5	44.6	10	26	61	66	4	M12	17	24	1 pieces
110	Black grey RAL 7021	Orange RAL 2004	110	126	15.5	23	30	32.5	50.6	12	33	72	77	5	M12	23	26	1 pieces
110	Black grey RAL 7021	Orange RAL 2004	110	126	15.5	23	30	32.5	50.6	12	33	72	77	5	M16	23	26	1 pieces
40	Black grey RAL 7021	Red RAL 3020	40	47	7.5	10	13	14.5	25.5	4	15	30	33.5	1	M4	9	16	1 pieces
40	Black grey RAL 7021	Red RAL 3020	40	47	7.5	10	13	14.5	25.5	4	15	30	33.5	1	M5	9	16	1 pieces
40	Black grey RAL 7021	Red RAL 3020	40	47	7.5	10	13	14.5	25.5	4	15	30	33.5	1	M6	9	16	1 pieces
65	Black grey RAL 7021	Red RAL 3020	65	75	9.5	13.5	18	19.5	29.5	6.5	17.5	41.5	45.5	2	M6	12	20	1 pieces
65	Black grey RAL 7021	Red RAL 3020	65	75	9.5	13.5	18	19.5	29.5	6.5	17.5	41.5	45.5	2	M8	12	20	1 pieces
80	Black grey RAL 7021	Red RAL 3020	80	91.5	11	16	21.5	23	38.5	10	24	53.5	58	3	M8	14	22	1 pieces
80	Black grey RAL 7021	Red RAL 3020	80	91.5	11	16	21.5	23	38.5	10	24	53.5	58	3	M10	14	22	1 pieces
95	Black grey RAL 7021	Red RAL 3020	95	109	13	19	25.5	27.5	44.6	10	26	61	66	4	M10	17	24	1 pieces
95	Black grey RAL 7021	Red RAL 3020	95	109	13	19	25.5	27.5	44.6	10	26	61	66	4	M12	17	24	1 pieces
110	Black grey RAL 7021	Red RAL 3020	110	126	15.5	23	30	32.5	50.6	12	33	72	77	5	M12	23	26	1 pieces
110	Black grey RAL 7021	Red RAL 3020	110	126	15.5	23	30	32.5	50.6	12	33	72	77	5	M16	23	26	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

7.40 € ( 8.81 € )	4 working days
7.40 € ( 8.81 € )	4 working days
7.40 € ( 8.81 € )	4 working days
8.72 € ( 10.38 € )	4 working days
8.72 € ( 10.38 € )	4 working days
10.74 € ( 12.78 € )	4 working days
10.74 € ( 12.78 € )	4 working days
15.46 € ( 18.40 € )	4 working days
15.46 € ( 18.40 € )	4 working days
18.62 € ( 22.16 € )	4 working days
18.62 € ( 22.16 € )	4 working days
7.40 € ( 8.81 € )	4 working days
7.40 € ( 8.81 € )	4 working days
7.40 € ( 8.81 € )	4 working days
8.72 € ( 10.38 € )	4 working days
8.72 € ( 10.38 € )	4 working days
10.74 € ( 12.78 € )	4 working days
10.74 € ( 12.78 € )	4 working days
15.46 € ( 18.40 € )	4 working days
15.46 € ( 18.40 € )	4 working days
18.62 € ( 22.16 € )	4 working days
18.62 € ( 22.16 € )	4 working days
7.40 € ( 8.81 € )	4 working days
7.40 € ( 8.81 € )	4 working days
7.40 € ( 8.81 € )	4 working days
8.72 € ( 10.38 € )	4 working days
8.72 € ( 10.38 € )	4 working days
10.74 € ( 12.78 € )	4 working days
10.74 € ( 12.78 € )	4 working days
15.46 € ( 18.40 € )	4 working days
15.46 € ( 18.40 € )	4 working days
18.62 € ( 22.16 € )	4 working days
18.62 € ( 22.16 € )	4 working days

More Information

Basic information

Basic information

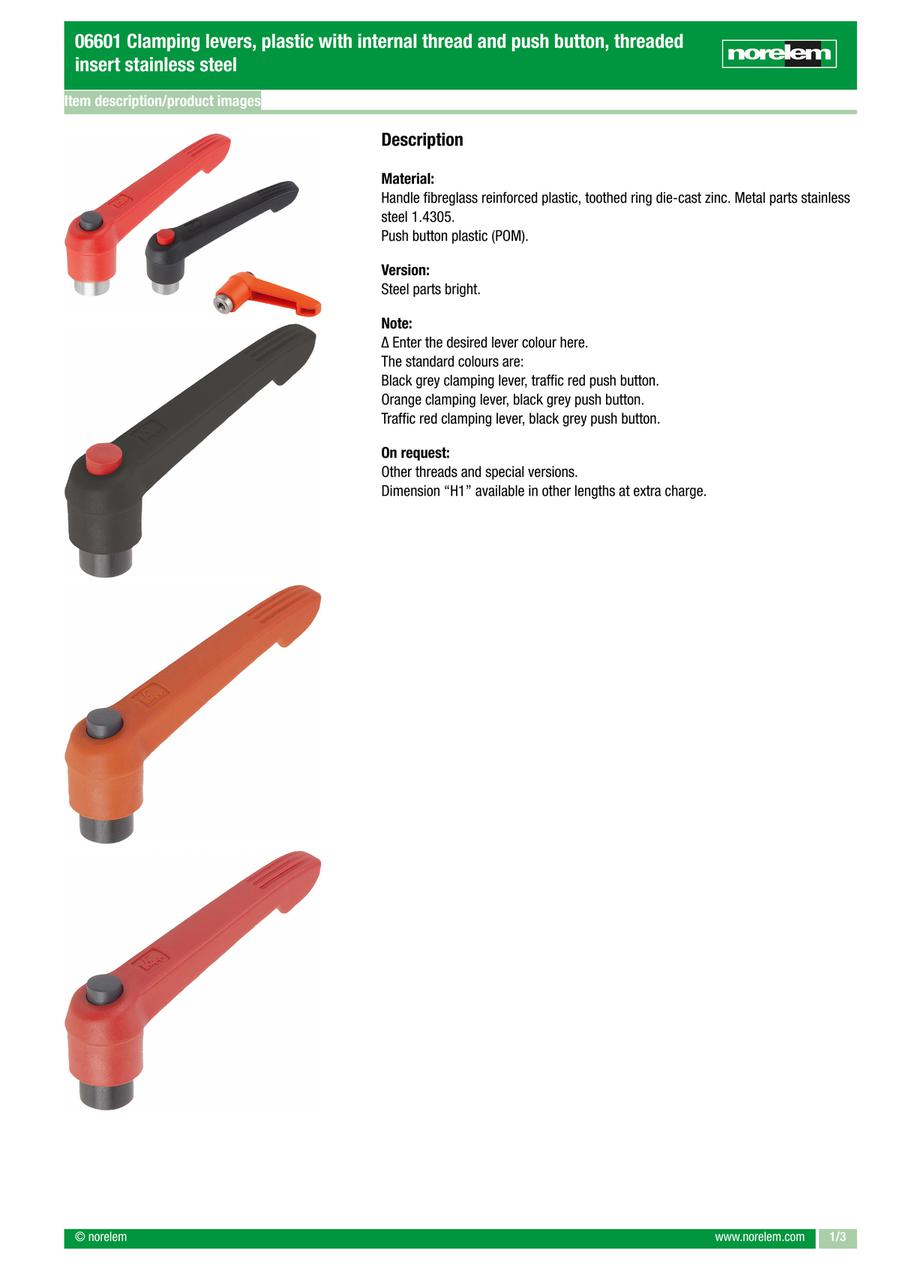

· The KIPP clamping lever represents reliability, stability and versatility

· Makes it easier to clamp devices or machine parts

· Application fields: machine construction, plant construction, rehabilitation and medical technology, furniture industry

· Push button eases the release and makes handling the lever safer.

· Various colour combinations
