Clamping levers, plastic with external thread and clamping force intensifier, threaded insert stainless steel (06611-10)

Configure

Handle length(mm)
- 65
- 80
- 95.4
- 109.9
Main colour
A1=Handle length(mm)
- 77.5
- 95
- 110.4
- 127.4
B(mm)
- 9.4
- 11.1
- 13.2
- 15.6
D2(mm)
- 25
- 30
- 35
H(mm)
- 38.5
- 47
- 53.1
- 59.1
H2(mm)
- 27.5
- 34
- 36
- 43
H3=handle height(mm)
- 51.6
- 63.4
- 71.1
- 82.8
H4(mm)
- 55.6
- 67.9
- 76.1
- 87.8
L=thread length(mm)
- 10
- 15
- 20
- 30
- 40
- 50
Size
- 2
- 3
- 4
- 5
X=thread
- M8
- M10
- M12
Est. shipping days
- All
- Within 4 working days

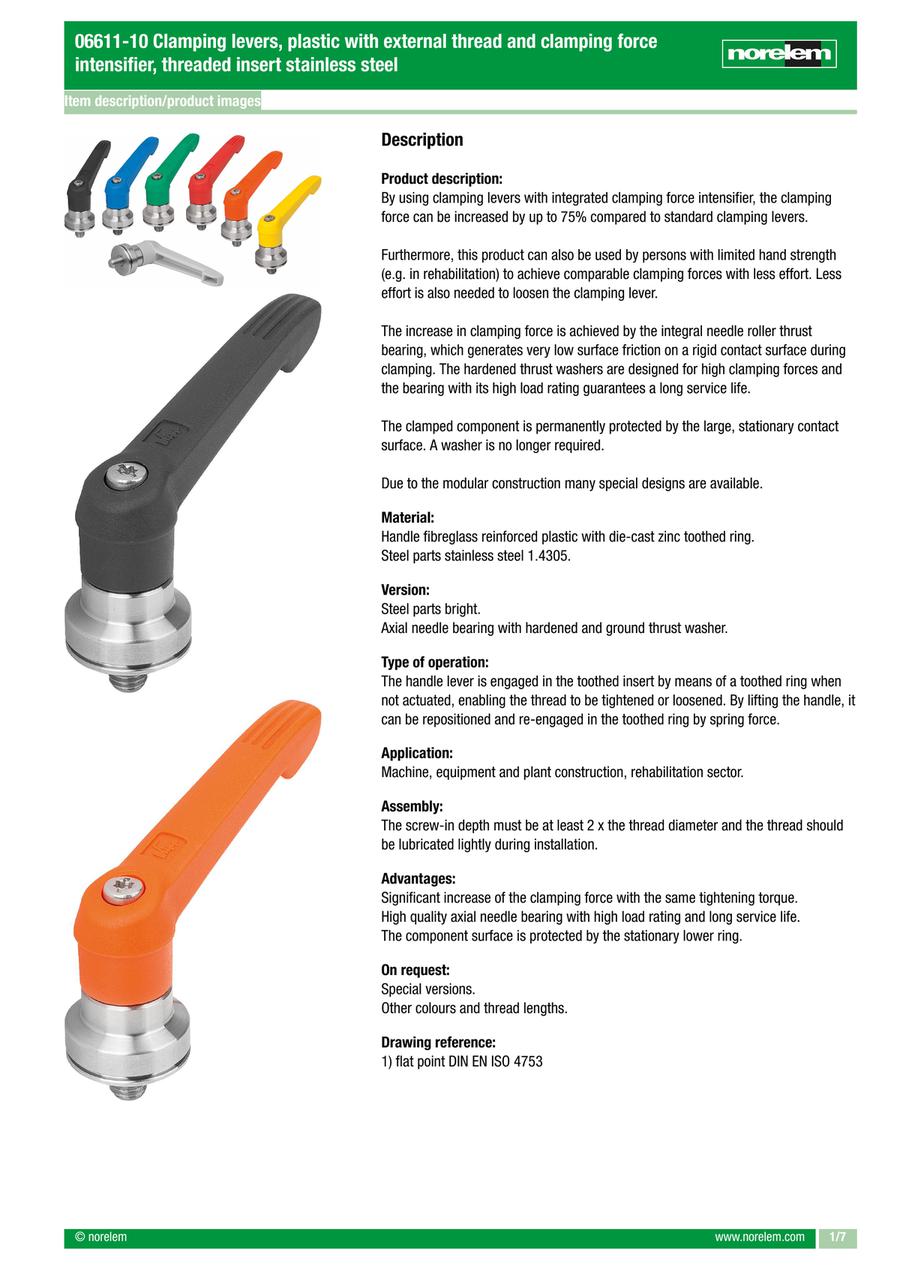

Clamping levers, plastic with external thread and clamping force intensifier, threaded insert stainless steel (06611-10)

Catalog

Part number:

Still undefined. 112 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Handle length

(mm)

Main colour

A1=Handle length

(mm)

H3=handle height

(mm)

L=thread length

(mm)

Size

X=thread

Minimum order quantity

65	Black grey RAL 7021	77.5	9.4	25	38.5	27.5	51.6	55.6	10	2	M8	1 pieces
65	Black grey RAL 7021	77.5	9.4	25	38.5	27.5	51.6	55.6	20	2	M8	1 pieces
65	Black grey RAL 7021	77.5	9.4	25	38.5	27.5	51.6	55.6	30	2	M8	1 pieces
65	Black grey RAL 7021	77.5	9.4	25	38.5	27.5	51.6	55.6	40	2	M8	1 pieces
65	Orange RAL 2004	77.5	9.4	25	38.5	27.5	51.6	55.6	10	2	M8	1 pieces
65	Orange RAL 2004	77.5	9.4	25	38.5	27.5	51.6	55.6	20	2	M8	1 pieces
65	Orange RAL 2004	77.5	9.4	25	38.5	27.5	51.6	55.6	30	2	M8	1 pieces
65	Orange RAL 2004	77.5	9.4	25	38.5	27.5	51.6	55.6	40	2	M8	1 pieces
65	Rape yellow RAL 1021	77.5	9.4	25	38.5	27.5	51.6	55.6	10	2	M8	1 pieces
65	Rape yellow RAL 1021	77.5	9.4	25	38.5	27.5	51.6	55.6	20	2	M8	1 pieces
65	Rape yellow RAL 1021	77.5	9.4	25	38.5	27.5	51.6	55.6	30	2	M8	1 pieces
65	Rape yellow RAL 1021	77.5	9.4	25	38.5	27.5	51.6	55.6	40	2	M8	1 pieces
65	Red RAL 3020	77.5	9.4	25	38.5	27.5	51.6	55.6	10	2	M8	1 pieces
65	Red RAL 3020	77.5	9.4	25	38.5	27.5	51.6	55.6	20	2	M8	1 pieces
65	Red RAL 3020	77.5	9.4	25	38.5	27.5	51.6	55.6	30	2	M8	1 pieces
65	Red RAL 3020	77.5	9.4	25	38.5	27.5	51.6	55.6	40	2	M8	1 pieces
65	Signal green RAL 6032	77.5	9.4	25	38.5	27.5	51.6	55.6	10	2	M8	1 pieces
65	Signal green RAL 6032	77.5	9.4	25	38.5	27.5	51.6	55.6	20	2	M8	1 pieces
65	Signal green RAL 6032	77.5	9.4	25	38.5	27.5	51.6	55.6	30	2	M8	1 pieces
65	Signal green RAL 6032	77.5	9.4	25	38.5	27.5	51.6	55.6	40	2	M8	1 pieces
65	Traffic blue RAL 5017	77.5	9.4	25	38.5	27.5	51.6	55.6	10	2	M8	1 pieces
65	Traffic blue RAL 5017	77.5	9.4	25	38.5	27.5	51.6	55.6	20	2	M8	1 pieces
65	Traffic blue RAL 5017	77.5	9.4	25	38.5	27.5	51.6	55.6	30	2	M8	1 pieces
65	Traffic blue RAL 5017	77.5	9.4	25	38.5	27.5	51.6	55.6	40	2	M8	1 pieces
65	Light grey RAL 7035	77.5	9.4	25	38.5	27.5	51.6	55.6	10	2	M8	1 pieces
65	Light grey RAL 7035	77.5	9.4	25	38.5	27.5	51.6	55.6	20	2	M8	1 pieces
65	Light grey RAL 7035	77.5	9.4	25	38.5	27.5	51.6	55.6	30	2	M8	1 pieces
65	Light grey RAL 7035	77.5	9.4	25	38.5	27.5	51.6	55.6	40	2	M8	1 pieces
80	Black grey RAL 7021	95	11.1	30	47	34	63.4	67.9	15	3	M10	1 pieces
80	Black grey RAL 7021	95	11.1	30	47	34	63.4	67.9	30	3	M10	1 pieces
80	Black grey RAL 7021	95	11.1	30	47	34	63.4	67.9	40	3	M10	1 pieces
80	Black grey RAL 7021	95	11.1	30	47	34	63.4	67.9	50	3	M10	1 pieces
80	Orange RAL 2004	95	11.1	30	47	34	63.4	67.9	15	3	M10	1 pieces
80	Orange RAL 2004	95	11.1	30	47	34	63.4	67.9	30	3	M10	1 pieces
80	Orange RAL 2004	95	11.1	30	47	34	63.4	67.9	40	3	M10	1 pieces
80	Orange RAL 2004	95	11.1	30	47	34	63.4	67.9	50	3	M10	1 pieces
80	Rape yellow RAL 1021	95	11.1	30	47	34	63.4	67.9	15	3	M10	1 pieces
80	Rape yellow RAL 1021	95	11.1	30	47	34	63.4	67.9	30	3	M10	1 pieces
80	Rape yellow RAL 1021	95	11.1	30	47	34	63.4	67.9	40	3	M10	1 pieces
80	Rape yellow RAL 1021	95	11.1	30	47	34	63.4	67.9	50	3	M10	1 pieces
80	Red RAL 3020	95	11.1	30	47	34	63.4	67.9	15	3	M10	1 pieces
80	Red RAL 3020	95	11.1	30	47	34	63.4	67.9	30	3	M10	1 pieces
80	Red RAL 3020	95	11.1	30	47	34	63.4	67.9	40	3	M10	1 pieces
80	Red RAL 3020	95	11.1	30	47	34	63.4	67.9	50	3	M10	1 pieces
80	Signal green RAL 6032	95	11.1	30	47	34	63.4	67.9	15	3	M10	1 pieces
80	Signal green RAL 6032	95	11.1	30	47	34	63.4	67.9	30	3	M10	1 pieces
80	Signal green RAL 6032	95	11.1	30	47	34	63.4	67.9	40	3	M10	1 pieces
80	Signal green RAL 6032	95	11.1	30	47	34	63.4	67.9	50	3	M10	1 pieces
80	Traffic blue RAL 5017	95	11.1	30	47	34	63.4	67.9	15	3	M10	1 pieces
80	Traffic blue RAL 5017	95	11.1	30	47	34	63.4	67.9	30	3	M10	1 pieces
80	Traffic blue RAL 5017	95	11.1	30	47	34	63.4	67.9	40	3	M10	1 pieces
80	Traffic blue RAL 5017	95	11.1	30	47	34	63.4	67.9	50	3	M10	1 pieces
80	Light grey RAL 7035	95	11.1	30	47	34	63.4	67.9	15	3	M10	1 pieces
80	Light grey RAL 7035	95	11.1	30	47	34	63.4	67.9	30	3	M10	1 pieces
80	Light grey RAL 7035	95	11.1	30	47	34	63.4	67.9	40	3	M10	1 pieces
80	Light grey RAL 7035	95	11.1	30	47	34	63.4	67.9	50	3	M10	1 pieces
95.4	Black grey RAL 7021	110.4	13.2	30	53.1	36	71.1	76.1	20	4	M10	1 pieces
95.4	Black grey RAL 7021	110.4	13.2	30	53.1	36	71.1	76.1	30	4	M10	1 pieces
95.4	Black grey RAL 7021	110.4	13.2	30	53.1	36	71.1	76.1	40	4	M10	1 pieces
95.4	Black grey RAL 7021	110.4	13.2	30	53.1	36	71.1	76.1	50	4	M10	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

34.36 € ( 40.89 € )	4 working days
34.36 € ( 40.89 € )	4 working days
34.36 € ( 40.89 € )	4 working days
35.02 € ( 41.67 € )	4 working days
34.36 € ( 40.89 € )	4 working days
34.36 € ( 40.89 € )	4 working days
34.36 € ( 40.89 € )	4 working days
35.02 € ( 41.67 € )	4 working days
34.36 € ( 40.89 € )	4 working days
34.36 € ( 40.89 € )	4 working days
34.36 € ( 40.89 € )	4 working days
35.02 € ( 41.67 € )	4 working days
34.36 € ( 40.89 € )	4 working days
34.36 € ( 40.89 € )	4 working days
34.36 € ( 40.89 € )	4 working days
35.02 € ( 41.67 € )	4 working days
34.36 € ( 40.89 € )	4 working days
34.36 € ( 40.89 € )	4 working days
34.36 € ( 40.89 € )	4 working days
35.02 € ( 41.67 € )	4 working days
34.36 € ( 40.89 € )	4 working days
34.36 € ( 40.89 € )	4 working days
34.36 € ( 40.89 € )	4 working days
35.02 € ( 41.67 € )	4 working days
34.36 € ( 40.89 € )	4 working days
34.36 € ( 40.89 € )	4 working days
34.36 € ( 40.89 € )	4 working days
35.02 € ( 41.67 € )	4 working days
35.87 € ( 42.69 € )	4 working days
35.87 € ( 42.69 € )	4 working days
36.56 € ( 43.51 € )	4 working days
36.56 € ( 43.51 € )	4 working days
35.87 € ( 42.69 € )	4 working days
35.87 € ( 42.69 € )	4 working days
36.56 € ( 43.51 € )	4 working days
36.56 € ( 43.51 € )	4 working days
35.87 € ( 42.69 € )	4 working days
35.87 € ( 42.69 € )	4 working days
36.56 € ( 43.51 € )	4 working days
36.56 € ( 43.51 € )	4 working days
35.87 € ( 42.69 € )	4 working days
35.87 € ( 42.69 € )	4 working days
36.56 € ( 43.51 € )	4 working days
36.56 € ( 43.51 € )	4 working days
35.87 € ( 42.69 € )	4 working days
35.87 € ( 42.69 € )	4 working days
36.56 € ( 43.51 € )	4 working days
36.56 € ( 43.51 € )	4 working days
35.87 € ( 42.69 € )	4 working days
35.87 € ( 42.69 € )	4 working days
36.56 € ( 43.51 € )	4 working days
36.56 € ( 43.51 € )	4 working days
35.87 € ( 42.69 € )	4 working days
35.87 € ( 42.69 € )	4 working days
36.56 € ( 43.51 € )	4 working days
36.56 € ( 43.51 € )	4 working days
38.74 € ( 46.10 € )	4 working days
38.74 € ( 46.10 € )	4 working days
40.43 € ( 48.11 € )	4 working days
40.43 € ( 48.11 € )	4 working days

Basic information

Basic information

· Significant increase of the clamping force with the same tightening torque

· High quality axial needle bearing with high load rating and long service life

· The component surface is protected by the stationary lower ring
