NORELEM

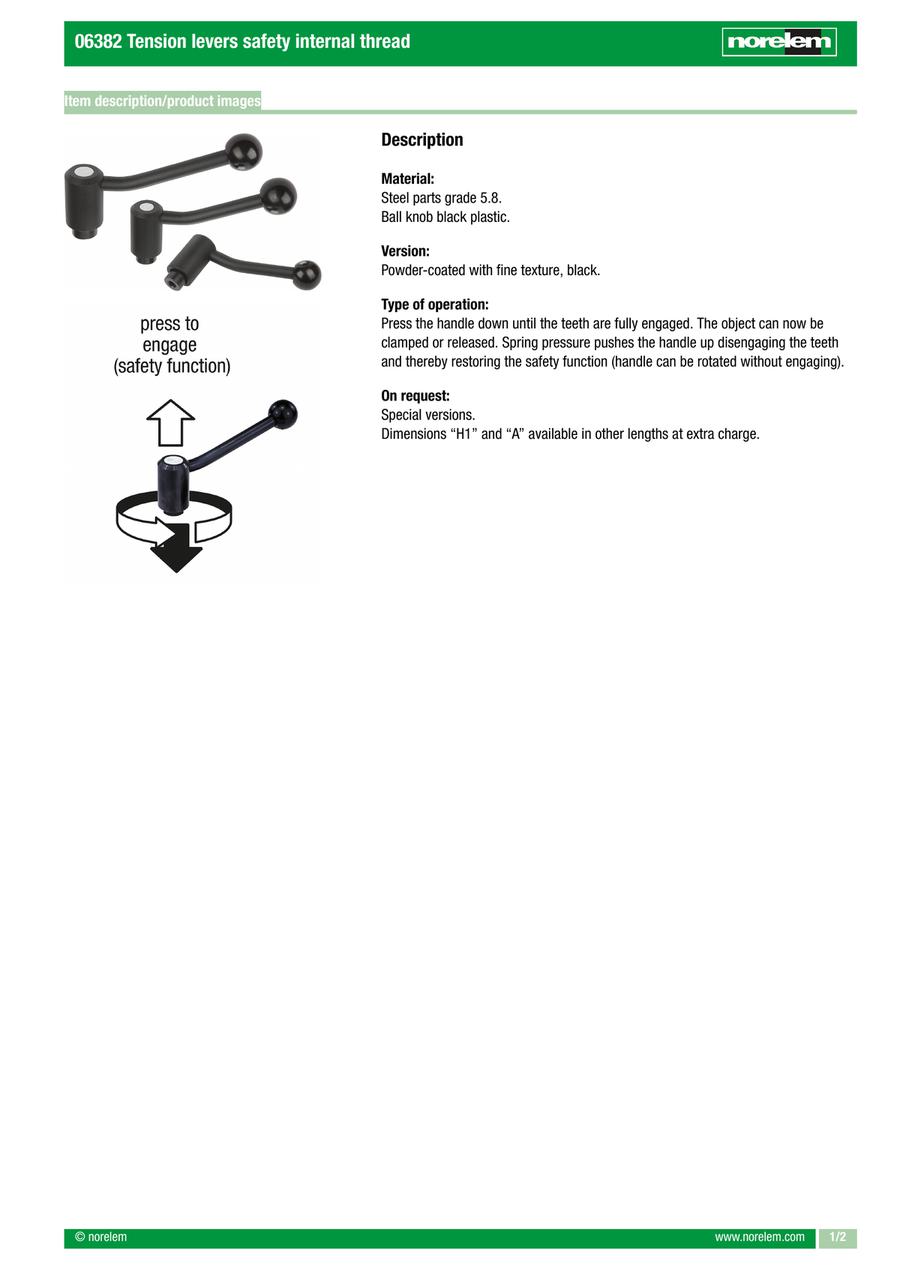

Tension levers safety internal thread (06382)

Tension levers safety internal thread (06382)

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06382-1108
    06382-1110
    06382-1210
    06382-1212
    06382-1312
    06382-1316

    Handle length

    (mm)

    D

    (mm)

    D1

    (mm)

    D2

    (mm)

    D3

    (mm)

    H

    (mm)

    H1

    (mm)

    H2

    (mm)

    H3

    (mm)

    H4

    (mm)

    Size

    X=thread

    T=thread depth

    (mm)

    No. of teeth

    		Minimum order quantity
    88
    16
    24
    25
    10
    44.5
    9.5
    49.3
    49.5
    63.5
    1
    M8
    14
    22
    1 pieces
    88
    16
    24
    25
    10
    44.5
    9.5
    49.3
    49.5
    63.5
    1
    M10
    14
    22
    1 pieces
    106
    19
    28
    32
    12
    51
    10.5
    56.3
    56.5
    74
    2
    M10
    17
    24
    1 pieces
    106
    19
    28
    32
    12
    51
    10.5
    56.3
    56.5
    74
    2
    M12
    17
    24
    1 pieces
    128.5
    23
    33
    32
    13
    57.5
    12.5
    64.5
    64.5
    87.5
    3
    M12
    23
    26
    1 pieces
    128.5
    23
    33
    32
    13
    57.5
    12.5
    64.5
    64.5
    87.5
    3
    M16
    23
    26
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    20.08 €
    ( 23.90 € )
    4 working days
    20.08 €
    ( 23.90 € )
    4 working days
    24.54 €
    ( 29.20 € )
    4 working days
    24.54 €
    ( 29.20 € )
    4 working days
    29.49 €
    ( 35.09 € )
    4 working days
    29.49 €
    ( 35.09 € )
    4 working days
  • 1

    • More Information

    Basic information

    · The clamping lever represents reliability and a high level of stability

    · Makes it easier to clamp individual components and complete machine parts

    · Application fields: machine construction, plant construction, rehabilitation and medical technology, furniture industry

    · Safety function: push down to engage

    · Different thread sizes and handle lengths
