NORELEM

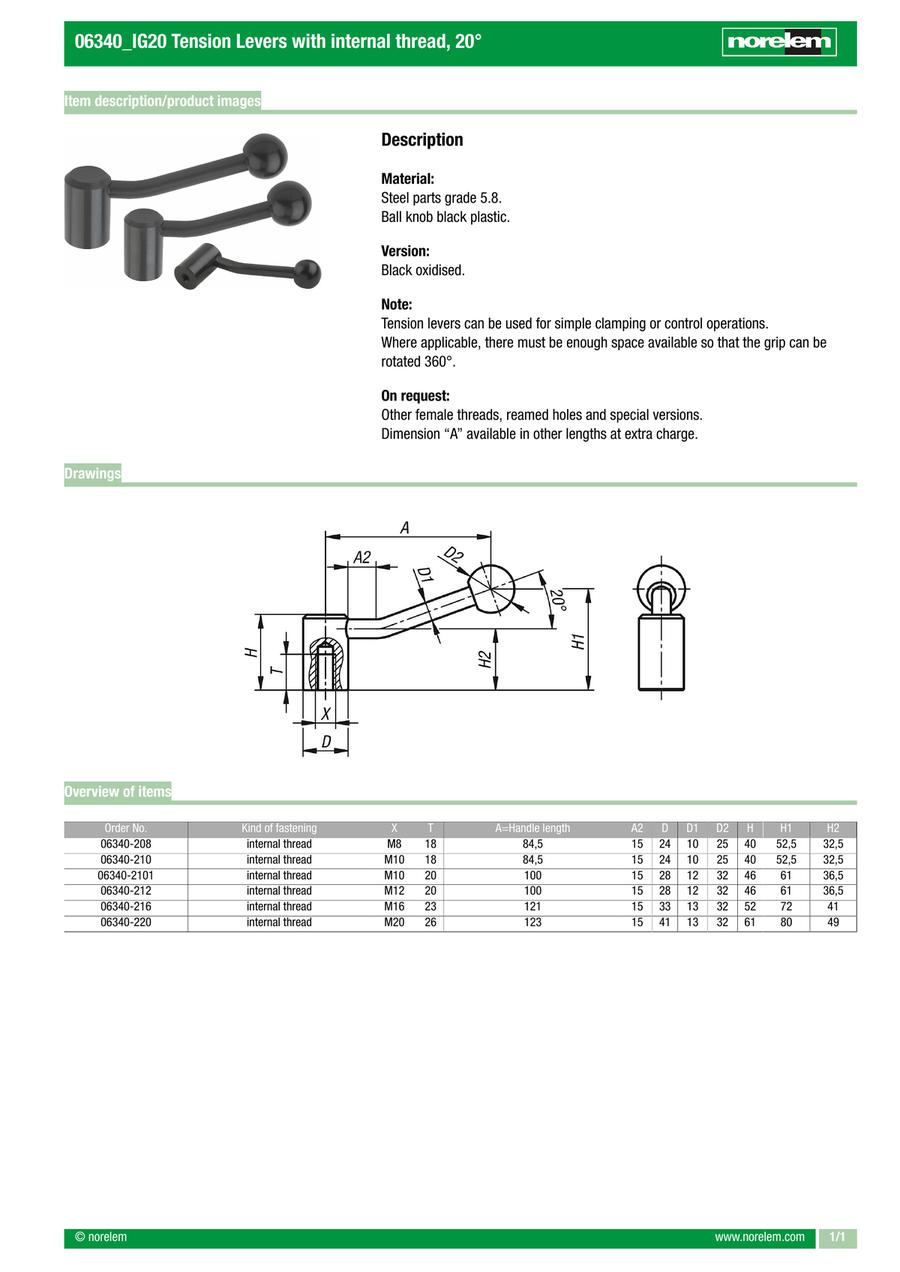

Tension Levers with internal thread, 20° (06340)

Tension Levers with internal thread, 20° (06340)

Part number:

Still undefined. 5 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06340-208
    06340-210
    06340-212
    06340-216
    06340-220

    Handle length

    (mm)

    D

    (mm)

    D1

    (mm)

    D2

    (mm)

    H

    (mm)

    H1

    (mm)

    H2

    (mm)

    Size

    X=thread

    T=thread depth

    (mm)

    		Minimum order quantity
    84.5
    24
    10
    25
    40
    52.5
    32.5
    1
    M8
    18
    1 pieces
    84.5
    24
    10
    25
    40
    52.5
    32.5
    1
    M10
    18
    1 pieces
    100
    28
    12
    32
    46
    61
    36.5
    2
    M12
    20
    1 pieces
    121
    33
    13
    32
    52
    72
    41
    3
    M16
    23
    1 pieces
    123
    41
    13
    32
    61
    80
    49
    4
    M20
    26
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    10.46 €
    ( 12.45 € )
    4 working days
    10.46 €
    ( 12.45 € )
    4 working days
    12.99 €
    ( 15.46 € )
    4 working days
    15.69 €
    ( 18.67 € )
    4 working days
    21.75 €
    ( 25.88 € )
    4 working days
  • 1

    • More Information

    Basic information

    · The clamping lever represents reliability and a high level of stability

    · Makes it easier to clamp individual components and complete machine parts

    · Application fields: machine construction, plant construction, rehabilitation and medical technology, furniture industry

    · Version: internal thread

    · Different thread sizes and handle lengths
