NORELEM

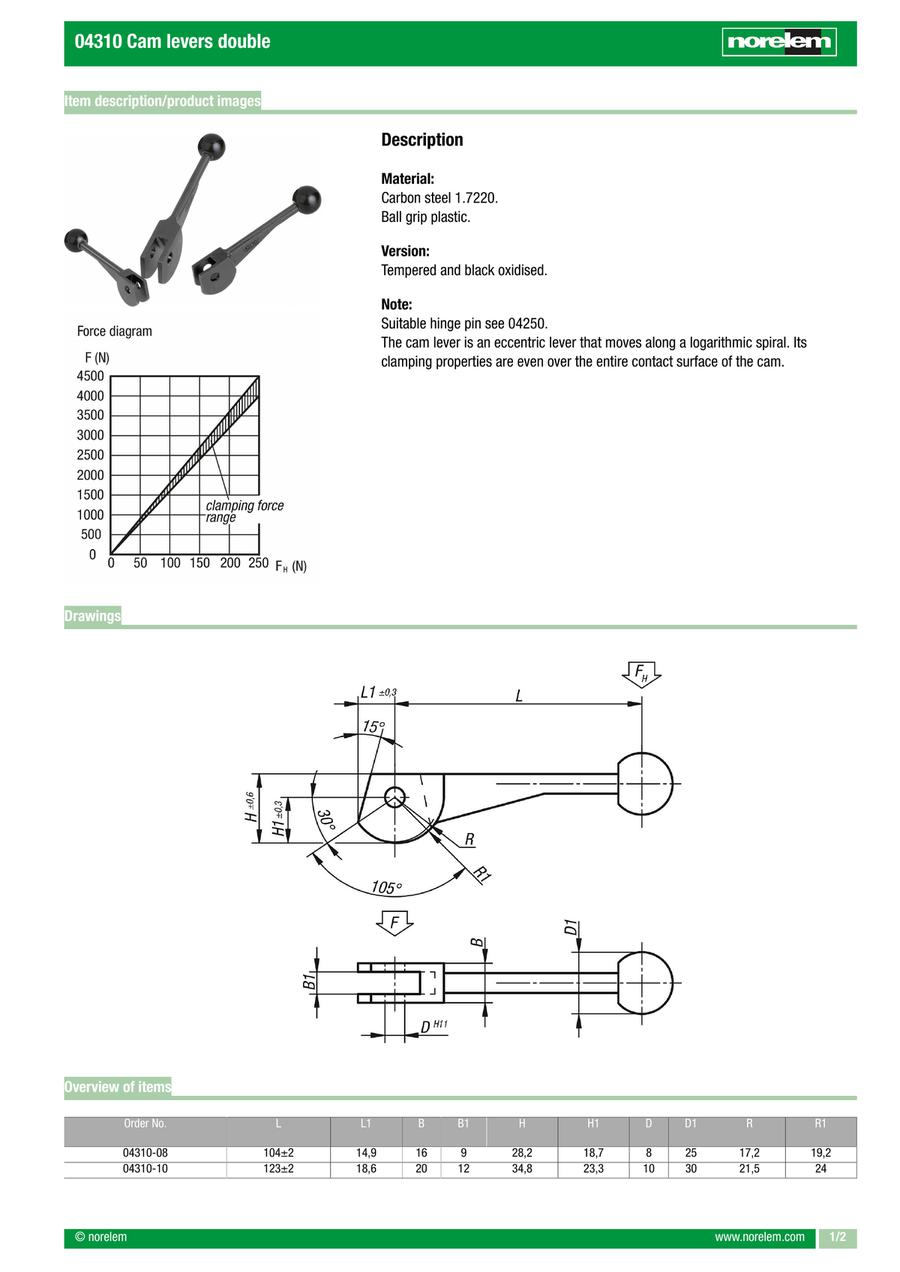

Cam levers double (04310)

Cam levers double (04310)

Part number:

Still undefined. 3 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    04310-08
    04310-10
    04310-12

    B

    (mm)

    B1

    (mm)

    D=Fastening hole

    (mm)

    D1

    (mm)

    H

    (mm)

    H1

    (mm)

    L=Handle length

    (mm)

    L1

    (mm)

    R

    (mm)

    R1

    (mm)

    		Minimum order quantity
    16
    9
    8
    25
    28.2
    18.7
    104±2
    14.9
    17.2
    19.2
    1 pieces
    20
    12
    10
    30
    34.8
    23.3
    123±2
    18.6
    21.5
    24
    1 pieces
    25
    14
    12
    30
    43.8
    30.3
    146±3
    24.3
    28
    31.2
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    43.99 €
    ( 52.35 € )
    4 working days
    53.61 €
    ( 63.80 € )
    4 working days
    70.13 €
    ( 83.45 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Cam levers are used for quick and torque-free clamping

    · Workpiece needs no further securing

    · Easy to operate

    · High clamping forces

    · Application sectors: machine construction, toolmaking, fixture construction
