Cam levers, aluminium, adjustable with external thread, plastic thrust washer and steel or stainless steel stud (04233)

Configure

Handle length(mm)
- 36.2
- 52.3
- 70.4
- 96
Component material
- Stainless steel
- Steel
Main colour
- Black
- Ruby red
A1=Handle length(mm)
- 41.7
- 59.1
- 79.2
- 108
B=Width(mm)
- 14.4
- 18
- 21.5
- 33.3
B1(mm)
- 11.5
- 13
- 15
- 24
D=thread(mm)
- M3
- M4
- M5
- M6
- M8
- M10
D1(mm)
- 12
- 15.4
- 18.1
- 27.1
D2(mm)
- 6
- 8
- 9
- 11
H(mm)
- 9
- 11.2
- 14.5
- 18
H1=Height(mm)
- 13
- 17
- 22
- 28.5
L=thread length(mm)
- 10
- 15
- 20
- 25
- 30
- 40
- 50
Size
- 0
- 1
- 2
- 9
Travel S(mm)
- 1
- 1.2
- 1.5
Clamping force F(kN)
- 1.5
- 2.5
- 4
- 8
Hand force FH(N)
- 90
- 100
- 120
- 350
Est. shipping days
- All
- Within 4 working days

Cam levers, aluminium, adjustable with external thread, plastic thrust washer and steel or stainless steel stud (04233)

Catalog

Part number:

Still undefined. 116 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Handle length

(mm)

Component material

Main colour

A1=Handle length

(mm)

B=Width

(mm)

D=thread

(mm)

H1=Height

(mm)

L=thread length

(mm)

Size

Travel S

(mm)

Clamping force F

(kN)

Hand force FH

(N)

Minimum order quantity

52.3	Steel	Black	59.1	18	13	M4	15.4	8	11.2	17	15	0	1	2.5	100	1 pieces
52.3	Steel	Black	59.1	18	13	M4	15.4	8	11.2	17	20	0	1	2.5	100	1 pieces
52.3	Steel	Black	59.1	18	13	M4	15.4	8	11.2	17	30	0	1	2.5	100	1 pieces
52.3	Steel	Black	59.1	18	13	M5	15.4	8	11.2	17	20	0	1	2.5	100	1 pieces
52.3	Steel	Black	59.1	18	13	M5	15.4	8	11.2	17	30	0	1	2.5	100	1 pieces
52.3	Steel	Black	59.1	18	13	M5	15.4	8	11.2	17	40	0	1	2.5	100	1 pieces
52.3	Steel	Black	59.1	18	13	M5	15.4	8	11.2	17	50	0	1	2.5	100	1 pieces
52.3	Steel	Ruby red	59.1	18	13	M4	15.4	8	11.2	17	15	0	1	2.5	100	1 pieces
52.3	Steel	Ruby red	59.1	18	13	M4	15.4	8	11.2	17	20	0	1	2.5	100	1 pieces
52.3	Steel	Ruby red	59.1	18	13	M4	15.4	8	11.2	17	30	0	1	2.5	100	1 pieces
52.3	Steel	Ruby red	59.1	18	13	M5	15.4	8	11.2	17	20	0	1	2.5	100	1 pieces
52.3	Steel	Ruby red	59.1	18	13	M5	15.4	8	11.2	17	30	0	1	2.5	100	1 pieces
52.3	Steel	Ruby red	59.1	18	13	M5	15.4	8	11.2	17	40	0	1	2.5	100	1 pieces
52.3	Steel	Ruby red	59.1	18	13	M5	15.4	8	11.2	17	50	0	1	2.5	100	1 pieces
52.3	Stainless steel	Black	59.1	18	13	M4	15.4	8	11.2	17	15	0	1	2.5	100	1 pieces
52.3	Stainless steel	Black	59.1	18	13	M4	15.4	8	11.2	17	20	0	1	2.5	100	1 pieces
52.3	Stainless steel	Black	59.1	18	13	M4	15.4	8	11.2	17	30	0	1	2.5	100	1 pieces
52.3	Stainless steel	Black	59.1	18	13	M5	15.4	8	11.2	17	20	0	1	2.5	100	1 pieces
52.3	Stainless steel	Black	59.1	18	13	M5	15.4	8	11.2	17	30	0	1	2.5	100	1 pieces
52.3	Stainless steel	Black	59.1	18	13	M5	15.4	8	11.2	17	40	0	1	2.5	100	1 pieces
52.3	Stainless steel	Black	59.1	18	13	M5	15.4	8	11.2	17	50	0	1	2.5	100	1 pieces
52.3	Stainless steel	Ruby red	59.1	18	13	M4	15.4	8	11.2	17	15	0	1	2.5	100	1 pieces
52.3	Stainless steel	Ruby red	59.1	18	13	M4	15.4	8	11.2	17	20	0	1	2.5	100	1 pieces
52.3	Stainless steel	Ruby red	59.1	18	13	M4	15.4	8	11.2	17	30	0	1	2.5	100	1 pieces
52.3	Stainless steel	Ruby red	59.1	18	13	M5	15.4	8	11.2	17	20	0	1	2.5	100	1 pieces
52.3	Stainless steel	Ruby red	59.1	18	13	M5	15.4	8	11.2	17	30	0	1	2.5	100	1 pieces
52.3	Stainless steel	Ruby red	59.1	18	13	M5	15.4	8	11.2	17	40	0	1	2.5	100	1 pieces
52.3	Stainless steel	Ruby red	59.1	18	13	M5	15.4	8	11.2	17	50	0	1	2.5	100	1 pieces
70.4	Steel	Black	79.2	21.5	15	M5	18.1	9	14.5	22	20	1	1.2	4	120	1 pieces
70.4	Steel	Black	79.2	21.5	15	M5	18.1	9	14.5	22	30	1	1.2	4	120	1 pieces
70.4	Steel	Black	79.2	21.5	15	M5	18.1	9	14.5	22	40	1	1.2	4	120	1 pieces
70.4	Steel	Black	79.2	21.5	15	M5	18.1	9	14.5	22	50	1	1.2	4	120	1 pieces
70.4	Steel	Black	79.2	21.5	15	M6	18.1	9	14.5	22	20	1	1.2	4	120	1 pieces
70.4	Steel	Black	79.2	21.5	15	M6	18.1	9	14.5	22	30	1	1.2	4	120	1 pieces
70.4	Steel	Black	79.2	21.5	15	M6	18.1	9	14.5	22	40	1	1.2	4	120	1 pieces
70.4	Steel	Black	79.2	21.5	15	M6	18.1	9	14.5	22	50	1	1.2	4	120	1 pieces
70.4	Steel	Ruby red	79.2	21.5	15	M5	18.1	9	14.5	22	20	1	1.2	4	120	1 pieces
70.4	Steel	Ruby red	79.2	21.5	15	M5	18.1	9	14.5	22	30	1	1.2	4	120	1 pieces
70.4	Steel	Ruby red	79.2	21.5	15	M5	18.1	9	14.5	22	40	1	1.2	4	120	1 pieces
70.4	Steel	Ruby red	79.2	21.5	15	M5	18.1	9	14.5	22	50	1	1.2	4	120	1 pieces
70.4	Steel	Ruby red	79.2	21.5	15	M6	18.1	9	14.5	22	20	1	1.2	4	120	1 pieces
70.4	Steel	Ruby red	79.2	21.5	15	M6	18.1	9	14.5	22	30	1	1.2	4	120	1 pieces
70.4	Steel	Ruby red	79.2	21.5	15	M6	18.1	9	14.5	22	40	1	1.2	4	120	1 pieces
70.4	Steel	Ruby red	79.2	21.5	15	M6	18.1	9	14.5	22	50	1	1.2	4	120	1 pieces
70.4	Stainless steel	Black	79.2	21.5	15	M5	18.1	9	14.5	22	20	1	1.2	4	120	1 pieces
70.4	Stainless steel	Black	79.2	21.5	15	M5	18.1	9	14.5	22	30	1	1.2	4	120	1 pieces
70.4	Stainless steel	Black	79.2	21.5	15	M5	18.1	9	14.5	22	40	1	1.2	4	120	1 pieces
70.4	Stainless steel	Black	79.2	21.5	15	M5	18.1	9	14.5	22	50	1	1.2	4	120	1 pieces
70.4	Stainless steel	Black	79.2	21.5	15	M6	18.1	9	14.5	22	20	1	1.2	4	120	1 pieces
70.4	Stainless steel	Black	79.2	21.5	15	M6	18.1	9	14.5	22	30	1	1.2	4	120	1 pieces
70.4	Stainless steel	Black	79.2	21.5	15	M6	18.1	9	14.5	22	40	1	1.2	4	120	1 pieces
70.4	Stainless steel	Black	79.2	21.5	15	M6	18.1	9	14.5	22	50	1	1.2	4	120	1 pieces
70.4	Stainless steel	Ruby red	79.2	21.5	15	M5	18.1	9	14.5	22	20	1	1.2	4	120	1 pieces
70.4	Stainless steel	Ruby red	79.2	21.5	15	M5	18.1	9	14.5	22	30	1	1.2	4	120	1 pieces
70.4	Stainless steel	Ruby red	79.2	21.5	15	M5	18.1	9	14.5	22	40	1	1.2	4	120	1 pieces
70.4	Stainless steel	Ruby red	79.2	21.5	15	M5	18.1	9	14.5	22	50	1	1.2	4	120	1 pieces
70.4	Stainless steel	Ruby red	79.2	21.5	15	M6	18.1	9	14.5	22	20	1	1.2	4	120	1 pieces
70.4	Stainless steel	Ruby red	79.2	21.5	15	M6	18.1	9	14.5	22	30	1	1.2	4	120	1 pieces
70.4	Stainless steel	Ruby red	79.2	21.5	15	M6	18.1	9	14.5	22	40	1	1.2	4	120	1 pieces
70.4	Stainless steel	Ruby red	79.2	21.5	15	M6	18.1	9	14.5	22	50	1	1.2	4	120	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

10.25 € ( 12.20 € )	4 working days
10.25 € ( 12.20 € )	4 working days
10.25 € ( 12.20 € )	4 working days
10.25 € ( 12.20 € )	4 working days
10.25 € ( 12.20 € )	4 working days
10.96 € ( 13.04 € )	4 working days
10.96 € ( 13.04 € )	4 working days
10.25 € ( 12.20 € )	4 working days
10.25 € ( 12.20 € )	4 working days
10.25 € ( 12.20 € )	4 working days
10.25 € ( 12.20 € )	4 working days
10.25 € ( 12.20 € )	4 working days
10.96 € ( 13.04 € )	4 working days
10.96 € ( 13.04 € )	4 working days
14.63 € ( 17.41 € )	4 working days
14.63 € ( 17.41 € )	4 working days
14.63 € ( 17.41 € )	4 working days
14.63 € ( 17.41 € )	4 working days
14.63 € ( 17.41 € )	4 working days
15.54 € ( 18.49 € )	4 working days
15.54 € ( 18.49 € )	4 working days
14.63 € ( 17.41 € )	4 working days
14.63 € ( 17.41 € )	4 working days
14.63 € ( 17.41 € )	4 working days
14.63 € ( 17.41 € )	4 working days
14.63 € ( 17.41 € )	4 working days
15.54 € ( 18.49 € )	4 working days
15.54 € ( 18.49 € )	4 working days
10.83 € ( 12.89 € )	4 working days
10.83 € ( 12.89 € )	4 working days
11.59 € ( 13.79 € )	4 working days
11.59 € ( 13.79 € )	4 working days
10.83 € ( 12.89 € )	4 working days
10.83 € ( 12.89 € )	4 working days
11.59 € ( 13.79 € )	4 working days
11.59 € ( 13.79 € )	4 working days
10.83 € ( 12.89 € )	4 working days
10.83 € ( 12.89 € )	4 working days
11.59 € ( 13.79 € )	4 working days
11.59 € ( 13.79 € )	4 working days
10.83 € ( 12.89 € )	4 working days
10.83 € ( 12.89 € )	4 working days
11.59 € ( 13.79 € )	4 working days
11.59 € ( 13.79 € )	4 working days
16.28 € ( 19.37 € )	4 working days
16.28 € ( 19.37 € )	4 working days
17.37 € ( 20.67 € )	4 working days
17.37 € ( 20.67 € )	4 working days
16.28 € ( 19.37 € )	4 working days
16.28 € ( 19.37 € )	4 working days
17.37 € ( 20.67 € )	4 working days
17.37 € ( 20.67 € )	4 working days
16.28 € ( 19.37 € )	4 working days
16.28 € ( 19.37 € )	4 working days
17.37 € ( 20.67 € )	4 working days
17.37 € ( 20.67 € )	4 working days
16.28 € ( 19.37 € )	4 working days
16.28 € ( 19.37 € )	4 working days
17.37 € ( 20.67 € )	4 working days
17.37 € ( 20.67 € )	4 working days

Basic information

Basic information

· Cam levers can be used to clamp workpieces quickly and torque-free

· Advantage: workpiece needs no further securing

· Precise clamping adjustment via a fine thread setscrew

· Application fields: machine and assembly construction, rehabilitation and medical technology

· Steel and stainless steel version

Catalog

Products homepage

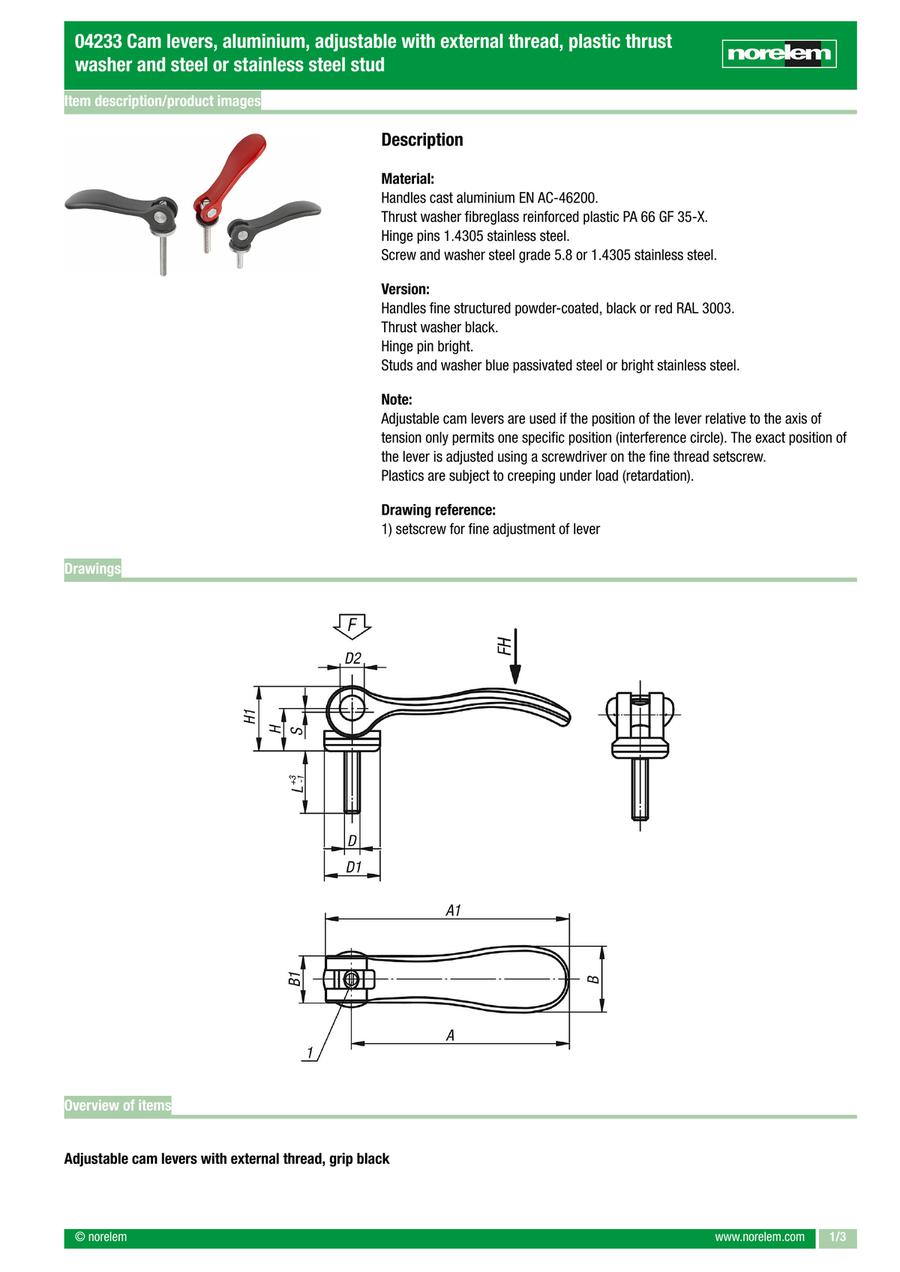

Catalog (2-page spread)
