NORELEM

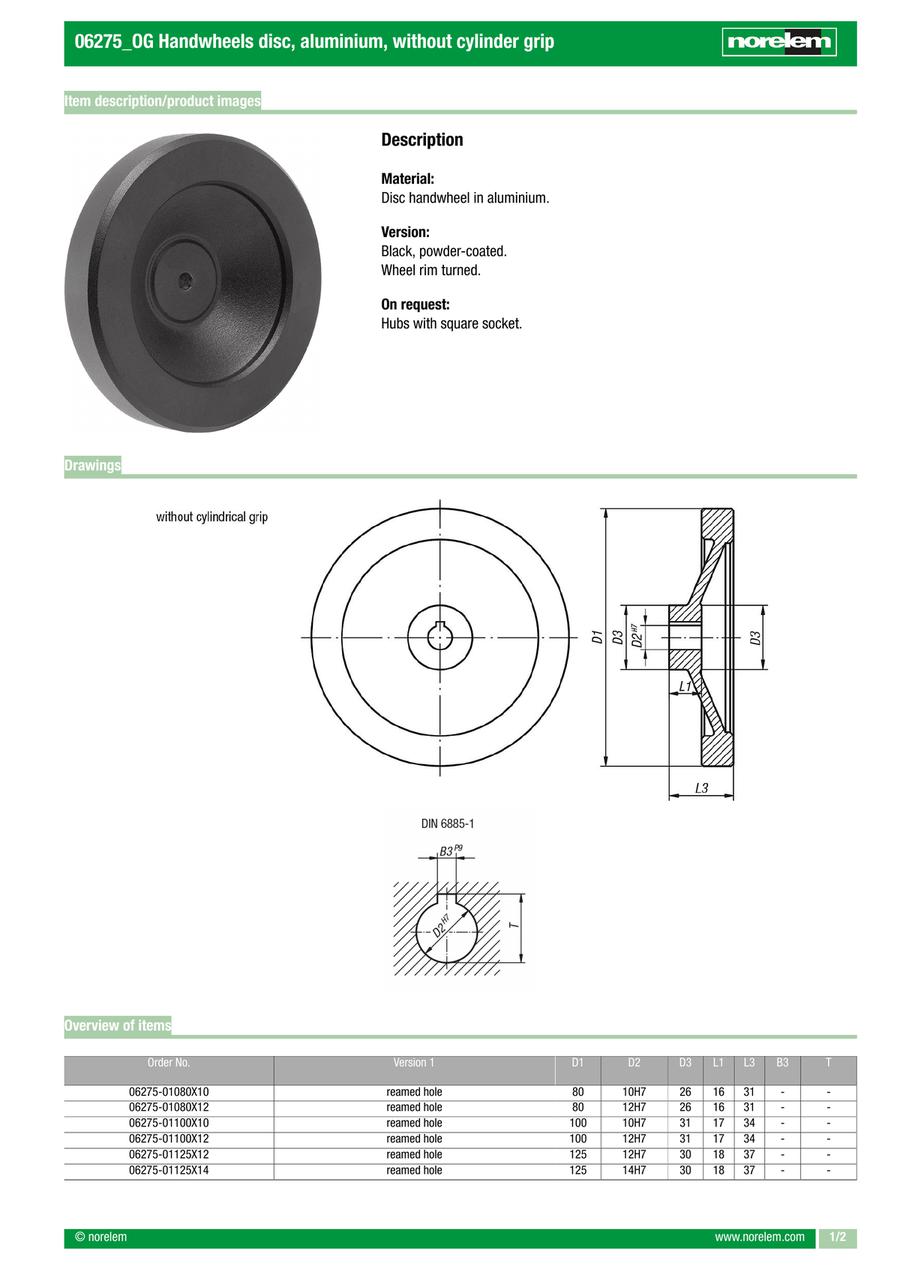

Handwheels disc, aluminium, without cylinder grip, black, powder-coated (06275)

Handwheels disc, aluminium, without cylinder grip, black, powder-coated (06275)

Part number:

Still undefined. 28 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    06275-01080X10
    06275-01080X12
    06275-01100X10
    06275-01100X12
    06275-01125X12
    06275-01125X14
    06275-01140X14
    06275-01140X15
    06275-01160X15
    06275-01160X16
    06275-01200X18
    06275-01200X20
    06275-01250X22
    06275-01250X24
    06275-11080X10
    06275-11080X12
    06275-11100X10
    06275-11100X12
    06275-11125X12
    06275-11125X14
    06275-11140X14
    06275-11140X15
    06275-11160X15
    06275-11160X16
    06275-11200X18
    06275-11200X20
    06275-11250X22
    06275-11250X24

    Outside diameter

    (Ø)

    Version 1

    L1

    (mm)

    L3=height

    (mm)

    D2=Fastening hole

    (mm)

    D3

    (mm)

    B3

    (mm)

    T

    (mm)

    		Minimum order quantity
    80
    Reamed hole
    16
    31
    10H7
    26
    -
    -
    1 pieces
    80
    Reamed hole
    16
    31
    12H7
    26
    -
    -
    1 pieces
    100
    Reamed hole
    17
    34
    10H7
    31
    -
    -
    1 pieces
    100
    Reamed hole
    17
    34
    12H7
    31
    -
    -
    1 pieces
    125
    Reamed hole
    18
    37
    12H7
    30
    -
    -
    1 pieces
    125
    Reamed hole
    18
    37
    14H7
    30
    -
    -
    1 pieces
    140
    Reamed hole
    19
    34
    14H7
    34
    -
    -
    1 pieces
    140
    Reamed hole
    19
    34
    15H7
    34
    -
    -
    1 pieces
    160
    Reamed hole
    20
    40
    15H7
    40
    -
    -
    1 pieces
    160
    Reamed hole
    20
    40
    16H7
    40
    -
    -
    1 pieces
    200
    Reamed hole
    24
    46
    18H7
    50
    -
    -
    1 pieces
    200
    Reamed hole
    24
    46
    20H7
    50
    -
    -
    1 pieces
    250
    Reamed hole
    28
    49
    22H7
    50
    -
    -
    1 pieces
    250
    Reamed hole
    28
    49
    24H7
    50
    -
    -
    1 pieces
    80
    Reamed hole with slot
    16
    31
    10H7
    26
    3
    11.4
    1 pieces
    80
    Reamed hole with slot
    16
    31
    12H7
    26
    4
    13.8
    1 pieces
    100
    Reamed hole with slot
    17
    34
    10H7
    31
    3
    11.4
    1 pieces
    100
    Reamed hole with slot
    17
    34
    12H7
    31
    4
    13.8
    1 pieces
    125
    Reamed hole with slot
    18
    37
    12H7
    30
    4
    13.8
    1 pieces
    125
    Reamed hole with slot
    18
    37
    14H7
    30
    5
    16.3
    1 pieces
    140
    Reamed hole with slot
    19
    34
    14H7
    34
    5
    16.3
    1 pieces
    140
    Reamed hole with slot
    19
    34
    15H7
    34
    5
    17.3
    1 pieces
    160
    Reamed hole with slot
    20
    40
    15H7
    40
    5
    17.3
    1 pieces
    160
    Reamed hole with slot
    20
    40
    16H7
    40
    5
    18.3
    1 pieces
    200
    Reamed hole with slot
    24
    46
    18H7
    50
    6
    20.8
    1 pieces
    200
    Reamed hole with slot
    24
    46
    20H7
    50
    6
    22.8
    1 pieces
    250
    Reamed hole with slot
    28
    49
    22H7
    50
    6
    24.8
    1 pieces
    250
    Reamed hole with slot
    28
    49
    24H7
    50
    8
    27.3
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    12.52 €
    ( 14.90 € )
    4 working days
    12.52 €
    ( 14.90 € )
    4 working days
    14.74 €
    ( 17.54 € )
    4 working days
    14.74 €
    ( 17.54 € )
    4 working days
    18.89 €
    ( 22.48 € )
    4 working days
    18.89 €
    ( 22.48 € )
    4 working days
    22.05 €
    ( 26.24 € )
    4 working days
    22.05 €
    ( 26.24 € )
    4 working days
    30.29 €
    ( 36.05 € )
    4 working days
    30.29 €
    ( 36.05 € )
    4 working days
    38.74 €
    ( 46.10 € )
    4 working days
    38.74 €
    ( 46.10 € )
    4 working days
    69.43 €
    ( 82.62 € )
    4 working days
    69.43 €
    ( 82.62 € )
    4 working days
    14.78 €
    ( 17.59 € )
    4 working days
    14.78 €
    ( 17.59 € )
    4 working days
    17.07 €
    ( 20.31 € )
    4 working days
    17.07 €
    ( 20.31 € )
    4 working days
    21.35 €
    ( 25.41 € )
    4 working days
    21.35 €
    ( 25.41 € )
    4 working days
    24.48 €
    ( 29.13 € )
    4 working days
    24.48 €
    ( 29.13 € )
    4 working days
    32.80 €
    ( 39.03 € )
    4 working days
    32.80 €
    ( 39.03 € )
    4 working days
    41.43 €
    ( 49.30 € )
    4 working days
    41.43 €
    ( 49.30 € )
    4 working days
    72.84 €
    ( 86.68 € )
    4 working days
    72.84 €
    ( 86.68 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Control element for positioning and adjusting shafts and spindles

    · Application sectors: machine, plant, equipment construction and measuring devices

    · For opening, closing and operating valves in fittings, machine tools

    · Wheel rim concentricity and axial run-out less than ISO tolerance (IT) 12
