Indexing plungers, steel or stainless steel, short version with plastic mushroom grip and locknut (03089)

Configure

Body Material
- Steel
- Stainless Steel
Thread(mm)
Travel S(mm)
- 3.5
- 4
- 5
- 6
- 8
- 10
Length L(mm)
- 25.5
- 29.5
- 34.5
- 41.7
- 54
- 61
Steel code
- 1.4034
- 1.4305
Grade
- 5.8
Surface finish body
- Hardened
- Not hardened
Component colour
- Red RAL 3020
- Black grey RAL 7021
Size
- 0
- 1
- 2
- 3
- 4
- 9
D=pin diameter(mm)
- 3
- 4
- 5
- 6
- 8
- 10
D2(mm)
- 14
- 18
- 21
- 25
- 33
Fx30°(mm)
- 0.8
- 1
- 1.3
- 1.8
- 2.3
- 2.8
L1(mm)
- 6
- 8
- 10
- 12
- 15
L2(mm)
- 5
- 6
- 7
- 8
- 10
- 12
SW1(mm)
- 8
- 10
- 13
- 14
- 19
- 22
SW2(mm)
- 10
- 13
- 17
- 19
- 24
- 30
Spring force final pressure F2 approx.(N)
- 10
- 12
- 14
- 28
- 32
Spring force initial pressure F1 approx.(N)
- 4
- 5
- 6
- 14
- 15
Est. shipping days
- All
- Within 4 working days

Indexing plungers, steel or stainless steel, short version with plastic mushroom grip and locknut (03089)

Catalog

Part number:

Still undefined. 24 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Body Material

Thread

(mm)

Travel S

(mm)

Length L

(mm)

Steel code

Grade

Surface finish body

Component colour

Size

D=pin diameter

(mm)

Fx30°

(mm)

SW1

(mm)

SW2

(mm)

Spring force final pressure F2 approx.

(N)

Spring force initial pressure F1 approx.

(N)

Weight (ERP)

(kg)

Minimum order quantity

Stainless Steel	8x1	4	29.5	1.4305	-	Not hardened	Black grey RAL 7021	0	4	18	1	6	6	10	13	12	4	0.0050	1 pieces
Stainless Steel	8x1	4	29.5	1.4305	-	Not hardened	Red RAL 3020	0	4	18	1	6	6	10	13	12	4	0.0080	1 pieces
Stainless Steel	10x1	5	34.5	1.4305	-	Not hardened	Black grey RAL 7021	1	5	21	1.3	8	7	13	17	12	5	0.0080	1 pieces
Stainless Steel	10x1	5	34.5	1.4305	-	Not hardened	Red RAL 3020	1	5	21	1.3	8	7	13	17	12	5	0.0090	1 pieces
Stainless Steel	12x1.5	6	41.7	1.4305	-	Not hardened	Black grey RAL 7021	2	6	25	1.8	10	8	14	19	14	6	0.0150	1 pieces
Stainless Steel	12x1.5	6	41.7	1.4305	-	Not hardened	Red RAL 3020	2	6	25	1.8	10	8	14	19	14	6	0.0150	1 pieces
Stainless Steel	16x1.5	8	54	1.4305	-	Not hardened	Black grey RAL 7021	3	8	33	2.3	12	10	19	24	28	14	0.0170	1 pieces
Stainless Steel	16x1.5	8	54	1.4305	-	Not hardened	Red RAL 3020	3	8	33	2.3	12	10	19	24	28	14	0.0310	1 pieces
Stainless Steel	20x1.5	10	61	1.4305	-	Not hardened	Black grey RAL 7021	4	10	33	2.8	15	12	22	30	32	15	0.0310	1 pieces
Stainless Steel	20x1.5	10	61	1.4305	-	Not hardened	Red RAL 3020	4	10	33	2.8	15	12	22	30	32	15	0.0330	1 pieces
Stainless Steel	6x0.75	3.5	25.5	1.4305	-	Not hardened	Black grey RAL 7021	9	3	14	0.8	6	5	8	10	10	4	0.0040	1 pieces
Stainless Steel	6x0.75	3.5	25.5	1.4305	-	Not hardened	Red RAL 3020	9	3	14	0.8	6	5	8	10	10	4	0.0050	1 pieces
Steel	8x1	4	29.5	1.4034	5.8	Hardened	Black grey RAL 7021	0	4	18	1	6	6	10	13	12	4	0.0080	1 pieces
Steel	8x1	4	29.5	1.4034	5.8	Hardened	Red RAL 3020	0	4	18	1	6	6	10	13	12	4	0.0080	1 pieces
Steel	10x1	5	34.5	1.4034	5.8	Hardened	Black grey RAL 7021	1	5	21	1.3	8	7	13	17	12	5	0.0090	1 pieces
Steel	10x1	5	34.5	1.4034	5.8	Hardened	Red RAL 3020	1	5	21	1.3	8	7	13	17	12	5	0.0150	1 pieces
Steel	12x1.5	6	41.7	1.4034	5.8	Hardened	Black grey RAL 7021	2	6	25	1.8	10	8	14	19	14	6	0.0150	1 pieces
Steel	12x1.5	6	41.7	1.4034	5.8	Hardened	Red RAL 3020	2	6	25	1.8	10	8	14	19	14	6	0.0170	1 pieces
Steel	16x1.5	8	54	1.4034	5.8	Hardened	Black grey RAL 7021	3	8	33	2.3	12	10	19	24	28	14	0.0310	1 pieces
Steel	16x1.5	8	54	1.4034	5.8	Hardened	Red RAL 3020	3	8	33	2.3	12	10	19	24	28	14	0.0310	1 pieces
Steel	20x1.5	10	61	1.4034	5.8	Hardened	Black grey RAL 7021	4	10	33	2.8	15	12	22	30	32	15	0.0330	1 pieces
Steel	20x1.5	10	61	1.4034	5.8	Hardened	Red RAL 3020	4	10	33	2.8	15	12	22	30	32	15	0.0040	1 pieces
Steel	6x0.75	3.5	25.5	1.4034	5.8	Hardened	Black grey RAL 7021	9	3	14	0.8	6	5	8	10	10	4	0.0129	1 pieces
Steel	6x0.75	3.5	25.5	1.4034	5.8	Hardened	Red RAL 3020	9	3	14	0.8	6	5	8	10	10	4	0.0128	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

16.46 € ( 19.59 € )	4 working days
16.46 € ( 19.59 € )	4 working days
15.66 € ( 18.64 € )	4 working days
15.66 € ( 18.64 € )	4 working days
18.56 € ( 22.09 € )	4 working days
18.56 € ( 22.09 € )	4 working days
24.33 € ( 28.95 € )	4 working days
24.33 € ( 28.95 € )	4 working days
40.64 € ( 48.36 € )	4 working days
40.64 € ( 48.36 € )	4 working days
17.24 € ( 20.52 € )	4 working days
17.24 € ( 20.52 € )	4 working days
9.67 € ( 11.51 € )	4 working days
9.67 € ( 11.51 € )	4 working days
9.23 € ( 10.98 € )	4 working days
9.23 € ( 10.98 € )	4 working days
10.17 € ( 12.10 € )	4 working days
10.17 € ( 12.10 € )	4 working days
12.77 € ( 15.20 € )	4 working days
12.77 € ( 15.20 € )	4 working days
19.20 € ( 22.85 € )	4 working days
19.20 € ( 22.85 € )	4 working days
10.14 € ( 12.07 € )	4 working days
10.14 € ( 12.07 € )	4 working days

More Information

Basic information

Basic information

· Indexing plungers facilitate indexing and locking

· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use

· High stability

· Ideal where space is restricted:

· Material: steel or stainless steel

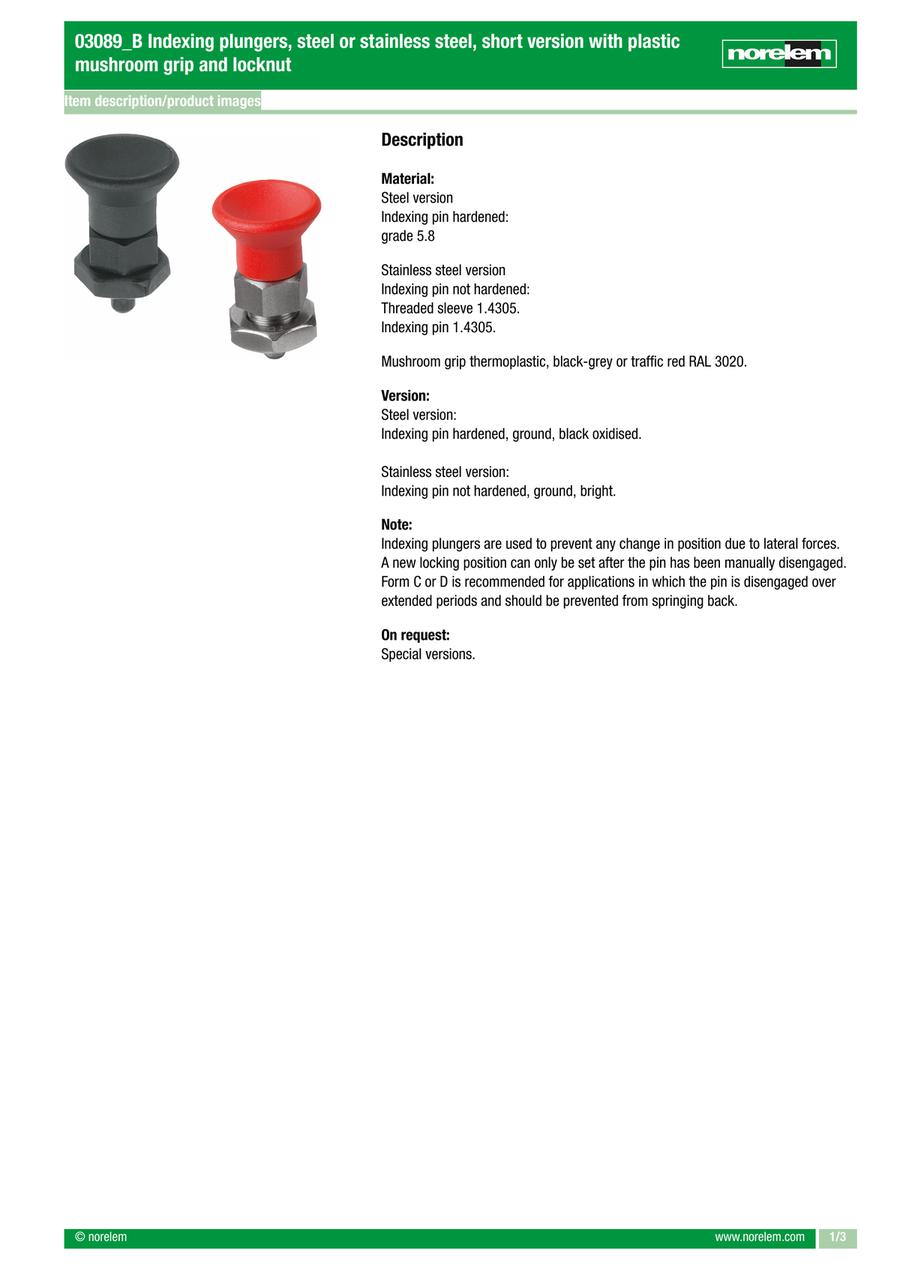

Catalog
