Configure
- Body Material
- Travel S(mm)
- 5
- 6
- 8
- 10
- Length L(mm)
- 43.5
- 51.7
- 68
- 74
- Steel code
- 1.4034
- Grade
- 5.8
- Surface finish body
- Size
- 1
- 2
- 3
- 4
- D=pin diameter(mm)
- 5
- 6
- 8
- 10
- D2(mm)
- 21
- 25
- 33
- D3(mm)
- 8
- 10
- 13.5
- 17
- D4(mm)
- 6
- 8.5
- 11
- Fx30°(mm)
- 1.3
- 1.8
- 2.3
- 2.8
- L1(mm)
- 17
- 20
- 26
- 28
- L2(mm)
- 7
- 8
- 10
- 12
- L3(mm)
- 15
- 17
- 23
- 25
- L4(mm)
- 3
- 4
- SW1(mm)
- 13
- 14
- 19
- 22
- Spring force final pressure F2 approx.(N)
- 12
- 14
- 34
- 35
- Spring force initial pressure F1 approx.(N)
- 5
- 6
- 15
- Est. shipping days
- All
- Within 4 working days

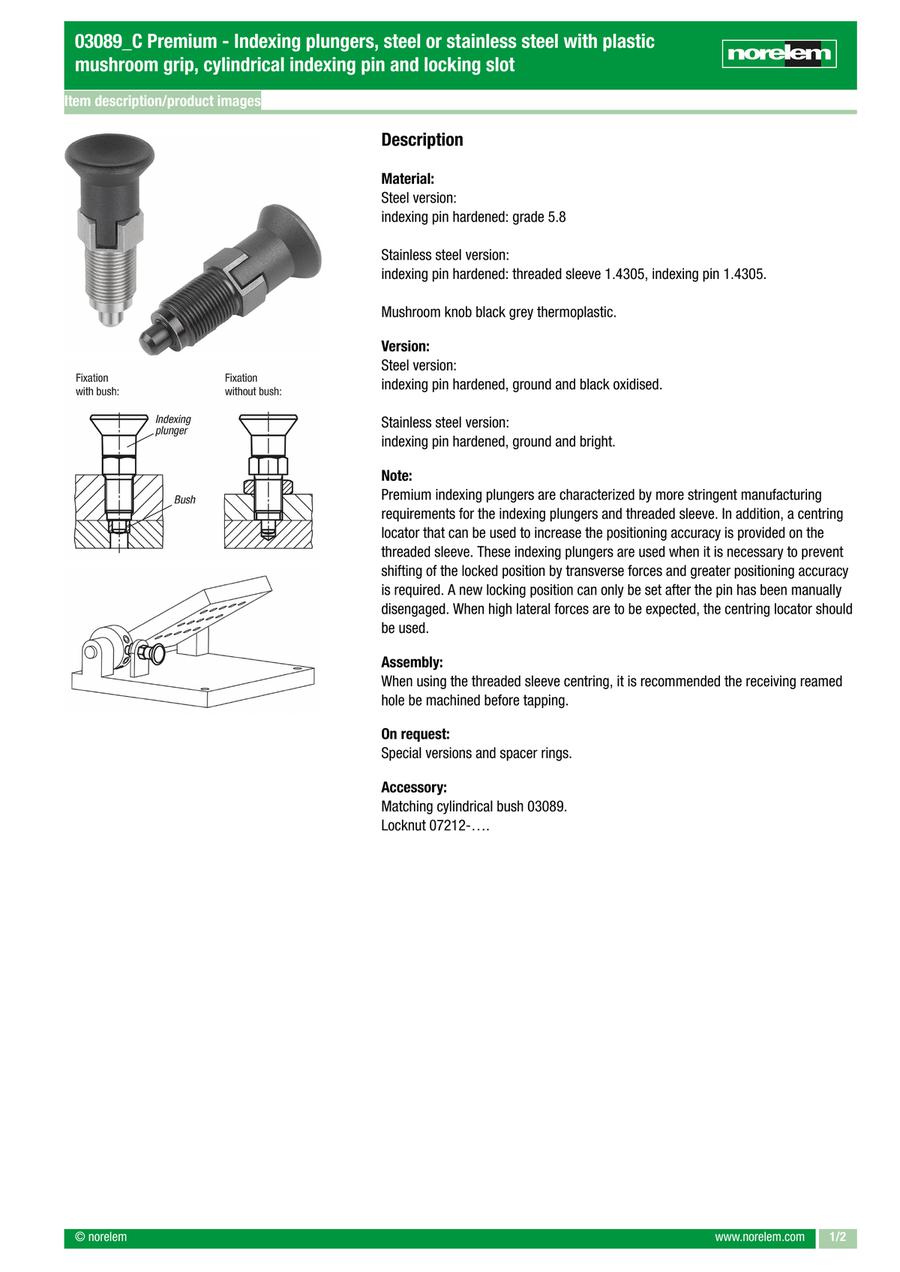

Premium - Indexing plungers, steel or stainless steel with plastic mushroom grip, cylindrical indexing pin and locking slot (03089)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
35.12 € ( 41.79 € ) | 4 working days |
38.72 € ( 46.08 € ) | 4 working days |
47.71 € ( 56.77 € ) | 4 working days |
62.79 € ( 74.72 € ) | 4 working days |
24.15 € ( 28.74 € ) | 4 working days |
26.57 € ( 31.62 € ) | 4 working days |
33.58 € ( 39.96 € ) | 4 working days |
43.99 € ( 52.35 € ) | 4 working days |
More Information
Basic information
· Higher processing requirements
· Centring on the threaded sleeve for positioning accuracy
· Indexing plungers facilitate indexing and locking
· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use
· High stability
· Material: steel or stainless steel
