NORELEM

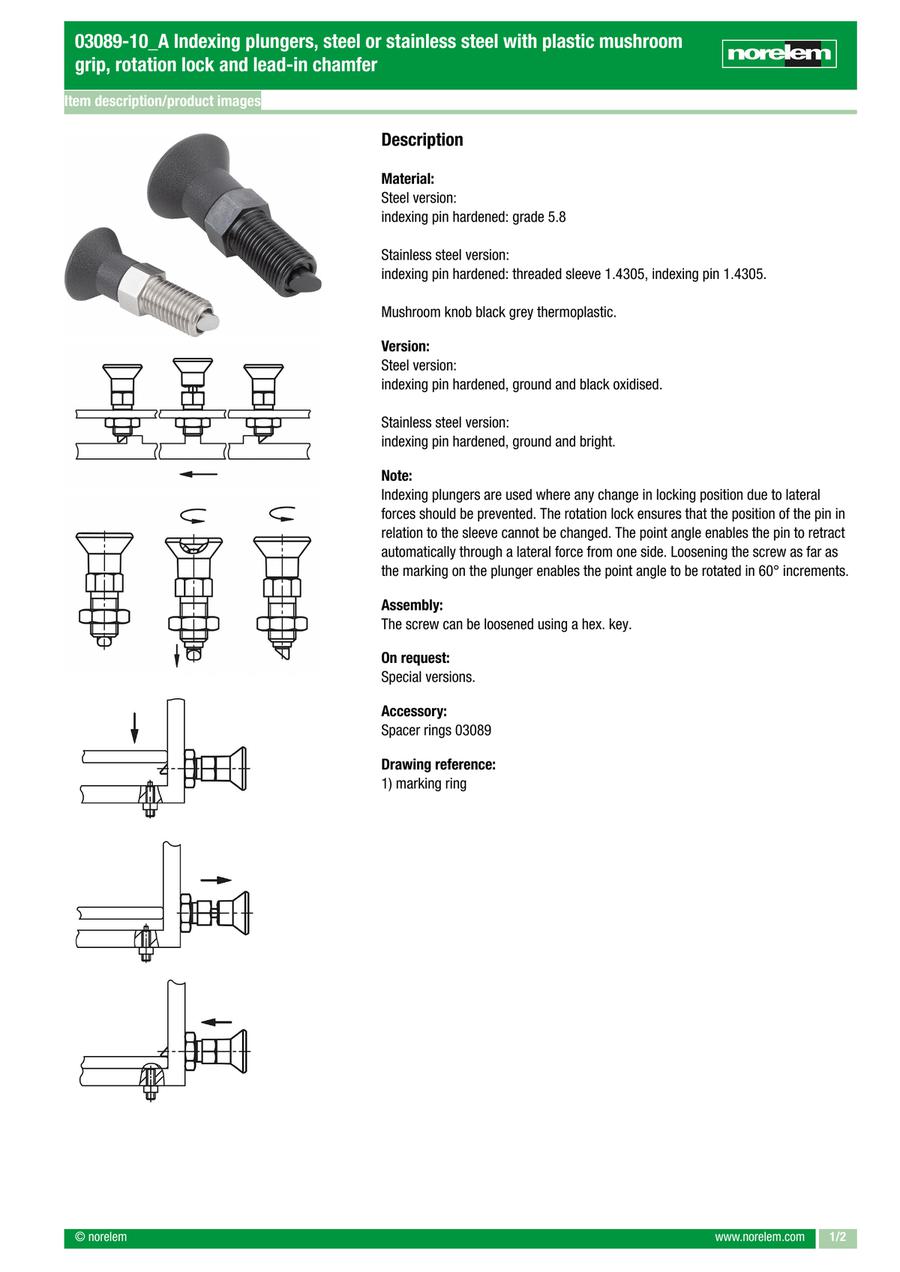

Indexing plungers, steel or stainless steel with plastic mushroom grip, rotation lock and lead-in chamfer (03089-10)

Indexing plungers, steel or stainless steel with plastic mushroom grip, rotation lock and lead-in chamfer (03089-10)

Part number:

Still undefined. 8 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    03089-10-012060
    03089-10-012061
    03089-10-013080
    03089-10-013081
    03089-10-12060
    03089-10-12061
    03089-10-13080
    03089-10-13081

    Body Material

    Thread

    (mm)

    Travel S

    (mm)

    Steel code

    Grade

    Main colour

    Size

    D=locking pin diameter

    (mm)

    D2

    (mm)

    L

    (mm)

    L1

    (mm)

    L2

    (mm)

    L3

    (mm)

    SW1

    (mm)

    Spring force final pressure F2 approx.

    (N)

    Spring force initial pressure F1 approx.

    (N)

    Weight (ERP)

    (kg)

    		Minimum order quantity
    Stainless Steel
    12
    4
    1.4034
    -
    Bright
    2
    6
    25
    49.7
    20
    8
    17
    14
    14
    8
    0.0239
    1 pieces
    Stainless Steel
    12x1.5
    4
    1.4034
    -
    Bright
    2
    6
    25
    49.7
    20
    8
    17
    14
    14
    8
    0.0237
    1 pieces
    Stainless Steel
    16
    6
    1.4034
    -
    Bright
    3
    8
    33
    66
    26
    10
    23
    19
    35
    20
    0.0360
    1 pieces
    Stainless Steel
    16x1.5
    6
    1.4034
    -
    Bright
    3
    8
    33
    66
    26
    10
    23
    19
    35
    20
    0.0359
    1 pieces
    Steel
    12
    4
    -
    5.8
    Black oxidised
    2
    6
    25
    49.7
    20
    8
    17
    14
    14
    8
    0.0847
    1 pieces
    Steel
    12x1.5
    4
    -
    5.8
    Black oxidised
    2
    6
    25
    49.7
    20
    8
    17
    14
    14
    8
    0.0842
    1 pieces
    Steel
    16
    6
    -
    5.8
    Black oxidised
    3
    8
    33
    66
    26
    10
    23
    19
    35
    20
    0.1546
    1 pieces
    Steel
    16x1.5
    6
    -
    5.8
    Black oxidised
    3
    8
    33
    66
    26
    10
    23
    19
    35
    20
    0.1436
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    22.56 €
    ( 26.85 € )
    4 working days
    22.56 €
    ( 26.85 € )
    4 working days
    29.93 €
    ( 35.62 € )
    4 working days
    29.93 €
    ( 35.62 € )
    4 working days
    13.04 €
    ( 15.52 € )
    4 working days
    13.04 €
    ( 15.52 € )
    4 working days
    16.78 €
    ( 19.97 € )
    4 working days
    16.78 €
    ( 19.97 € )
    4 working days
  • 1

    • More Information

    Basic information

    · Indexing plungers facilitate indexing and locking

    · Application sectors: machine, instrument and fixture construction, measuring technology, domestic use
