Configure
- Body Material
- Travel S(mm)
- 5
- 6
- 8
- 10
- Length L(mm)
- 47
- 56
- 74
- 80
- Steel code
- 1.4034
- 1.4305
- Grade
- 5.8
- Surface finish body
- Size
- 1
- 2
- 3
- 4
- D=pin diameter(mm)
- 5
- 6
- 8
- 10
- D2(mm)
- 21
- 25
- 33
- Fx30°(mm)
- 1.3
- 1.8
- 2.3
- 2.8
- L1(mm)
- 17
- 20
- 26
- 28
- L2(mm)
- 7
- 8
- 10
- 12
- L3(mm)
- 15
- 17
- 23
- 25
- SW1(mm)
- 13
- 14
- 19
- 22
- SW2(mm)
- 17
- 19
- 24
- 30
- Spring force final pressure F2 approx.(N)
- 12
- 14
- 34
- 35
- Spring force initial pressure F1 approx.(N)
- 5
- 6
- 15
- Est. shipping days
- All
- Within 4 working days

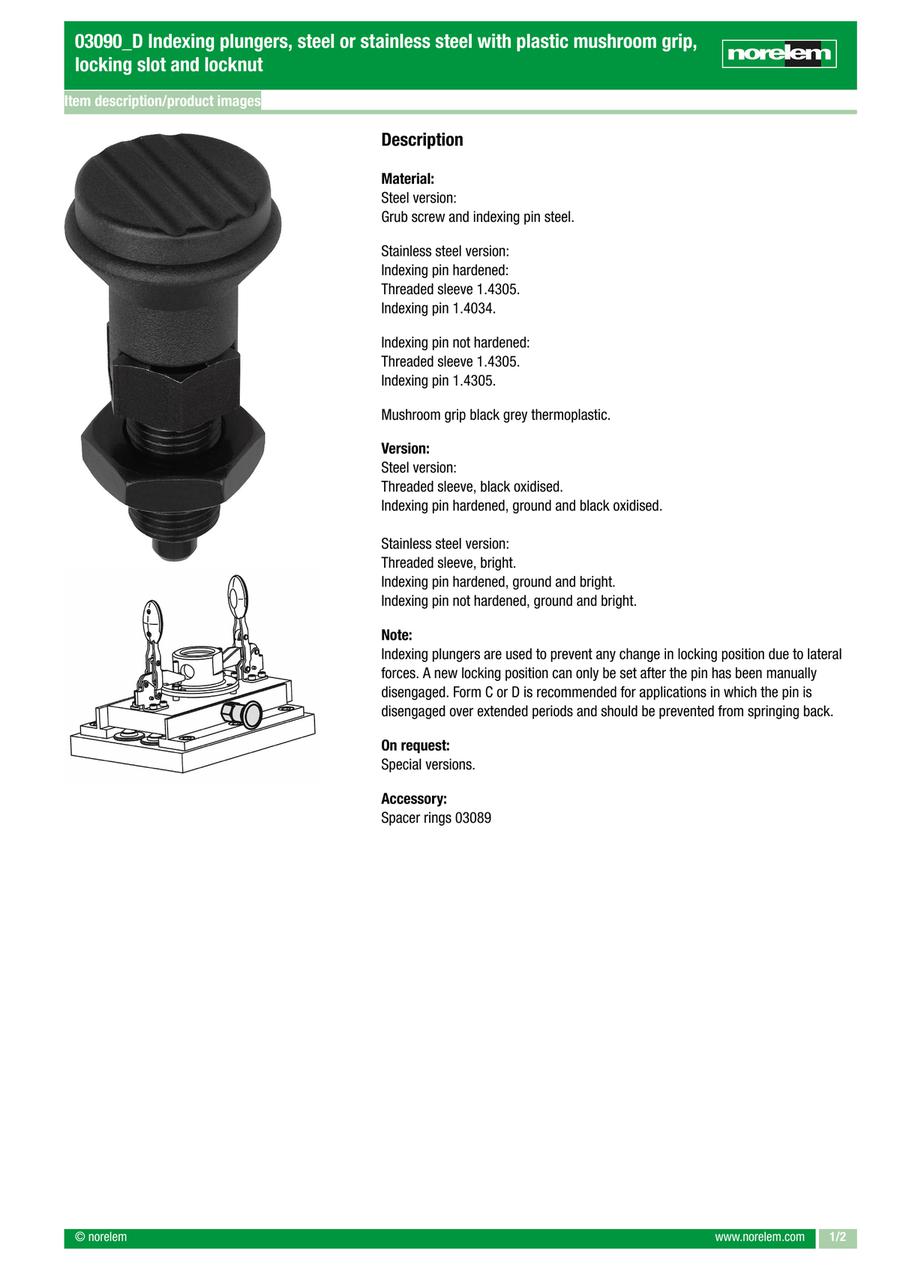

Indexing plungers, steel or stainless steel with plastic mushroom grip, locking slot and locknut (03090)
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
18.74 € ( 22.30 € ) | 4 working days |
22.09 € ( 26.29 € ) | 4 working days |
28.54 € ( 33.96 € ) | 4 working days |
30.61 € ( 36.43 € ) | 4 working days |
17.77 € ( 21.15 € ) | 4 working days |
20.92 € ( 24.89 € ) | 4 working days |
27.24 € ( 32.42 € ) | 4 working days |
29.12 € ( 34.65 € ) | 4 working days |
12.31 € ( 14.65 € ) | 4 working days |
13.69 € ( 16.29 € ) | 4 working days |
15.80 € ( 18.80 € ) | 4 working days |
15.99 € ( 19.03 € ) | 4 working days |
More Information
Basic information
· Indexing plungers facilitate indexing and locking
· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use
· High stability
· Material: steel or stainless steel
