Indexing plungers, steel or stainless steel, without collar, with plastic mushroom grip and extended indexing pin (03093)

Configure

Body Material
- Steel
- Stainless Steel
Thread(mm)
Travel S(mm)
- 5
- 6
- 8
- 9
- 12
- 15
- 18
- 24
Length L(mm)
- 33
- 40.5
- 46.5
- 54.7
- 72
- 79
- 84
- 104
Steel code
- 1.4034
- 1.4305
Grade
- 5.8
Surface finish body
- Hardened
- Not hardened
Size
- 0
- 1
- 2
- 3
- 4
- 5
- 9
D=pin diameter(mm)
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 16
D2(mm)
- 14
- 18
- 21
- 25
- 33
- 40
Fx30°(mm)
- 0.8
- 1
- 1.3
- 1.8
- 2.3
- 2.8
- 3.2
L1(mm)
- 17
- 21
- 24
- 28
- 36
- 40
- 42
- 50
L2(mm)
- 11
- 13.5
- 14.5
- 17.7
- 24
- 30
Order No. screw-in washer
Spring force final pressure F2 approx.(N)
- 12
- 15
- 16
- 18
- 43
- 45
- 51
- 60
Spring force initial pressure F1 approx.(N)
- 4.5
- 5
- 6
- 15
- 20
Est. shipping days
- All
- Within 4 working days

Indexing plungers, steel or stainless steel, without collar, with plastic mushroom grip and extended indexing pin (03093)

Catalog

Part number:

Still undefined. 24 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Body Material

Thread

(mm)

Travel S

(mm)

Length L

(mm)

Steel code

Grade

Surface finish body

Size

D=pin diameter

(mm)

Fx30°

(mm)

Order No. screw-in washer

Spring force final pressure F2 approx.

(N)

Spring force initial pressure F1 approx.

(N)

Minimum order quantity

Stainless Steel	8x1	6	40.5	1.4034	-	Hardened	0	4	18	1	21	13.5	03094-90	15	6	1 pieces
Stainless Steel	10x1	8	46.5	1.4034	-	Hardened	1	5	21	1.3	24	14.5	03094-91	16	5	1 pieces
Stainless Steel	12x1.5	9	54.7	1.4034	-	Hardened	2	6	25	1.8	28	17.7	03094-92	18	6	1 pieces
Stainless Steel	16x1.5	12	72	1.4034	-	Hardened	3	8	33	2.3	36	24	03094-93	45	15	1 pieces
Stainless Steel	20x1.5	15	79	1.4034	-	Hardened	4	10	33	2.8	40	24	03094-94	43	15	1 pieces
Stainless Steel	20x1.5	18	84	1.4034	-	Hardened	4	12	33	2.8	42	24	03094-94	51	15	1 pieces
Stainless Steel	24x2	24	104	1.4034	-	Hardened	5	16	40	3.2	50	30	03094-95	60	20	1 pieces
Stainless Steel	6x0.75	5	33	1.4034	-	Hardened	9	3	14	0.8	17	11	03094-99	12	4.5	1 pieces
Steel	8x1	6	40.5	-	5.8	Hardened	0	4	18	1	21	13.5	03094-90	15	6	1 pieces
Stainless Steel	8x1	6	40.5	1.4305	-	Not hardened	0	4	18	1	21	13.5	03094-90	15	6	1 pieces
Steel	10x1	8	46.5	-	5.8	Hardened	1	5	21	1.3	24	14.5	03094-91	16	5	1 pieces
Stainless Steel	10x1	8	46.5	1.4305	-	Not hardened	1	5	21	1.3	24	14.5	03094-91	16	5	1 pieces
Stainless Steel	12x1.5	9	54.7	1.4305	-	Not hardened	2	6	25	1.8	28	17.7	03094-92	18	6	1 pieces
Stainless Steel	16x1.5	12	72	1.4305	-	Not hardened	3	8	33	2.3	36	24	03094-93	45	15	1 pieces
Stainless Steel	20x1.5	15	79	1.4305	-	Not hardened	4	10	33	2.8	40	24	03094-94	43	15	1 pieces
Stainless Steel	20x1.5	18	84	1.4305	-	Not hardened	4	12	33	2.8	42	24	03094-94	51	15	1 pieces
Stainless Steel	24x2	24	104	1.4305	-	Not hardened	5	16	40	3.2	50	30	03094-95	60	20	1 pieces
Stainless Steel	6x0.75	5	33	1.4305	-	Not hardened	9	3	14	0.8	17	11	03094-99	12	4.5	1 pieces
Steel	12x1.5	9	54.7	-	5.8	Hardened	2	6	25	1.8	28	17.7	03094-92	18	6	1 pieces
Steel	16x1.5	12	72	-	5.8	Hardened	3	8	33	2.3	36	24	03094-93	45	15	1 pieces
Steel	20x1.5	15	79	-	5.8	Hardened	4	10	33	2.8	40	24	03094-94	43	15	1 pieces
Steel	20x1.5	18	84	-	5.8	Hardened	4	12	33	2.8	42	24	03094-94	51	15	1 pieces
Steel	24x2	24	104	-	5.8	Hardened	5	16	40	3.2	50	30	03094-95	60	20	1 pieces
Steel	6x0.75	5	33	-	5.8	Hardened	9	3	14	0.8	17	11	03094-99	12	4.5	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

12.90 € ( 15.35 € )	4 working days
12.31 € ( 14.65 € )	4 working days
13.68 € ( 16.28 € )	4 working days
16.23 € ( 19.31 € )	4 working days
24.48 € ( 29.13 € )	4 working days
26.95 € ( 32.07 € )	4 working days
30.62 € ( 36.44 € )	4 working days
13.54 € ( 16.11 € )	4 working days
7.63 € ( 9.08 € )	4 working days
12.90 € ( 15.35 € )	4 working days
7.23 € ( 8.60 € )	4 working days
12.31 € ( 14.65 € )	4 working days
13.68 € ( 16.28 € )	4 working days
16.23 € ( 19.31 € )	4 working days
24.48 € ( 29.13 € )	4 working days
26.95 € ( 32.07 € )	4 working days
30.62 € ( 36.44 € )	4 working days
13.54 € ( 16.11 € )	4 working days
7.82 € ( 9.31 € )	4 working days
9.12 € ( 10.85 € )	4 working days
13.55 € ( 16.12 € )	4 working days
14.92 € ( 17.75 € )	4 working days
16.93 € ( 20.15 € )	4 working days
8.00 € ( 9.52 € )	4 working days

More Information

Basic information

Basic information

· Indexing plungers facilitate indexing and locking

· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use

· High stability

· Material: steel or stainless steel

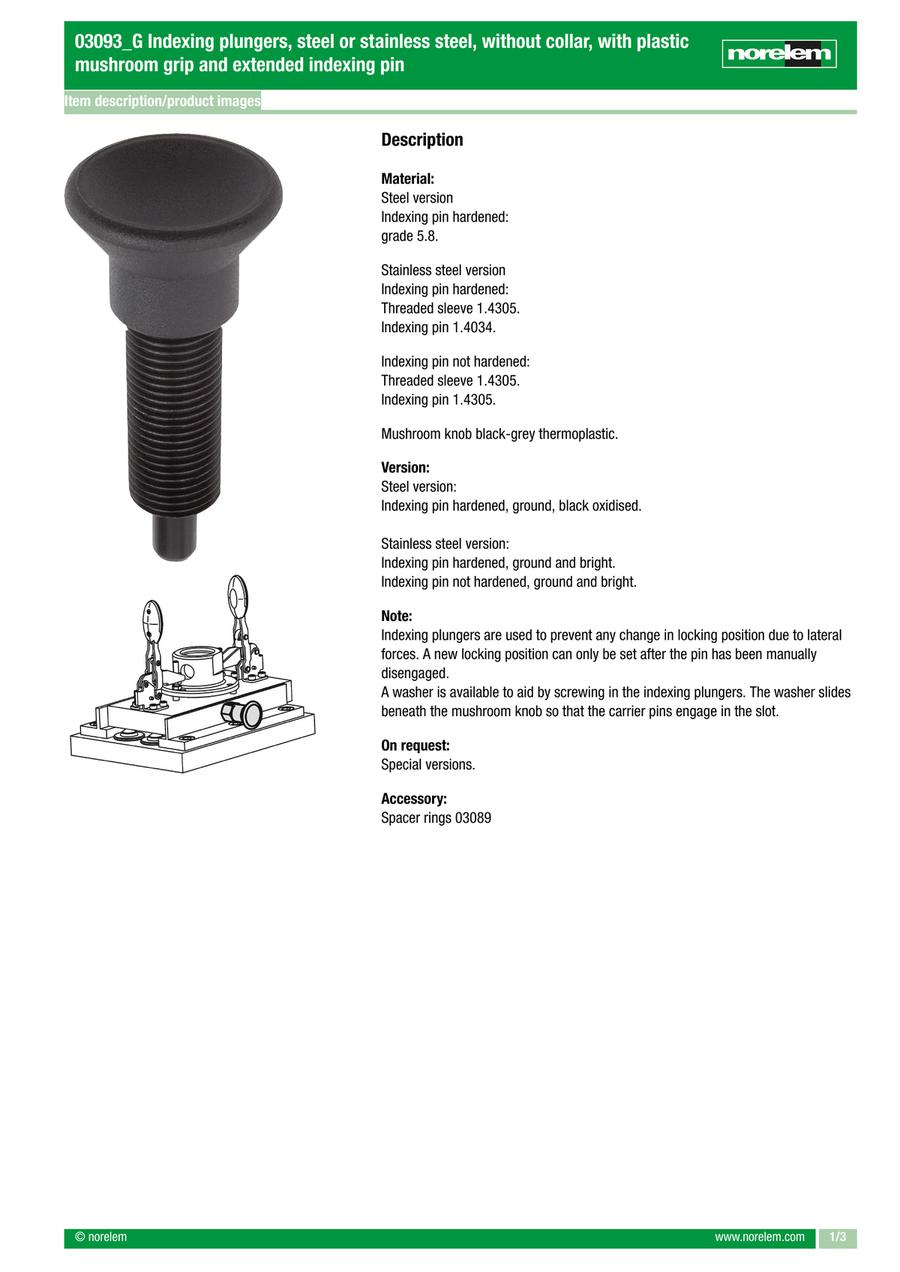

Catalog
